This machine has auto stop machine when reach meter, break wire protection, wire jumbling protection.

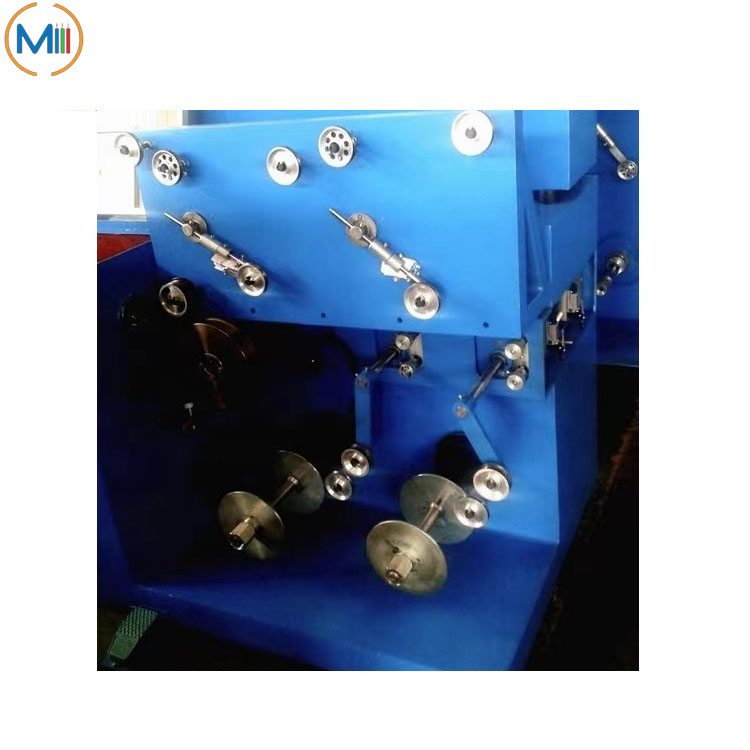

The coiling motor is equipped with a inverter separately, which swings up and down through the tension bar and feeds back the signal to the precise resistance.
Main feature:
1) Outlet wire size: 0.1-0.2mm
2) Max speed: 700m/min
3) Full immersion Lubrication type
1. Application:

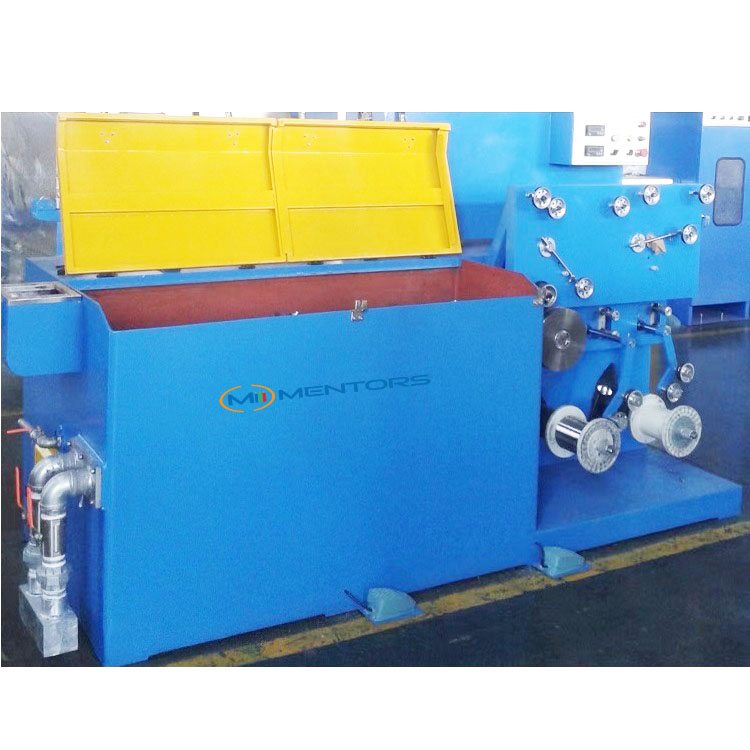

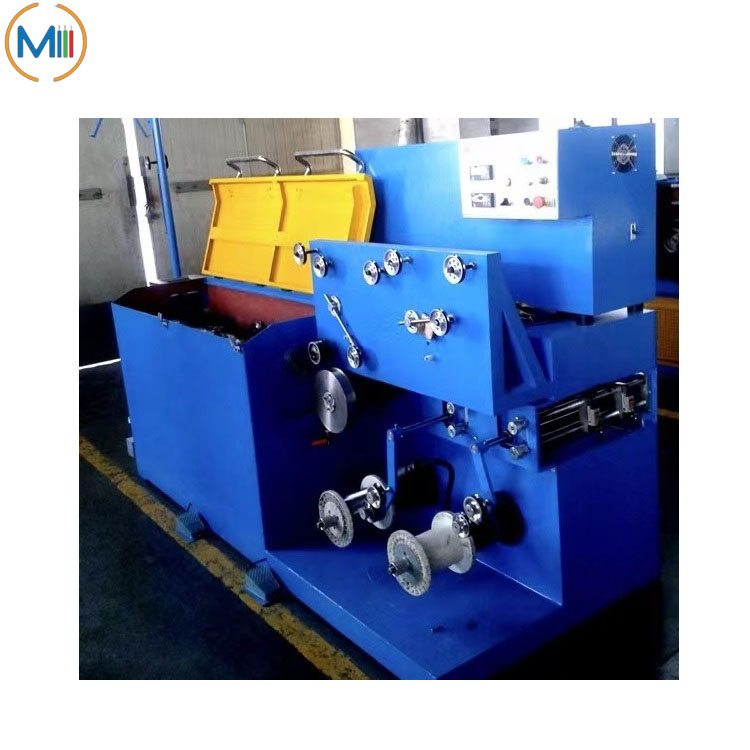

Wire Drawing Machine For Steel Wire is used for drawing low carbon wire from 0.7mm to 0.1~0.2mm.
2.Parameters:
| Machine type | SY-B24/2 |
| Drawing wire No. | 2 wires |
| Inlet dia. | 0.7-0.78mm |
| Outlet dia. | 0.1-0.2mm |
| Max.drawing speed | 700m/min |
| Lubrication type | Full immersion |
| Take-up bobbin | Plastic spool |
| Dimension | 2500*1300*1750 |
| Weight | 1700KG |
3.Advantages:
1.Bigger bending radius, easy to threading and winding.
2.Tungsten carbide coated with high hardness, wearable and low noise.
3.Easy to operate, save time and with high efficiency.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
