1. Application:

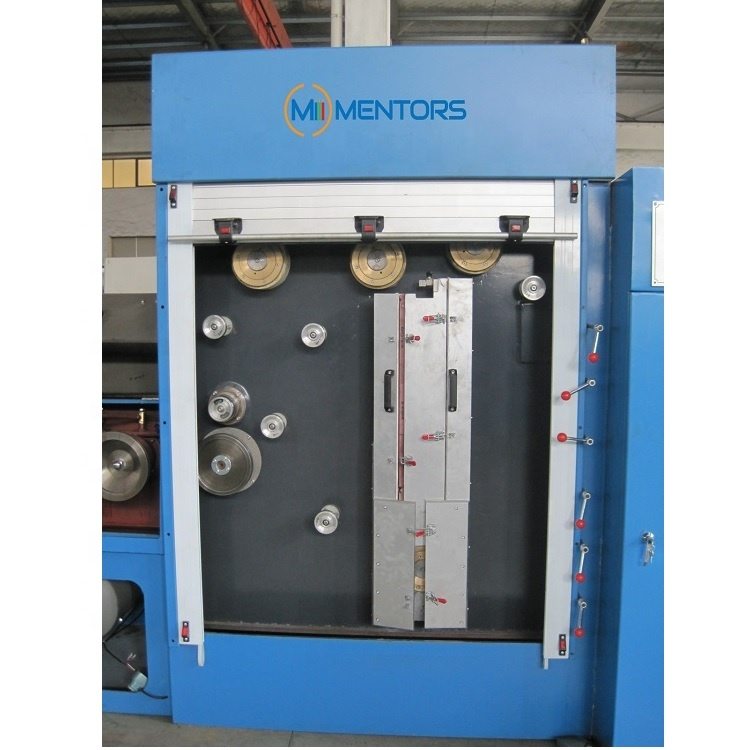

Wire Drawing Machine copper is special used for drawing and annealing copper wire to 0.30-0.70 mm.
Finished wire is wound by 300 or 400 steel bobbin.
2.Parameters:
| Machine type | SY-DT17/B |

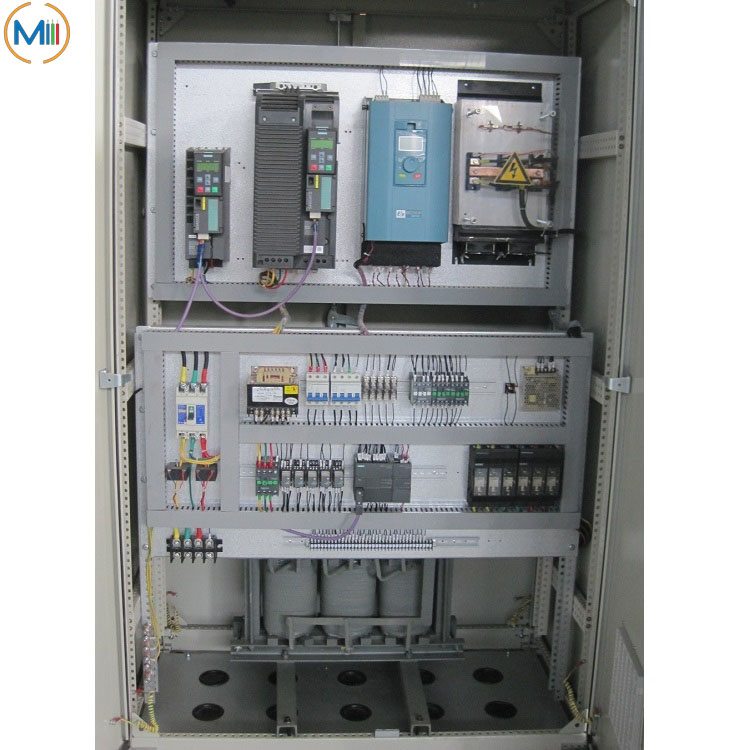

| Inverter control | Dual inverter control |
| Main machine structure | Four cones in horizontal |
| Max. Drawing dies No. | 17 |
| Inlet diameter | Ø 1.0-2.0 mm |
| Out diameter | Ø 0.30- 0.70 mm |
| Drawing line speed | 1800mpm/max |
| Slip ratio of machine | 15% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 18.5-22 kw |
| Spooler motor | 5.5 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 600 A |
| Protection type | Steam |
| Spool bobbin size | Ø 300 mm |
| Transmission type | By belts |
| Spooler control | PID Synchronous spooler |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
| Lubrication type | Full immersion |
| Brake | Magnetic brake |
| Power source | 380 v 50 HZ or others |
3.Advantages:
1. Double drivers ensure precisely tension and minimum ratio of the wire.
2. Easy string-up and maintenance operations.
3. Energy saving and excellent wire surface quality.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
