Wire and Cable Making Machine
The machine is used for insulating cable cores with PVC, PE, PP, Flame retardant polyolefin, and other thermoplastics which are applicated to solar cables.
0086-13962242532
sunman@mentorsmachinery.com
The machine is used for insulating cable cores with PVC, PE, PP, Flame retardant polyolefin, and other thermoplastics which are applicated to solar cables.
1. Application:
The machine is used for insulating cable cores with PVC, PE, PP, Flame retardant polyolefin, and other thermoplastics which are applicated to solar cables.
Due to the halogen-free & cross-linked jacket material, the cable can also be installed in dry and humid conditions indoors.
2. Parameters:
Model | SY-120 |
Screw Dia | 120mm |
Screw L/D ratio | 25:1 |
Screw rotation speed | 80rpm |
Cable core diameter | 20-60mm |
Diameter after extrusion | 25-70mm |
Line speed | 5-70mlmin (Depending on wire diameter) |
Extruding capacity(PVC) | 40-480kg/h |
Main motor | 132kw |
Caterpillar motor | 11kw |
Cooling water trough length | 20+2m (Movable travel 0.8m) |
Pay off drum size | PN1250-PN2500 |
Take up drum size | PN1250-PN2500 |
3. Main equipment composition:

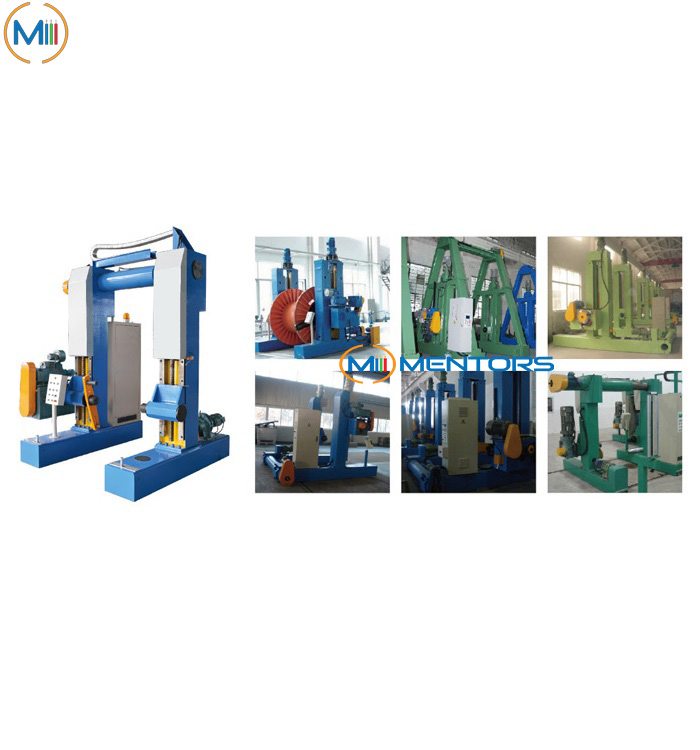

1. Portal pay-off
2. Box wire guide
3. Tensioning device

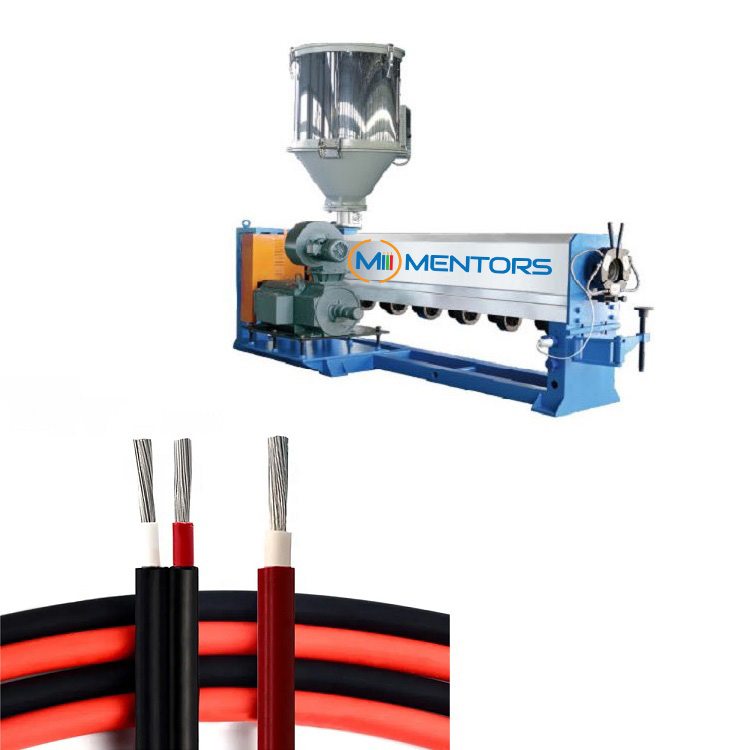

4. 120 Main Extruder
5. Cooling water trough
6. Drier

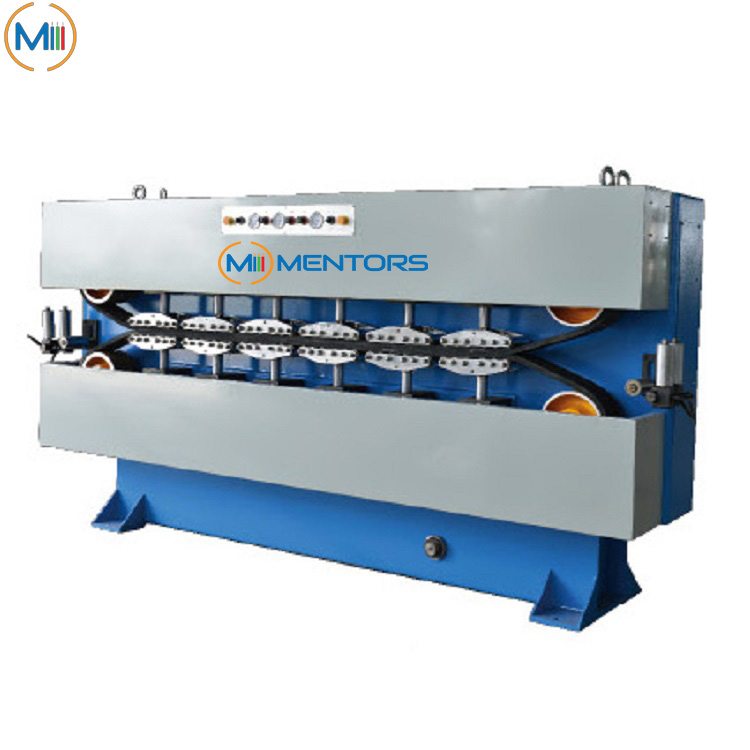

7. Caterpillar
8. Portal take-up

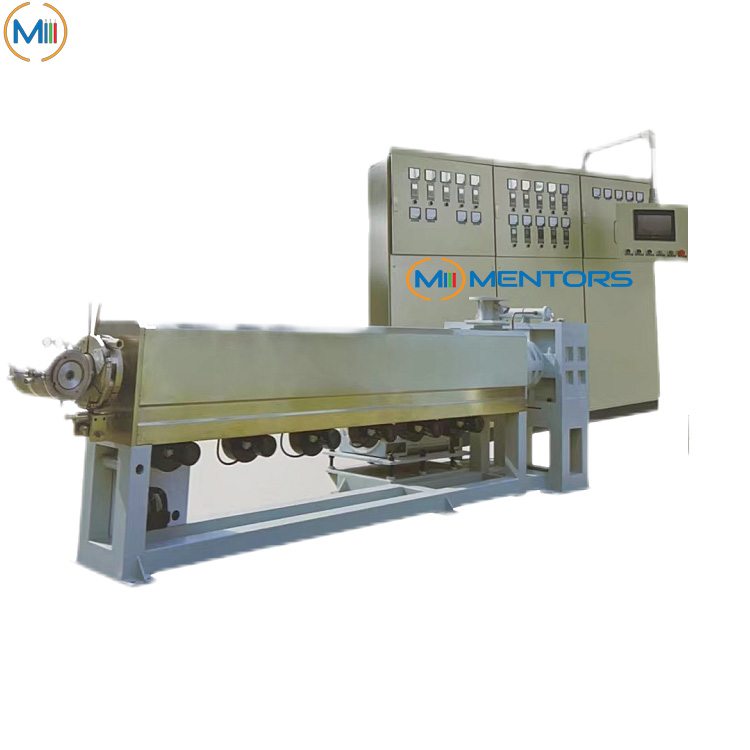

9. Electrical control system
4. Advantages:
1. The machine can be configured according to different process requirements, flexible combination, and is easy to use.
2. Portal-type take-up and pay-off frame, easy to operate.
3. The large sheath unit adopts front and rear double traction, equipped with a constant tension synchronous control circuit to ensure that the cable will not be scratched in the water trough.
4. The production line is controlled by PLC programmable controller, with stable and reliable performance.
