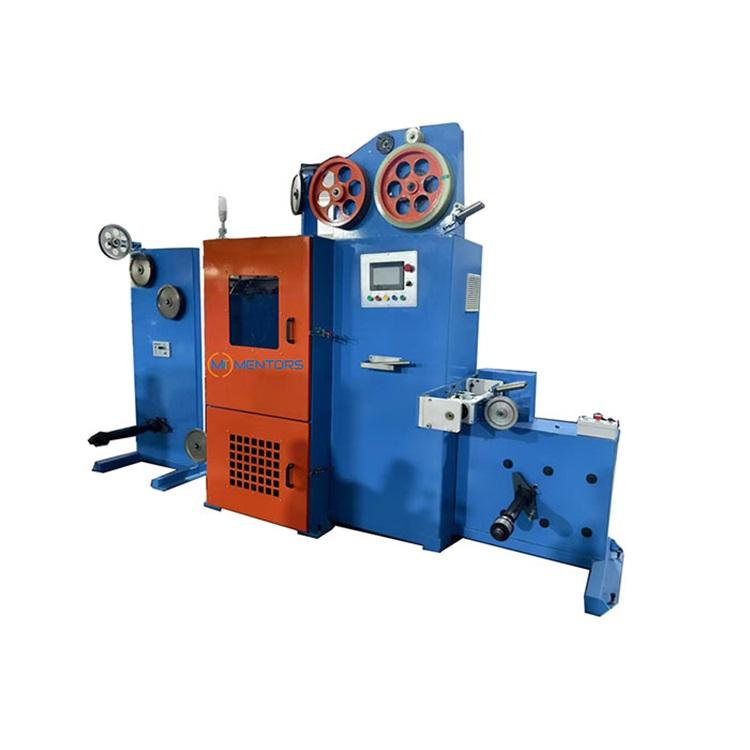

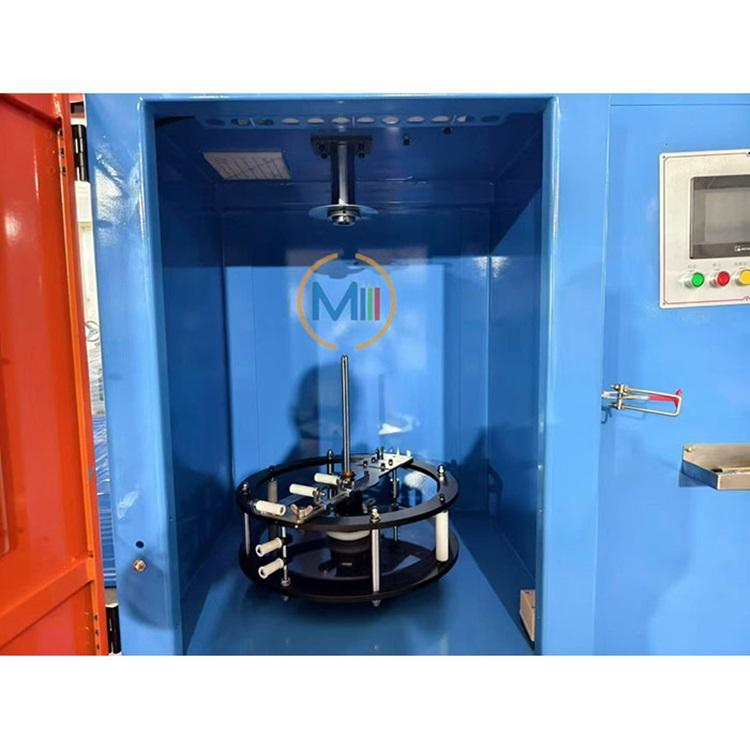

Vertical Single Layer Taping Machine
Vertical Single Layer Taping Machine is suitable for mica tape, alumoflex tape, PET and fluoroplastic tape or other materials to be wrapped in a single layer on the conductor or insulating core wire.
Description
1.Application:
The equipment is suitable for mica tape, alumoflex tape, PET and fluoroplastic tape or other materials to be wrapped in a single layer on the conductor or insulating core wire.
2.Parameters:
| Inlet diameter | Φ0.5-2.8mm single copper wire,
Φ1.0-5.0mm stranded copper wire |
| Outlet diameter | Φ0.6-3.0mm single copper wire,
Φ1.5-6.0mm stranded copper wire |

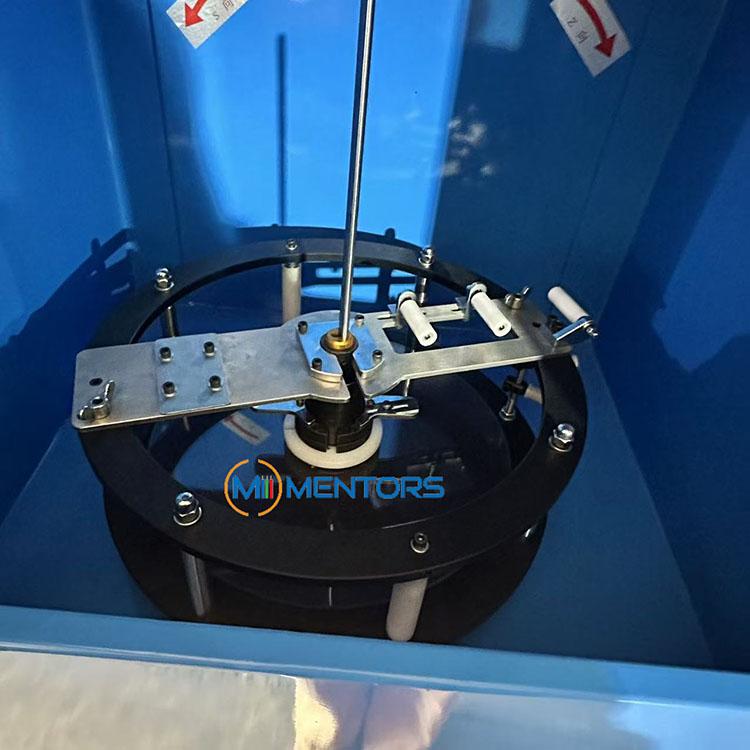

| Mica tape shaft size | outer diameter 400, height 50,
center hole 3 “(76.2mm) |
| Taping width | 5-20mm |
| Taping thickness | 0.02-0.20mm |
| Taping tray speed | idling maximum 2500RPM,
load maximum 2100RPM |
| Line speed | 3-50m/min |
| Taping pitch | 5-25mm |
| Taping direction | S, Z direction can be set freely on the touch screen |
| Center height | standard 1000mm(customized) |
| Bobbin size | pay-off : Φ400-630, take-up: Φ400-630 |
| Power supply | 380-400V 50Hz |
3.Advantages:
1) Tension is automatically tracked by PLC, no manual adjustment is required, and the tension is stable and accurate.
2) Wire crossing guide wheel use plastic steel instead of the traditional pendulum rod, the roller rotation is flexible, the surface is smooth, greatly reducing the damage to the tape and the impact of the tape tension during the line process.

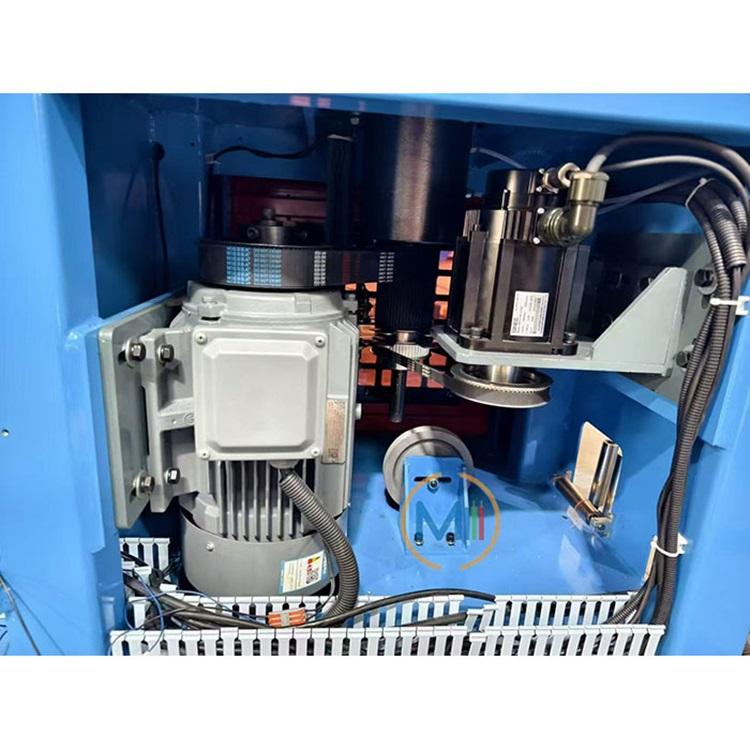

3)The main shaft of the Taping Machine is made of 40Cr material, which is solid and wear-resistant after grinding and high-frequency tempering treatment.It does not deform under high speed operation and heavy pressure.
