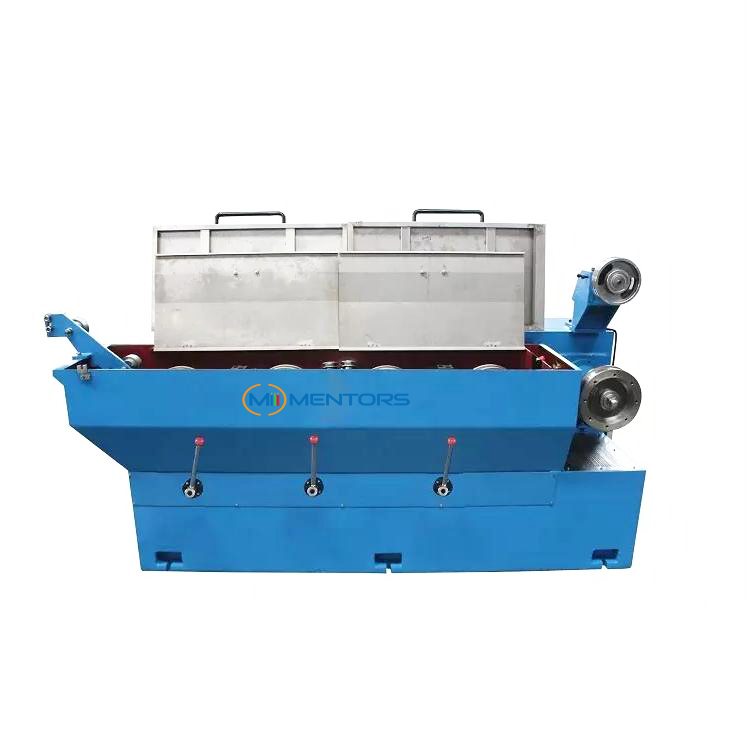

This machine is used for drawing and annealing two copper wires from 2.5-.3.5mm to 0.4-1.0mm.

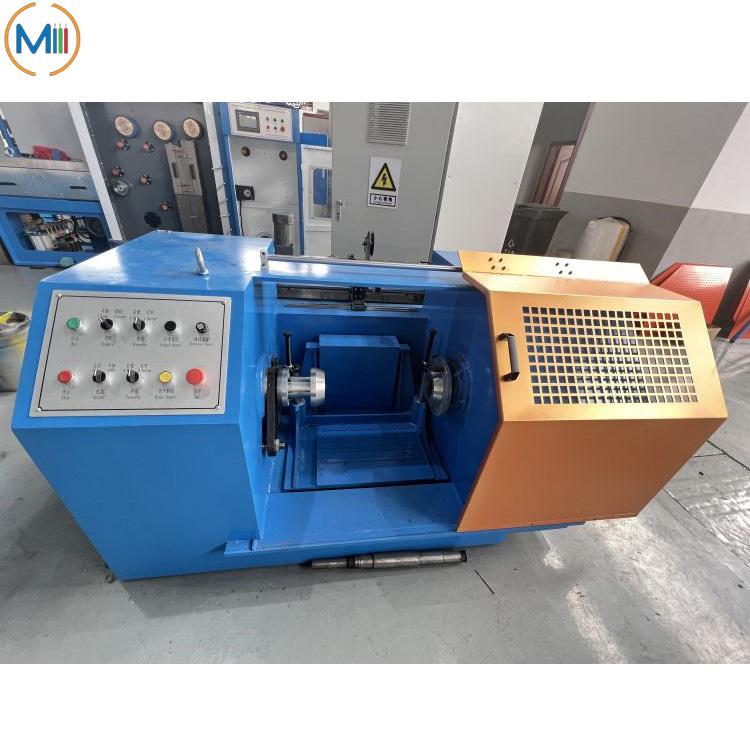

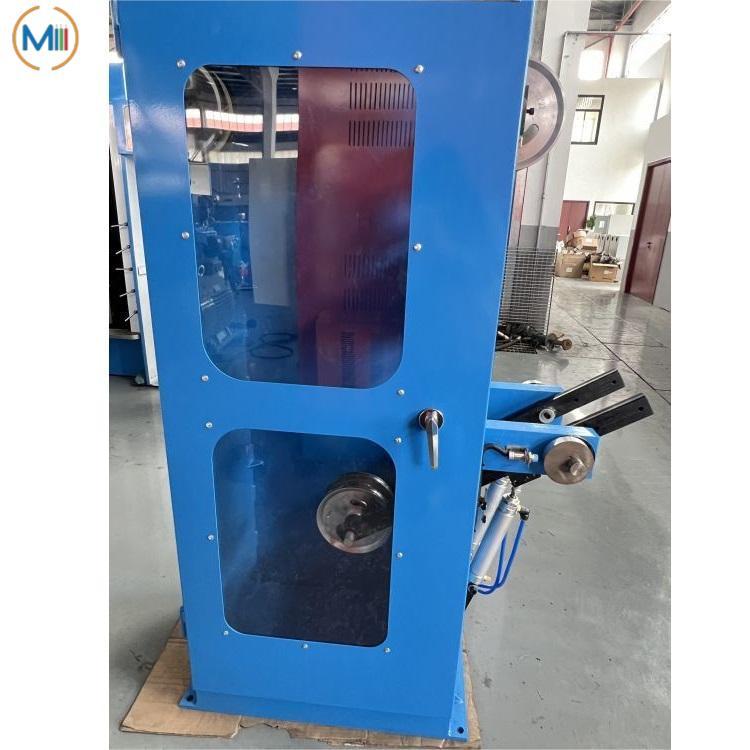

Finished wire is wound by the 630 single bobbin take-up machine.
Main feature:
1).Max.Dies Qty: 17
2).Outlet wire size: 0.4-1.0mm
3).Max speed: 2000m/min
4).Raw material: copper wire
5).Vertical or horizontal annealing.
1. Application:
This machine is used for drawing and annealing two copper wires from 2.5-.3.5mm to 0.4-1.0mm.
Finished wire is wound by the 630 single bobbin take-up machine.
2.Parameters:
| Machine Type | SY-17DH.2 | |
| Drawing Wire No. | 2 Wires | |
| Inlet Dia. (mm) | φ2.5~φ3.5 | |
| Outlet Dia.(mm) | φ0.4~φ1.0 | |
| 1*2.0 Max. | ||
| Max. Die No. | 17 | |
| Max. Line Speed(m/min) | 2000 | |
| Body Structure | Ironed Cast | |

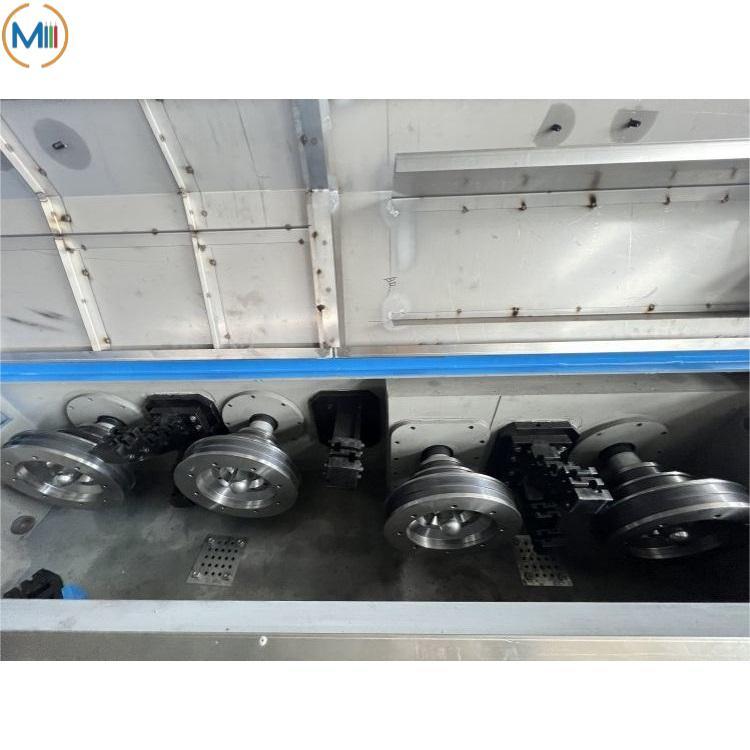

| Drawing Capstan | Carbon fiber and Tungsten Plasma Capstan | |
| Main Motor Power (kw) | 75 | |
| Take-up Motor(kw) | 15 | |
| Capstan Dia.(Max.)(mm) | φ250 | |
| Fix Speed Capstan Dia.(mm) | φ250 | |
| Transmission Type | By Gear | |
| Lubrication Type | Full Immersion | |
| Tension Control | Air Pressure Type | |
| Take-up Type | Shaftless Type | |
| Take-up Bobbin Size(mm) | φ500 (Bore φ127) | |
| φ630 (Bore φ127) | ||
| Traversing Type | Gear Motor Type | |
| Brake | Disc Brake | |
| On-line Continuous Annealing Device | ||
| Type | 350T-2 | 250TB-2 |
| Annealing Structure | Horizontal | Vertical |
| Annealing Wire Dia.(mm) | 2 * φ0.8~2.8 | 2 * φ0.4~1.2 |
| Annealing Voltage ( V ) | 0 ~ 60 | 0 ~ 60 |
| Annealing Current ( A ) | 0~4000A | 0~3000A |
3.Advantage:
1). Manpower saving, space saving, electricity saving.
2).Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
4).Longer annealing section with tension ensure good and stable elongation.
5).Unify 250 cast-iron main frame, precision machinery, no shock.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
