1.Application:
Two Wires Aluminum Rod Breakdown Machine is used for drawing two Alloy and Alloy alloy rod from 9.5mm to 2.2-5.0mm.
Outlet wire can go to dual take up device or compact coiler.
2.Parameters:
| Machine Type | LSD450/11-2 | |
| Drawing Wire No. | 2 Wires | |

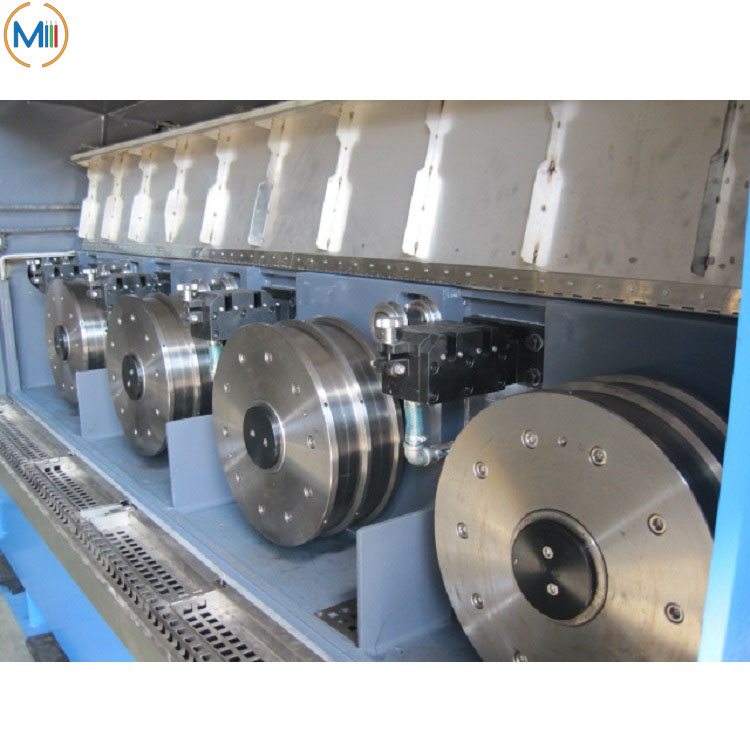

| Drawing Capstan Dia. (mm) | φ450 | |
| Max. Die No. | 11 * 2 | |
| Inlet Dia. (mm) |
AL, Al Alloy |
2 * φ9.5 |
| Outlet Dia. (mm) | AL, Al Alloy | 2*φ2.2~φ5.0 |
| Max. Drawing Speed (m/s) | 25 | |
| Main Motor (KW) | 45 / 55 / 75 /132 KW (AC) | |
| Capstan Arrangement | Horizontal Type | |
| Take-up Type (Optional) | Double Take-up/Single Take-up/ Coiler | |
3.Advantages
1. Synchronized servo motor direct drive, power saving by about 5%-8%
2. This machine uses a servo motor to drive directly, adjusting speed by inverter. Stable and high accuracy of adjustment speed, and good synchronization.
3. Two Wires Aluminum Alloy Rod Breakdown Machine has beautiful outlook as well as advanced technology.

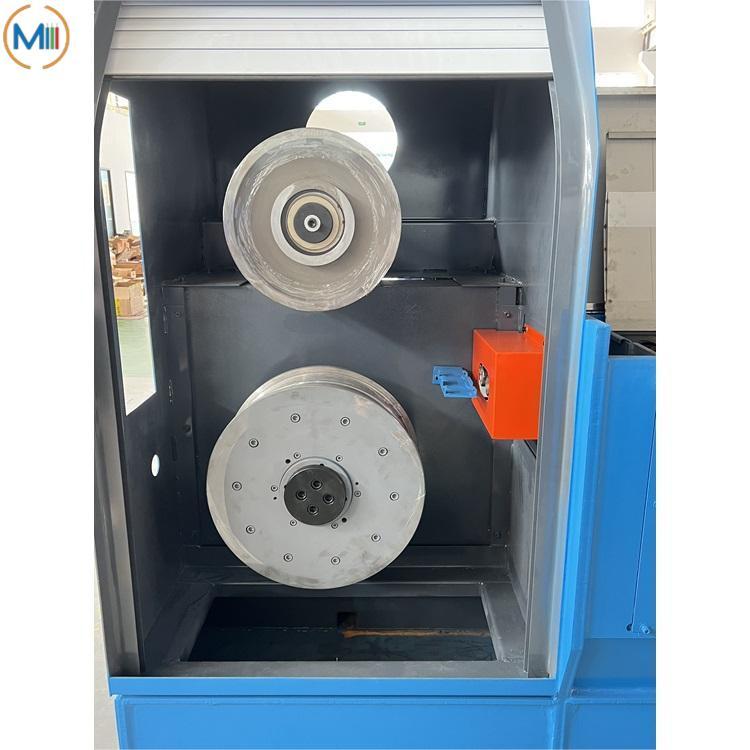

4.Use a large-diameter capstan in the inlet of the line.With incline arrangement in one straight line, which can prevent damage of wire during drawing.
4.Delivery time: 90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
