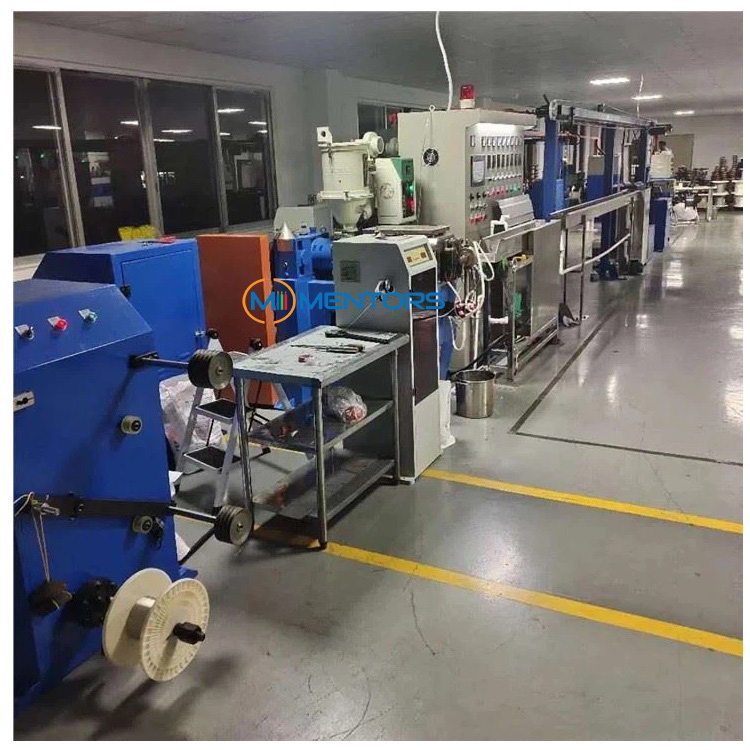

Teflon Cable Making Machine
This machine is used for insulating or sheathing Teflon wires and cables.
Description
1. Application:
This machine is used for insulating or sheathing Teflon wires and cables.
2. Parameters:
| Type | SY-50 |
| Core diameter (mm) | 1.5-5 |
| Screw length/diameter | 25:1 |
| Temperature control | 4+2 |
| Heating power(kw) | 18 |
| Main servo motor(kw) | 11 |
| Traction servo motor(kw) | 3.7 |
| Max extrusion capacity(kg/h) | 45 |
| Max line speed(m/min) | 180 |
| Pay-off | Shaft active pay-off 300-500 |

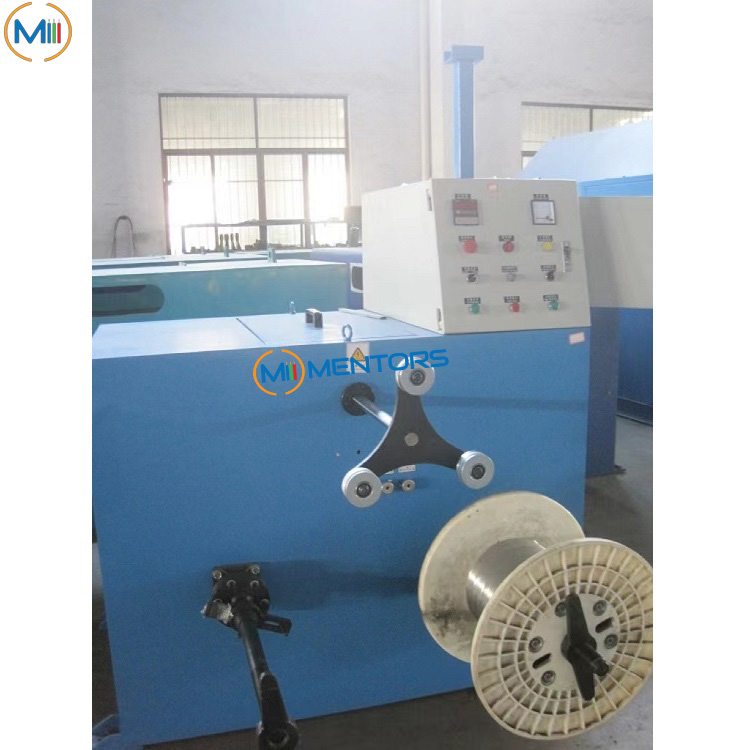

| Take-up | 400-630 shaft take-up machine with motor;3kw+inverter+screw traversing |
| Size (m) | 20×1.7×2.1 |
| Weight (T) | 8 |
3. Advantages:
1. Quality control: Outer diameter detection feedback device to control product outside diameter, concentricity, etc.
2. Control the tension of the whole line accurately.
3. Applied to P.T.F.E, FEP, PFA, ETFE.
