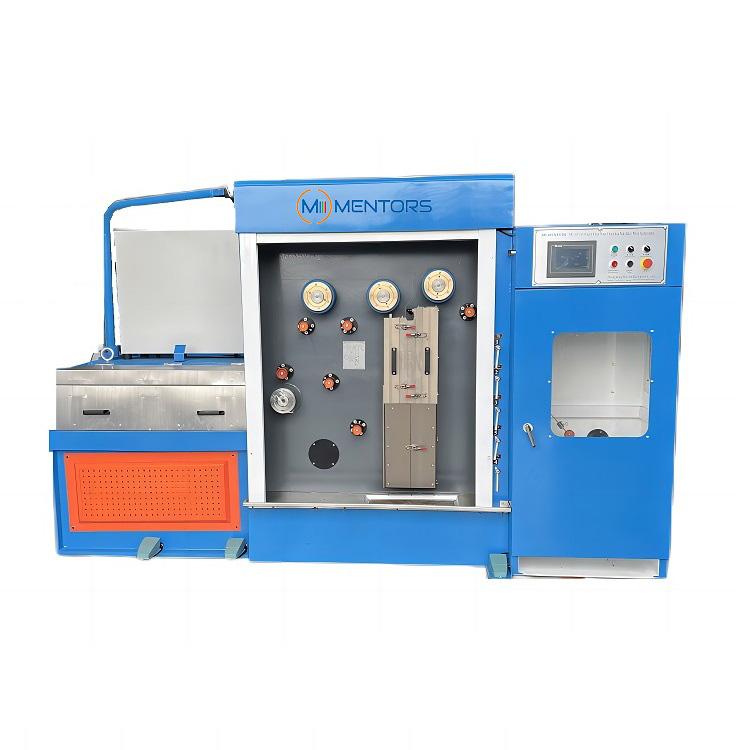

Super Fine Wire Drawing Machine with Annealing
Main Feature:
1. Drawing dies No.: 24
2. Inlet diameter: 0.275-0.71mm
3. Out diameter: 0.06-0.16mm
Description
1. Application:

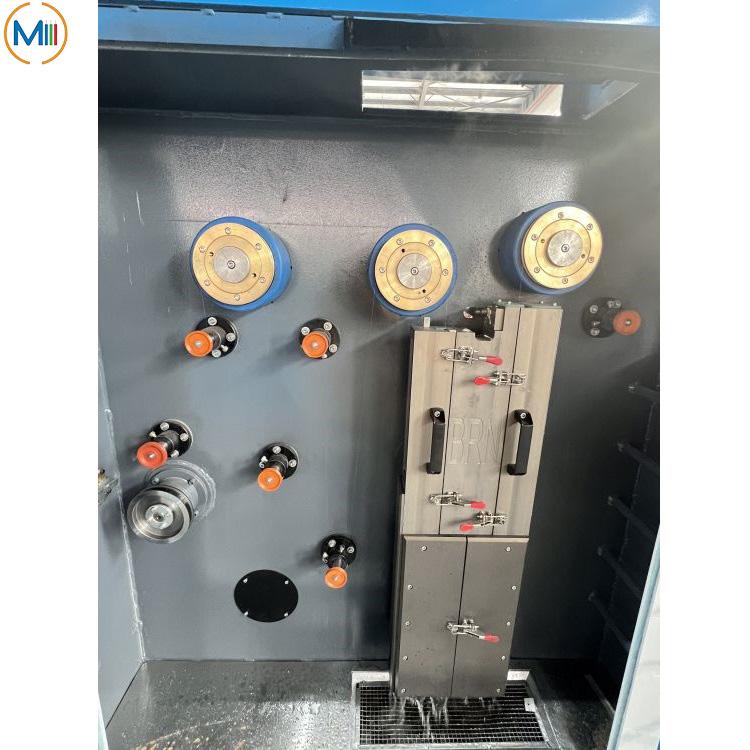

This machine is used for drawing and annealing copper wire from 0.275-0.71 mm to 0.06-0.16 mm.
2.Parameters:
| ltem | Data |
| Machine type | SY-DT24V |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 24 |
| Inlet diameter | 0.275-0.71 |
| Out diameter | 0.06-0.16 |
| Max.Drawing line speed | 20m/s |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 7.5kw |
| Take-up motor | 2.2kw |
| Transmission type | By flat belt |
| Braking way | By magnetic method |
| Power supply | 415V±5%, 3P, 50HZ |
3. Advantage:
1.The main body is made of Q235 steel structure being stress-relieved by annealing after welding.
2.The die holders are of compact space design but easily thread the wire through the die. The positions of the die holder are adjustable according to the positions of the drawing capstan.
3.Traversing controlled by stepping motor and traversing speed can be adjusted.

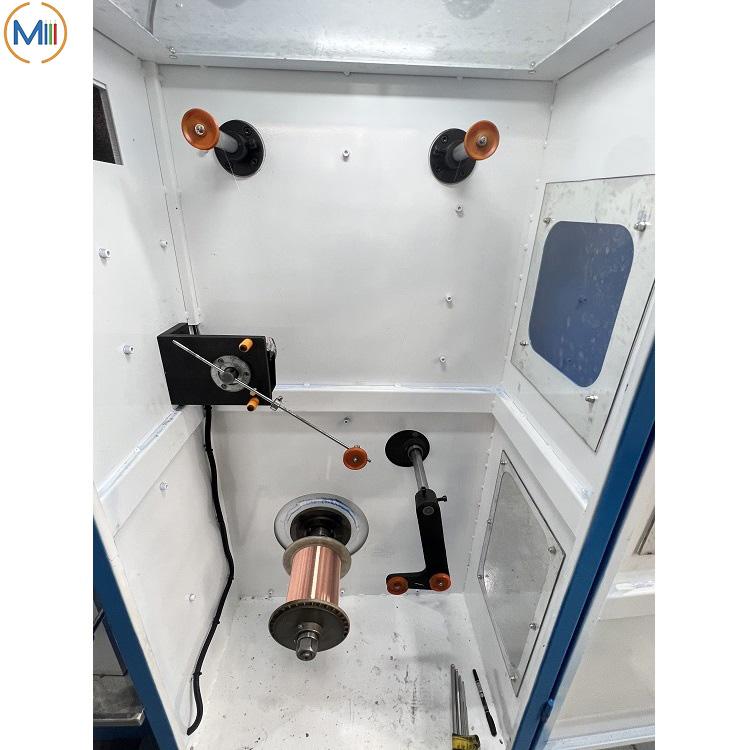

4.The trolley and slope plate are furnished to facilitate the loading and unloading bobbin.
5.Double inverters can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
4. Delivery time: 60 working days
5. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
6. Guarantee: 12 months since shipping date(exclude easily wearing part)
