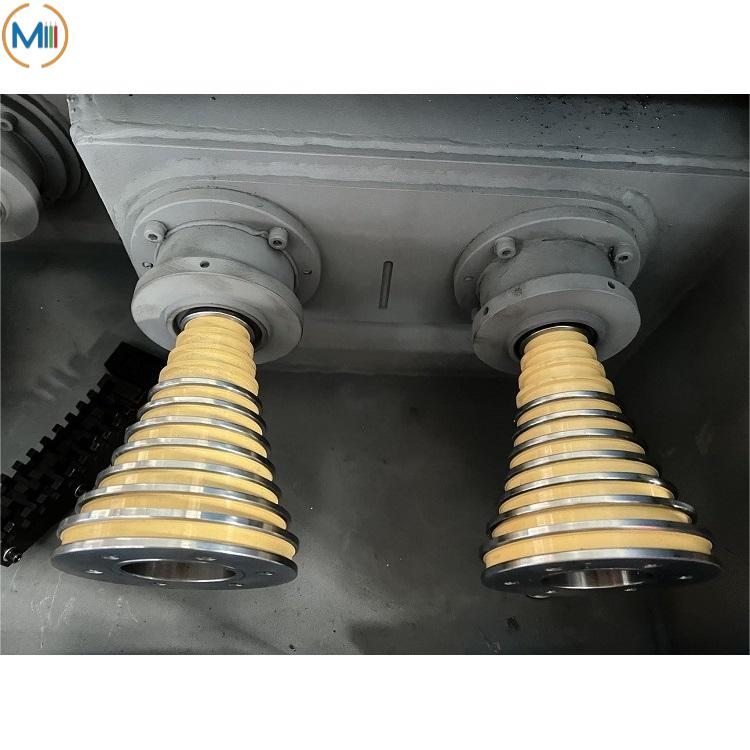

Adopting four pieces capstan, each one has 11 layers.
Last one layer capstan used for fixed the speed. The loading and unloading of the wire drawing capstan is fixed in a conical pressing form, which is easy to install and unload.
Main feature:
1. Wire quantity: 1 wire
2. Max.Inlet wire: 0.45 mm, outlet wire: 0.04-0.15 mm
3. Raw material: copper
4. Capstan quantity: 4 PCS(horizontal)
1. Application:

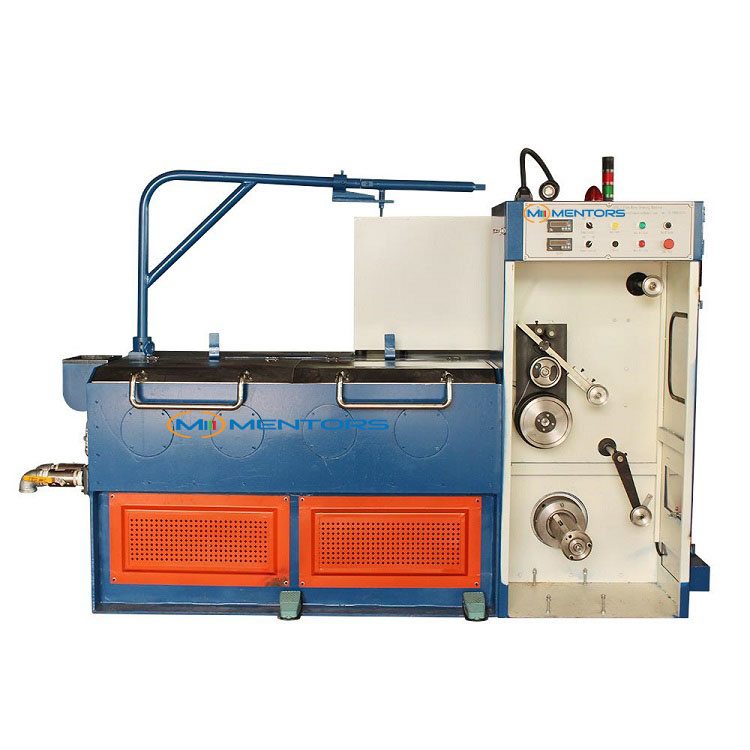

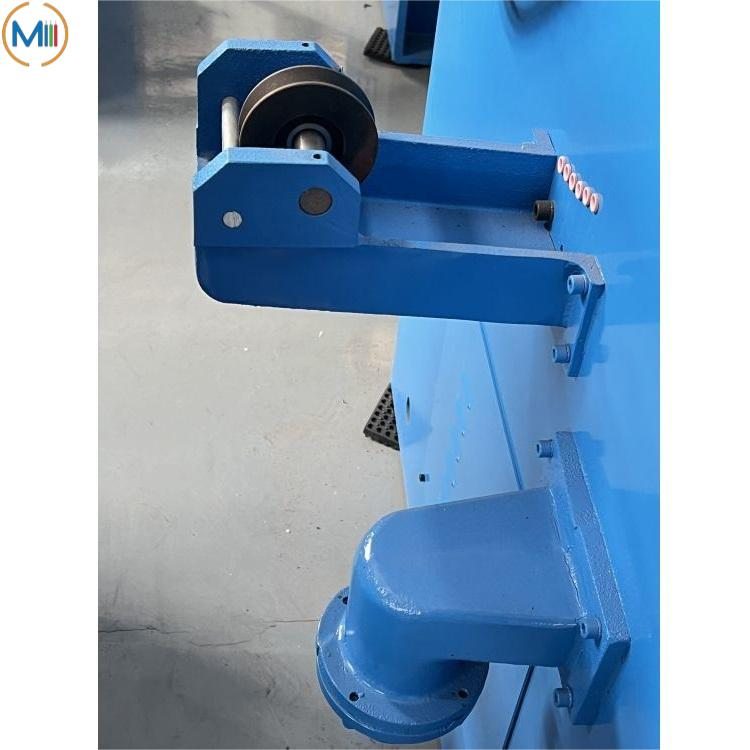

Super Fine Wire Drawing Machine is specially used for drawing wire 0.04-0.15 mm.

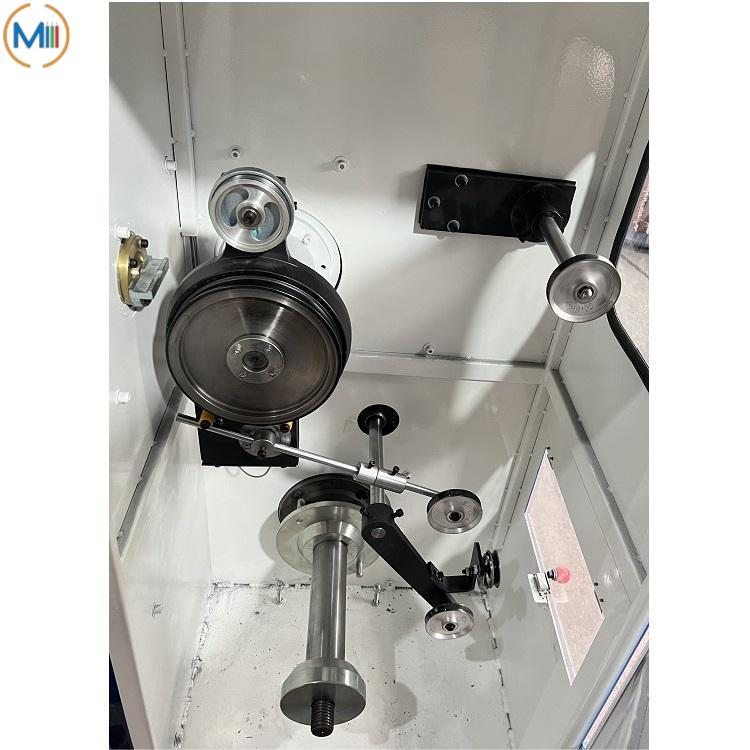

The finished wire is wound by the plastic bobbin.
2. Parameters:
| Machine type | SY-24VD |
| Control system | Push Button |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 24 |
| Inlet diameter | 0.12- 0.45mm |
| Outlet diameter | 0.05- 0.15mm |
| Drawing line speed | 2500m/min |
| Slip ratio of m/c | 10.5% |
| Frame | Ironed cast |
| Capstan | Ceramic plasma capstan |
| Main motor | 5.5KW |
| Spooler motor | 2.2KW |
| Spool bobbin size | Φ250mm or customized |
| Machine dimension | 2000×1600×1900mm |
| Machine weight | 1700KG |
3. Notes on production：
During the production of the Super Fine Wire Drawing Machine, wire breakage is one of the biggest problems.
1. The broken wire rate is the most concerned technical index in its production. In order to reduce the occurrence of disconnection, we must choose high-quality copper wire.
2. Special attention should be paid to the size of the mold of the super wire drawing machine, and the matching of the dies must achieve the purpose of precisely controlling the sliding of the wire drawing machine.
3. In addition, the concentration of lubricating oil should not be too high, which will increase resistance and lead to disconnection.
4. Advantages:
1. Ironed cast body is very strong.
2. Adopting world-famous bearings and belt-type transmission with low noise.
3. Drawing capstan of Super Fine Copper Wire Drawing Machine arrange in horizontal type, which is easier for operating.
4. Double inverter can keep the outlet wire with stable tension and the wire seldom break.
5. Delivery time: 30-45 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
Click here to find out more about different types of Fine Wire Drawing Machine
