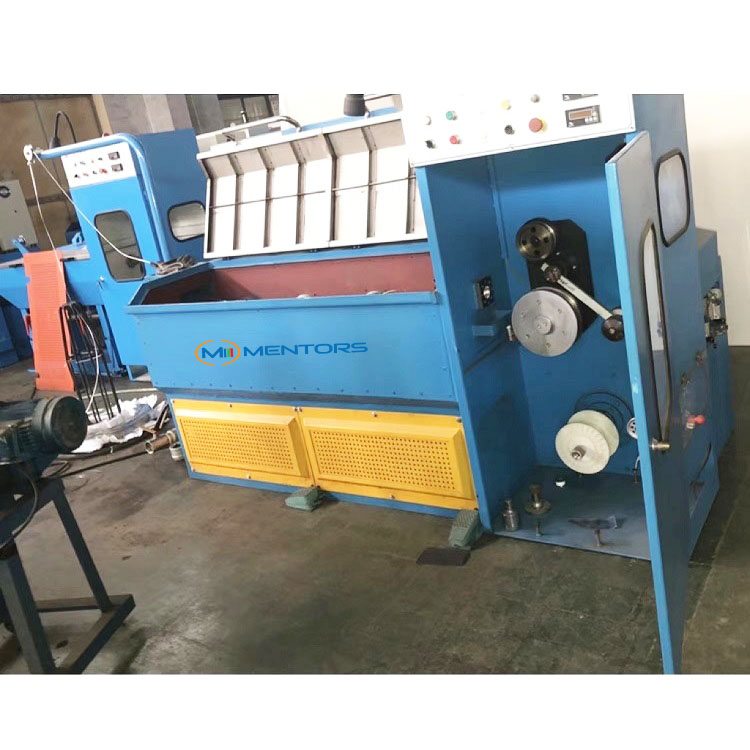

This machine is equipped with fully immersed lubrication system and transmission depends on teeth belt.
Wet Wire Drawing Machine has high efficiency and low noise.
Main feature:
1) Max.Dies Qty: 23
2) Outlet wire size: 0.12-0.3mm
3) Max speed: 600m/min
4) Dual Inverter Control
1. Application:
Steel Wet Drawing Machine is used for drawing S.S wire from 0.6-1.0mm to 0.12mm-0.30mm.
2.Parameters:
| Machine type | SY-24B.2 |
| Control type | Dual inverter +PLC+HMI |
| Inlet dia. | 0.6-1.0mm |
| Outlet dia. | 0.12-0.3mm |
| Max dies No. | 23 |

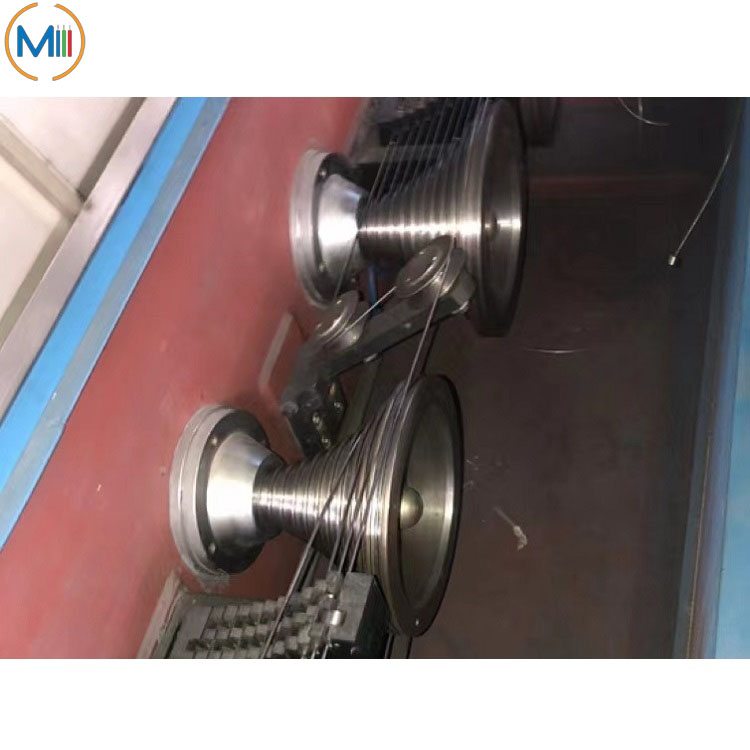

| Final capstan dia. | 230mm |
| Max line speed | 600m/min |
| Lubrication type | Fully immersed |
| Main motor | 7.5/11kw |

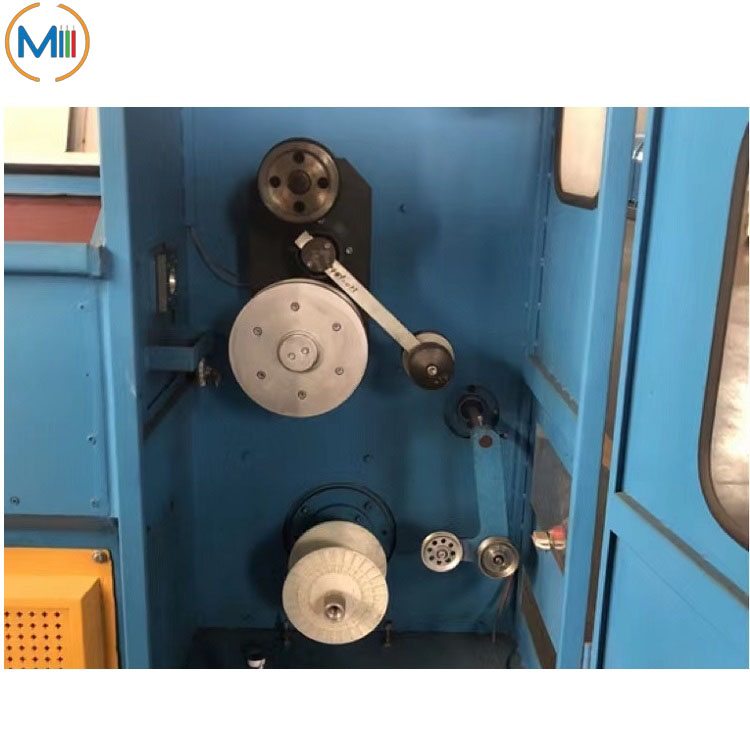

| Take-up motor | 4kw |
| Traversing type | Stepping motor |
| Transmission | Teeth belt +Flat belt |
| Take-up bobbin | DIN300 or as customized |
| Break | Pneumatic break or EM break |
3.Advantages:
1.Special alignment device at final die position, keep wire verticality and quality, which is good for next process.
2.Stepping motor traverse, pitch adjustable, smooth traversing.
3.Protection device for wire disorder; machine auto stops if mother wire disorder or break.
4.The electrical control system of Steel Wet Drawing Machine is fully digitally controlled, and the electrical components are all internationally renowned brands. The electrical control system operates stably and reliably.
5.The failure rate is low, and the average high working speed greatly improves the production efficiency.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
