Stainless Steel Wire Drawing Machine
Two motor with inverter controlled, it's energy saving.
Main feature:
1) Max.Dies Qty: 24
2) Outlet wire size: 0.12-0.3mm
3) Max speed: 200-500m/min
4) Dual Inverter Control
Description
1. Application:
Stainless Steel Wire Drawing Machine is used for drawing stainless steel wire 0.12-0.30mm from max input wire 1.0mm.
2.Parameters:
| Machine type | SY-24B/A |
| Control system | Traditional analog type
Computer digital control |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 24 |
| Inlet diameter | 0.60–1.00mm |
| Outlet diameter | 0.12–0.30mm |
| Drawing line speed | 200~500m/min |
| Frame | Welded by steel |
| Capstan | Tool steel |
| Main motor | 7.5/11KW |
| Spooler motor | 4KW |
| Spool bobbin size | Φ300
or according to customers requirements |
| Traversing unit | Stepping motor |
| Transmission type | Teeth belt + Flat belt |
| Max .loading capacity | 50KG |
| Lubrication type | Spray type |
| Power source | 380V 50/60HZ or others |
| Machine dimension (mm) | 2000×1600×1900 |
| Machine weight | 2500KG |
3.Advantages:
1. Full immersed lubrication system, transmission by teeth belt, constant tension, low noise.
2. Special tool steel Capstan.

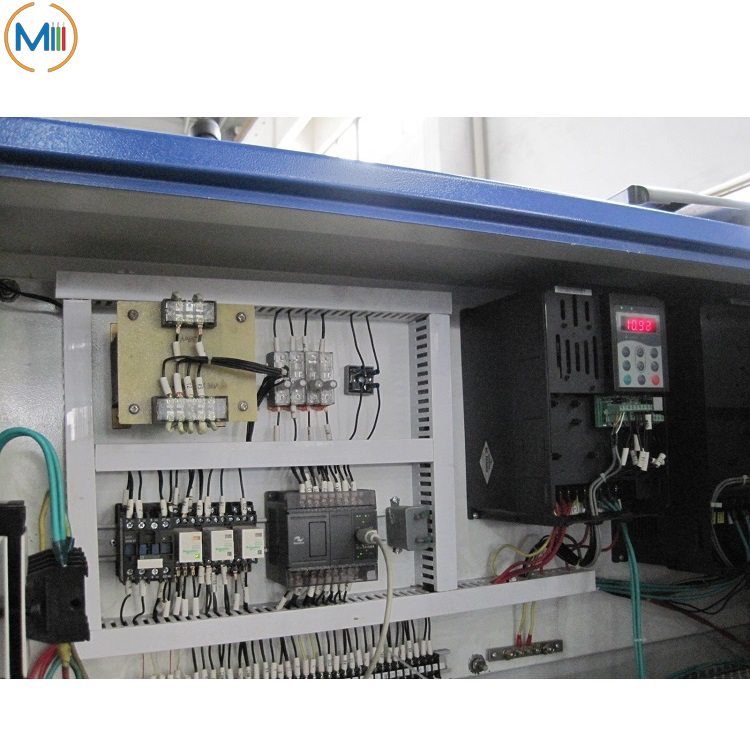

3. PLC control, dual motor and dual inverter.
4. Special alignment device at final die position, keep wire verticality and quality, which is good for next process.

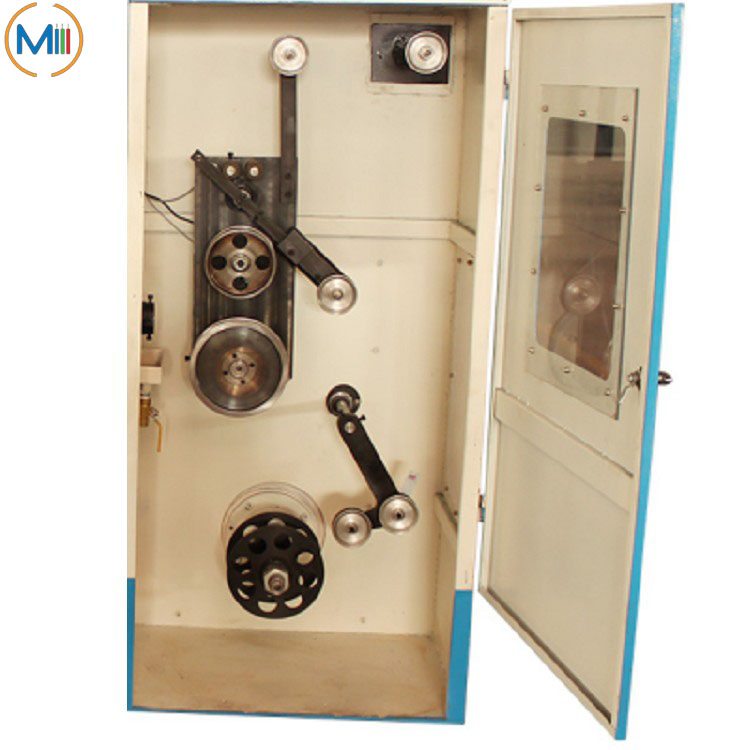

5. Stepping motor traverse, pitch adjustable, smooth traversing.
6. Protection device for wire disorder; Machine auto stop if mother wire disorder or break.
7. Transmission type of Stainless Steel Wire Drawing Machine is synchronous belt driving, Ac frequency conversion speed control.
8. Precision Potentiometer automatic adjustment.
4.Machine Maintenance:
1.Before running Stainless Steel Wire Drawing Machine, you should conduct a safety inspection of the device, and then add lubricating oil regularly, fixed -point, and quantitatively according to the requirements of the lubrication chart. The oil should be cleaned without precipitation.
2.The Stainless Steel Wire Drawing Machine must always be kept clean.
3.Check whether switches, buttons, and other parts are damaged. The wear should be replaced in time.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
