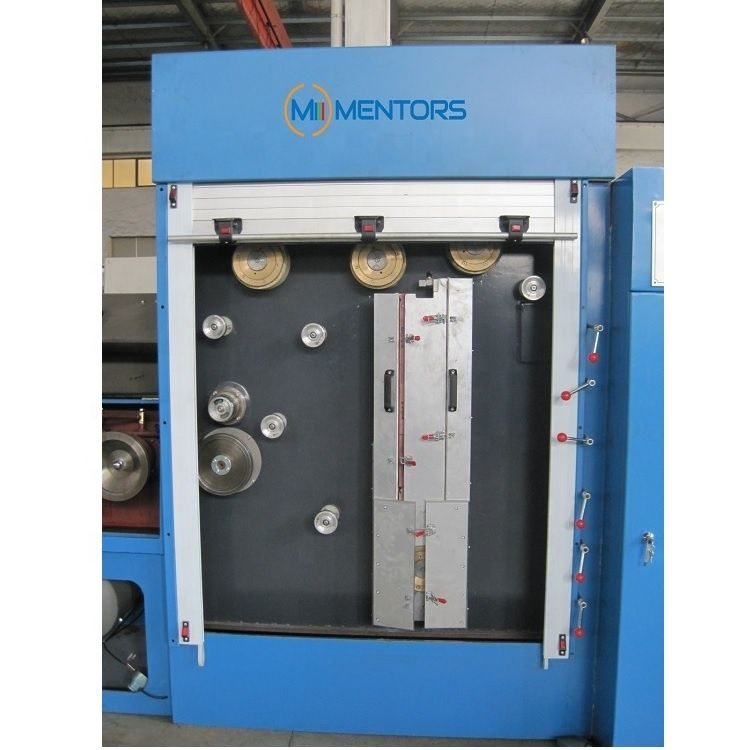

The annealing device adopts a vertical design with a steam generator.
The annealing and softening chamber is protected by steam.
Both annealing tank and the cooling chamber are filled with steam or coolant without air mixing, so that the final wire will not be oxidized.
Main feature:
1) Max.Dies Qty: 24
2) Outlet wire size: 0.15-0.35 mm
3) Max speed: 1500 m/min
1. Application:

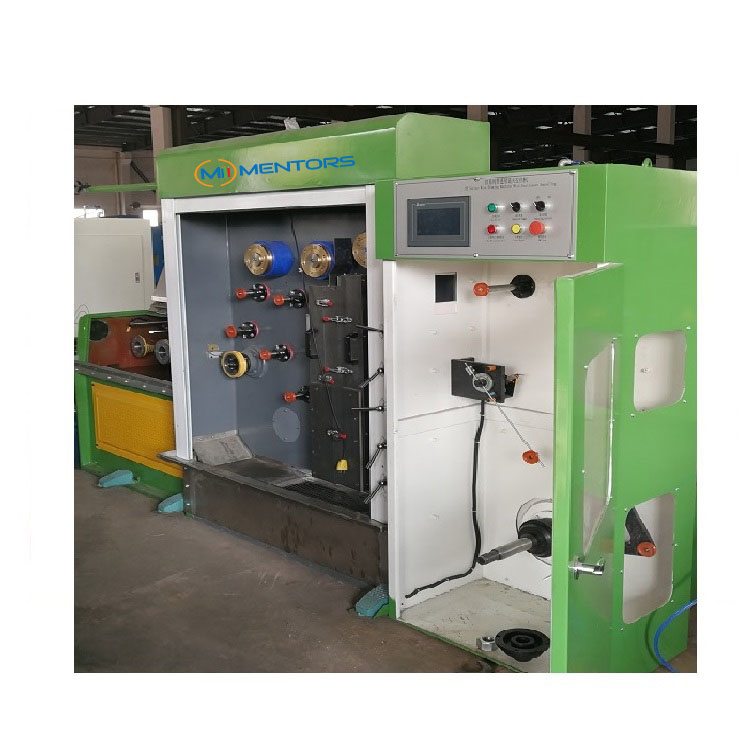

All guide wheel raw material of Silver Plating Copper Wire Drawing Machine is bake lite, which can prevent wire surface from scratching.
2.Parameters:
| Machine type | SY-DT24Z |
| Inverter control | Two inverter control |
| Drawing dies No./max. | 24 |
| Inlet diameter | Ø 0.5- 1.2 mm |
| Out diameter | Ø 0.15- 0.35 mm |
| Max.Drawing line speed | 1500 m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Horizontal type |
| Capstan | Ceramic plasma capstan |
| Main motor | 11 kw/15 kw |
| Spooler motor | 4 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 250 A |
| Spool bobbin size | DIN160-DIN250 |
3.Advantages:

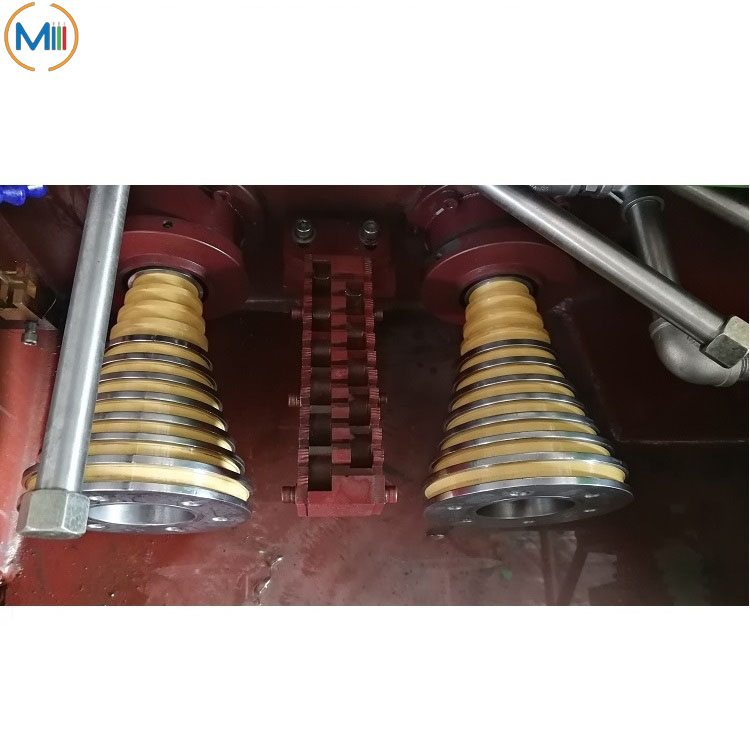

1. Zirconium oxide capstan with long working life and also ensure wire surface smoothly
2. D.C current annealing designing,with full digital controlled, annealing voltage working with main drawing speed，ensuring stable elongation.
3. Silver Plating Copper Wire Drawing Machine use automatic traversing system.Traversing can be adjust easily according to bobbin height.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
