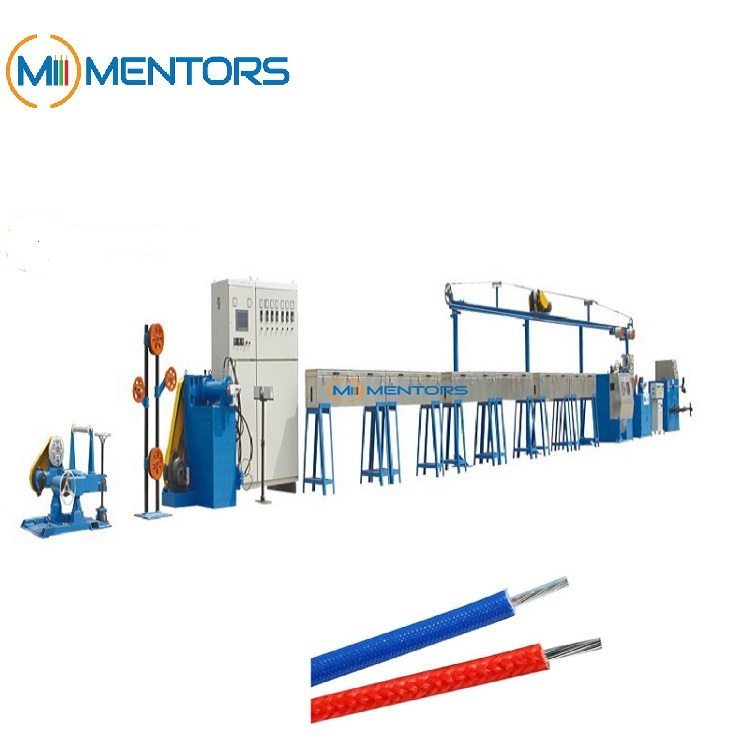

Silicone Cable Making Machine
It can produce all kinds of high temperature silicone rubber cable and high temperature sheaths.
Description
1. Application:
This type machine is used for making silicone cable.
2-Parameters:
| 1-SY-85 Main Extruder | |
| Screw diameter | 85 mm |
| Screw L/D ratio | 14:1 |
| Screw and barrel material | 38CrMoAIA |
| Barrel cooling | Recycling water cooling |
| Motor power | 75 kw A.C motor |
| Temperature control | RKC brand |
| Extrusion capacity | 140 kg/h |
| 2. SY-45 Color Injection Extruder | |
| Screw diameter | 45 mm |
| Screw L/D ratio | 12:1 |
| Barrel cooling | Water cooling |
| Motor power | 11 kw A.C motor |
| Extrusion capacity | 30 kg/h |
3.Advantages:
1)PLC+ Touch screen control , adjusting and monitoring parameter of whole production line.
2)Screw and barrel special, crosshead and dies for silicon rubber to prevent inner vulcanization.
3)Silicone rubber used avoiding adjusting head, water cooling system automatic control or manual control.
4) Precision testing feedback system to ensure accurate wire diameter so as to reduce cost.
4.Delivery time: 45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
