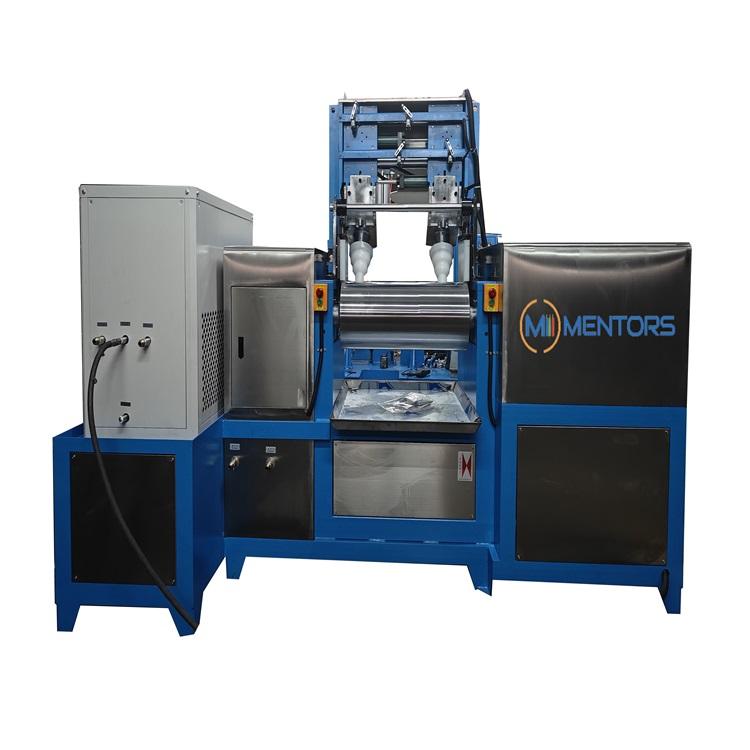

Rubber Mixing Mill
This machine is used for mixing the half-finished silicone rubber. The mixed raw material can be used for silicone rubber extruder directly.
Description
1.Application:
The Rubber Mixing Mill is used for mixing the half-finished silicone rubber. The mixed raw material can be used for silicone rubber extruder directly.
2.Parameters:
| Mixing capacity | 1-15kgs (Silicone 50KG) |

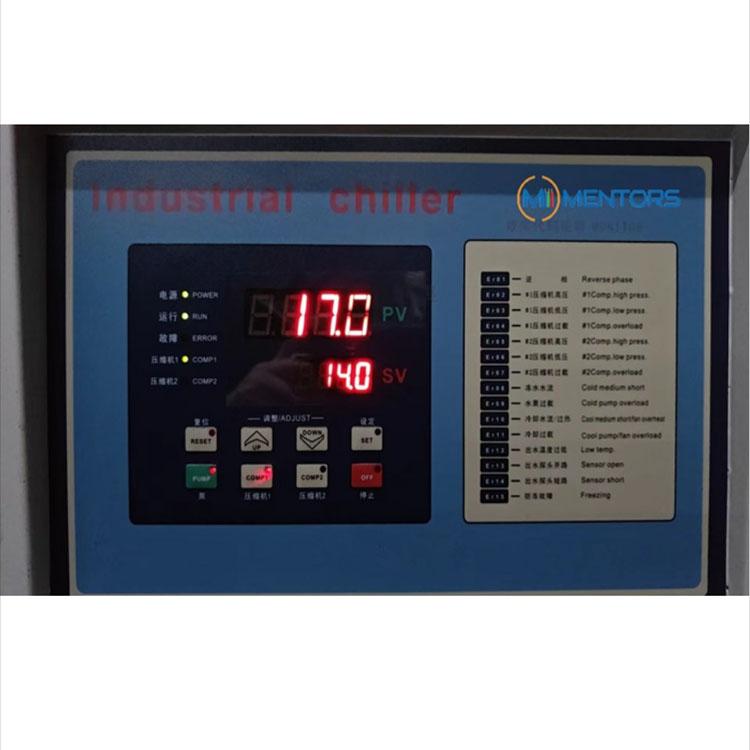

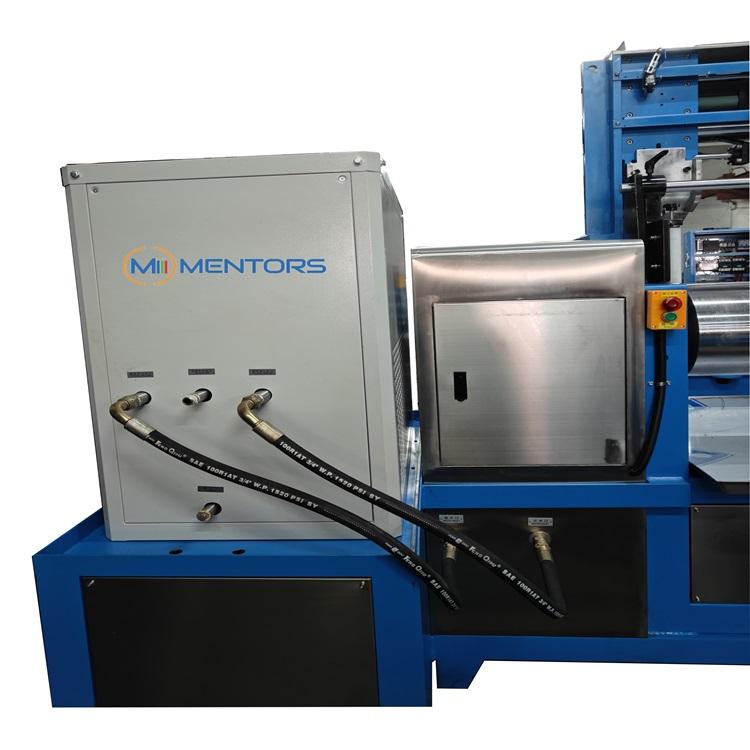

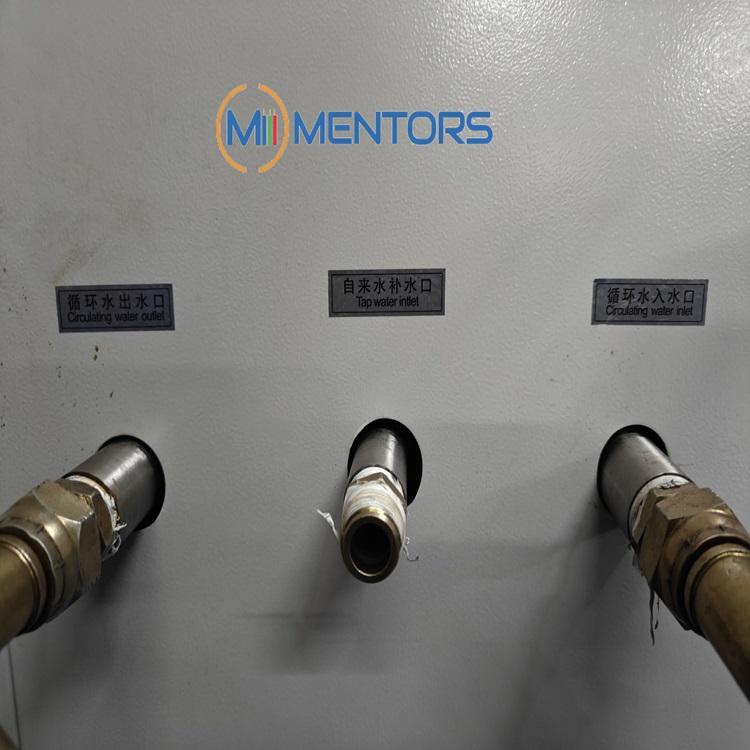

| Cooling method | chiller |
| Roller speed | constant speed (about 15 RPM can be adjusted by inverter and other speeds can be customized) |
| Roller speed ratio | 1:1.27 other specific speed customization |
| Roller size | 300*650 |
| Roller spacing | 0.1-15mm adjustable |
| Safety device | multiple collision mode emergency stopper |
| Motor | 15KW |
| Volume | (W*D*H) 2600*1150*2380mm, weight about 2650KG |
| Roller lubrication | the excellent wear-resistant bearing |
| Mechanical structure | steel plate |
| Power supply | three-phase five-wire AC3400V |
3.Advantages:
1.The roller is hard chrome plating on high hardness surface, no sticking material, no delamination.
2.The safety device equipped with reverse function safety first, humanized design, operator workers are always safe without injury.
3.The structure of the machine is steel plate,which is light weight, small volume, higher mechanical strength and good toughness than traditional process cast iron.
