This machine can draw both round wire and S shape wire, Z shape wire etc.
Especially suitable for carbon fiber cable, Aluminum Conductor Composite Core (ACCC conductor) and reinforced cable.
Feature
1)Individual drives
2)Inlet wire: 8 or 9.5mm, outlet wire: 1.2~5.0mm.
3)Finished product: Round wire, S shape wire, Z shape wire, trapezoidal type wire.
1.Application:

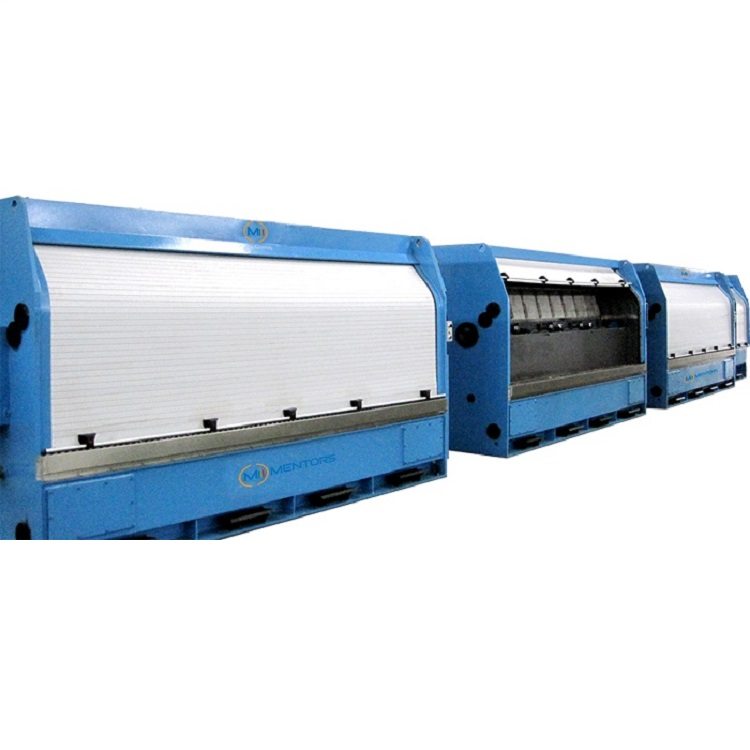

Rod Breakdown Machine with Individual Drives is used for drawing copper and aluminum or alloy wire with high speed.
2.Parameters:
| Machine type | SY-LSD450/13 | |
| Drawing Capstan Dia.(mm) | φ450 | |
| Max. Die No. | 13 | |
| Inlet Dia.(mm) | Copper | φ8 |
| AL, Al Alloy | φ9.5 | |
| Outlet Dia. (mm) | Copper | φ1.2-φ4.2 |
| AL, Al Alloy | φ1.7-φ5.0 | |
| Max.Drawing Speed (MAX) (m/s) | 25 | |
| Single Motor Power (KW) | 37 / 55 (AC) | |
| Capstan Arrangement | Horizontal Type | |
| Lubrication Type | Full Immersion | |
| Take-up Type (Optional) | Double Take-up/ Single Take-up / Coiler | |
| Optional Equipment for copper wire | Horizontal continuous annealing | |
| On-line Continuous Annealing Device | ||
| Type | 450T | |
| Annealing Wire Dia.( mm ) | φ1.2 ~ 3.5 | |
| Annealing Voltage ( V ) | 0 ~ 60 | |
| Annealing Current ( A ) | 0~6000A (DC) | |
| Max. Annealing Speed
( m / s) |
25 m/s | |
3.Advantage:

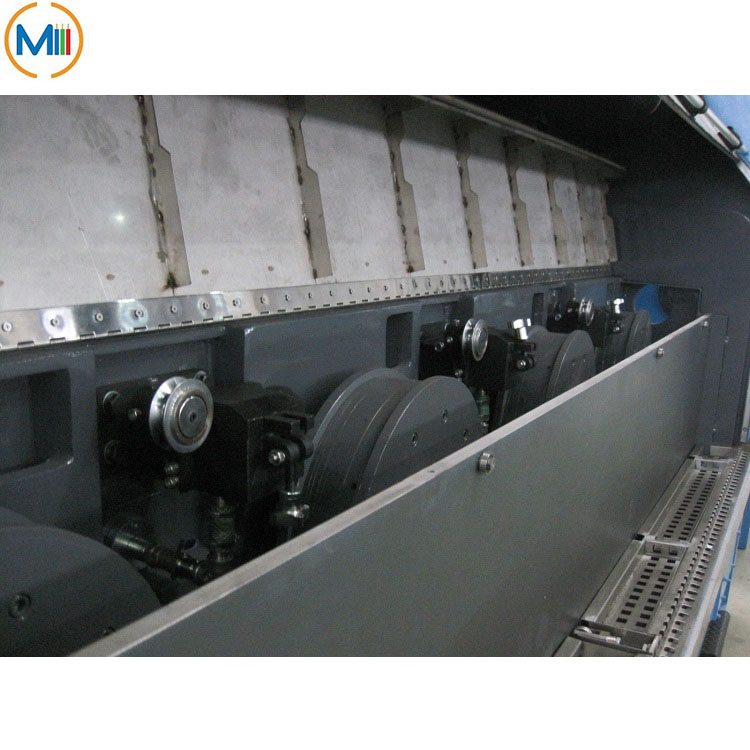

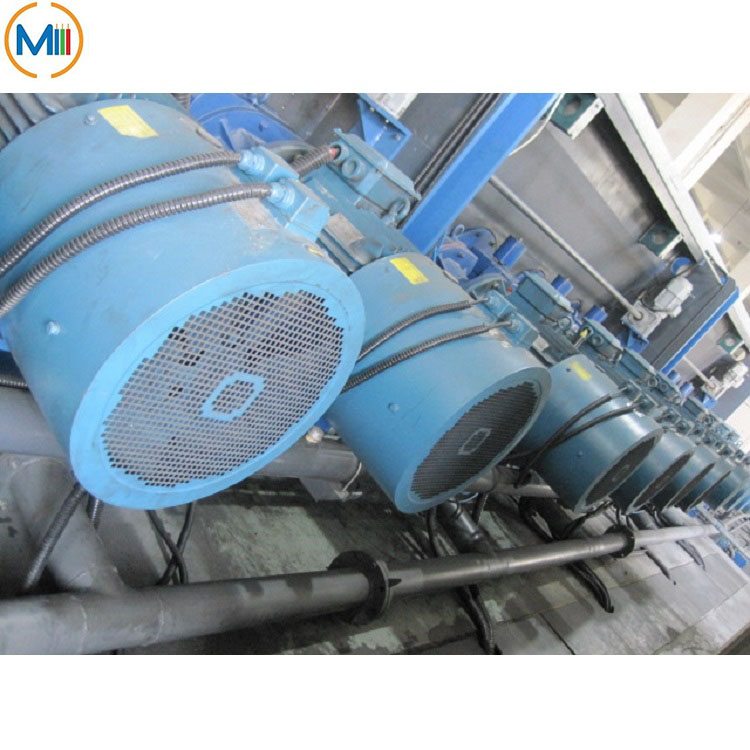

1.Every drum is run by single motor with drivers.

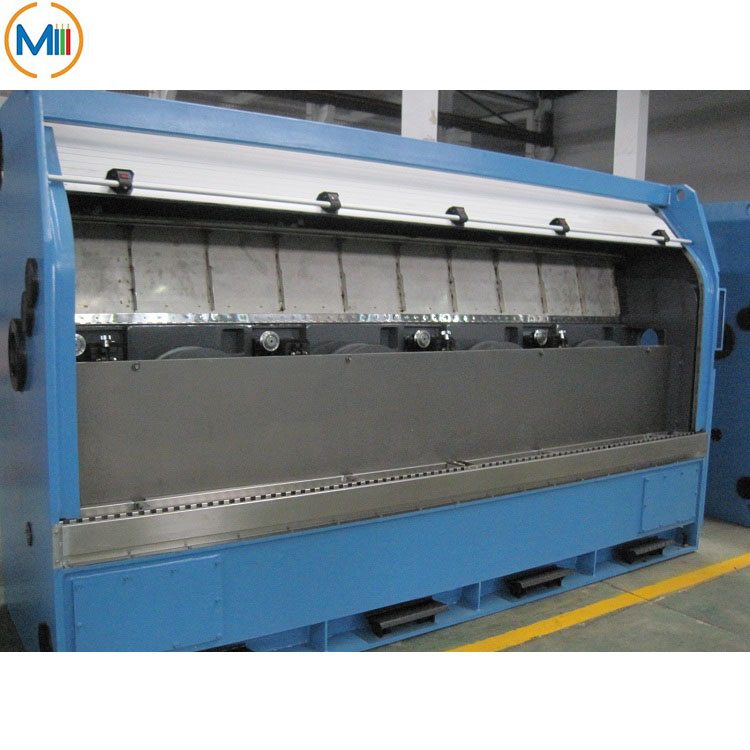

2.Door up and down automatically make threading easily.
3.Tension rate can be adjustable according to different raw material.
4.Quick die change system.
5.Full immersion guarantee the wire’s cooling and lubrication.
6.Drum box body is separated with transmit part, mechanical labyrinth seal type, to avoid drawing oil and gear oil mixed.
7.Three section AC annealing, full digital control, make wire soft with good quality.
4.Delivery time: 90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
