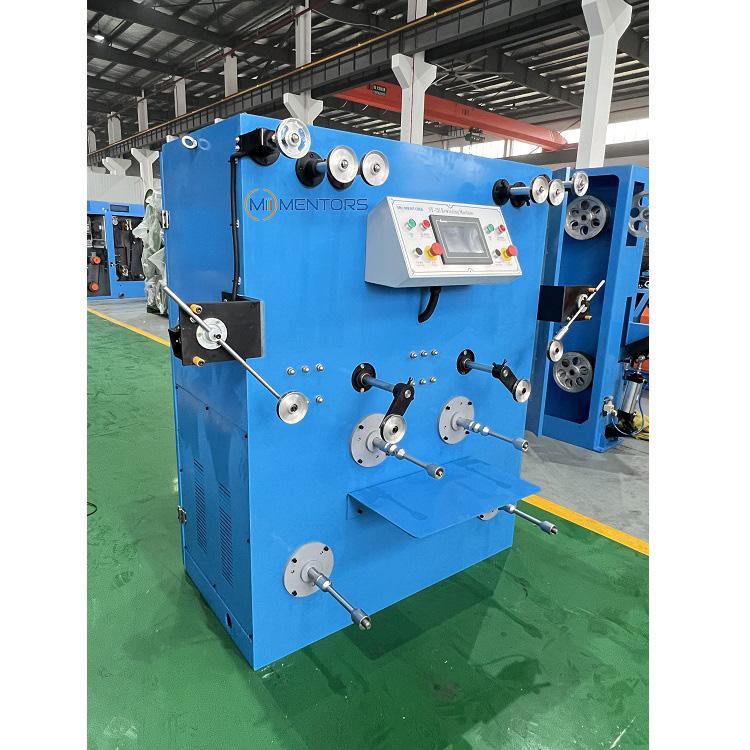

Rewinding Machine
Main Feature:
1. Pay-off bobbin size：160-250mm
2. Take-up bobbin size：125-160mm
3. Max.Speed：300m/min
Description
1. Application:
The machine is used for rewinding single copper wire with a plastic bobbin range of DIN125-250.
2. Parameters:
| ltem | Data |
| Machine type | SY-2H |
| Pay-off bobbin size | 160-250mm |
| Take-up bobbin size | 125-160mm |
| Max.Speed | 300m/min |
| Main motor | 2.2KW×2 |
| Tension control | Weight-balanced type |
| Clamp or loose bobbin | By hand |
| Traversing type | By electric |
3. Working Environment and Condition:
1）Working environment
Height above sea level less than 1000m.
Environment temperature －10℃－40℃
Comparative environment temperature less than 85% (25℃)
2）Working conditions:
Working voltage: 415V,50HZ, 3 Phase
