PVC Wire and Cable Extrusion Line
PVC Wire and Cable Extrusion Line is apply to the production of PVC insulated cable.
Description
1.Application:
This machine is apply to the production of PVC insulated cable.
2.Parameters:
| Model | SY-120 |
| Main machine power(kw) | 132KW AC |
| Extrusion capacity(kg/h) | 580 |
| Screw diameter(mm) | 20-70 |
| Screw L/D ratio | 25:1 |
| Screw speed range | 10-90RPM |
| Pay-off bobbin size(mm) | PN1250-PN2000 |
| Finished cable sizes(mm) | 30-85 |
| Heating power | Six parts, each parts 8~10 kw |

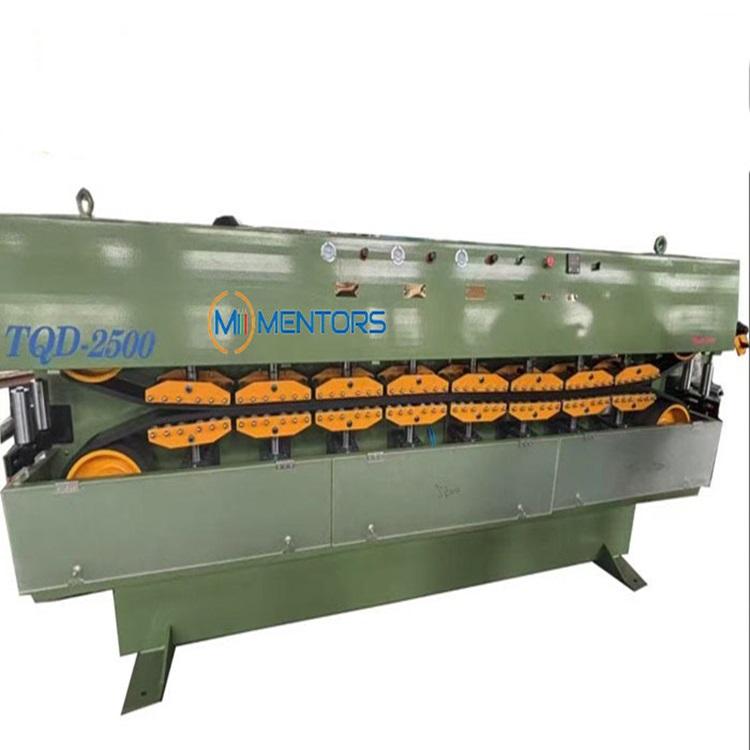

| Traction motor(kw) | 15 |
| Production speed(m/min) | 65m/min |
| Take-up bobbin sizes(mm) | PN1250-PN2500 |
3.Advantages:

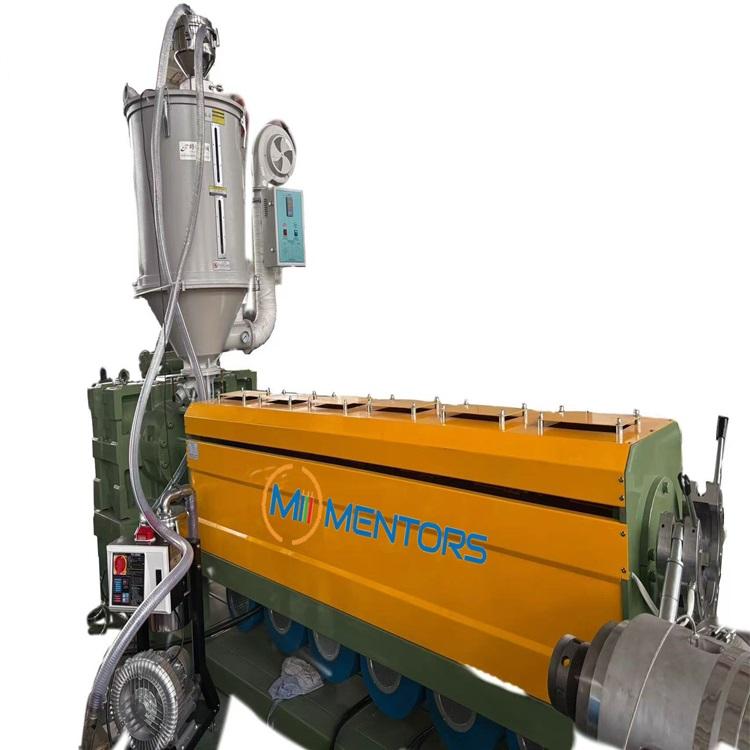

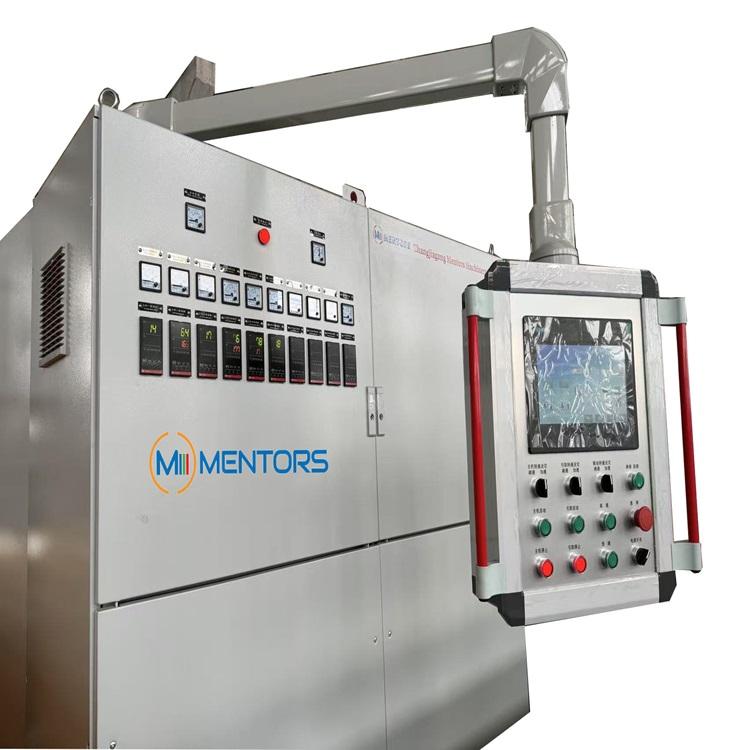

1)The system of the Extruder can also achieve single movement and linkage control.
2)The grinding gear, which is a component of reduce speed gear box, is specially designed for the Extruder.

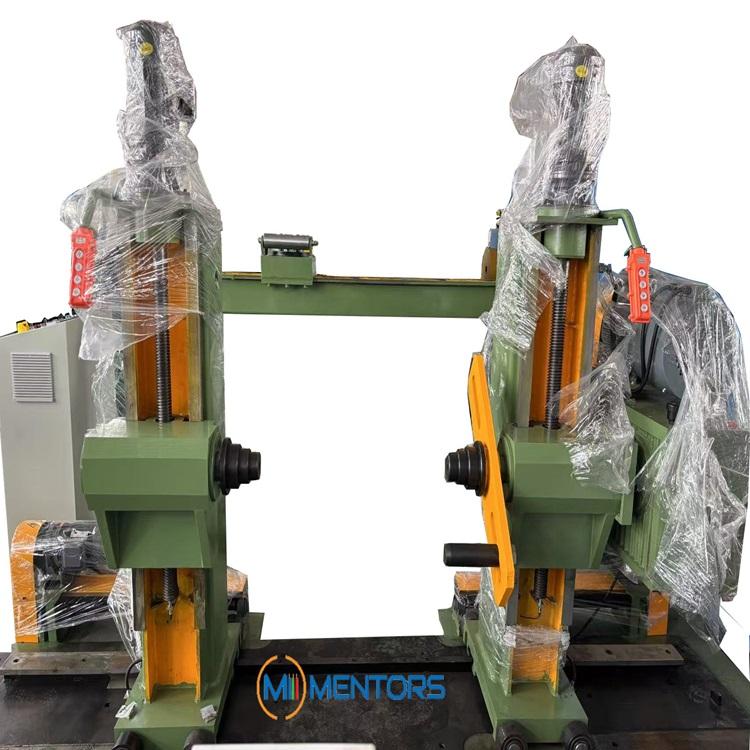

3)The take-up frame adopts the shaftless type take-up frame, and easy to operate the upper and lower plates.
