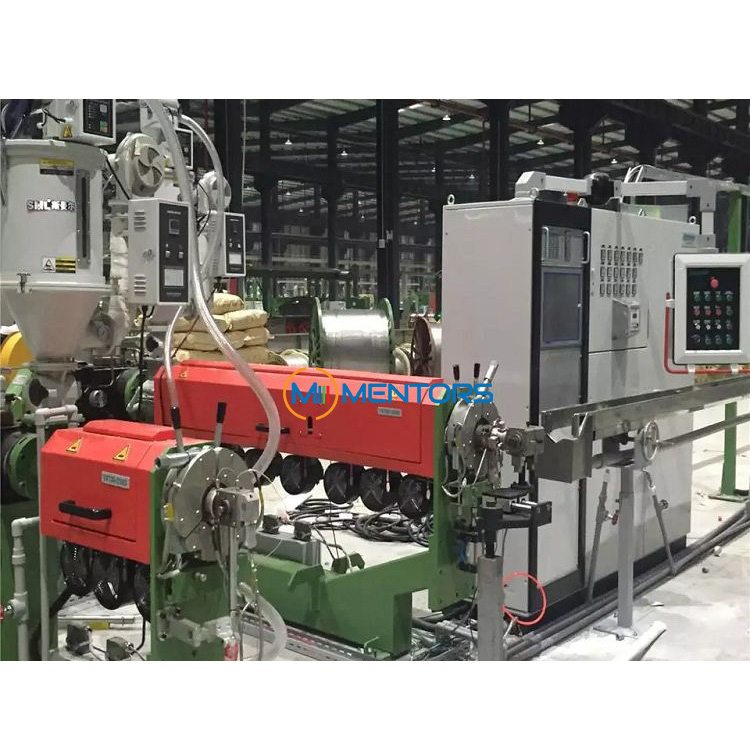

PLC Control Physical Foaming Extrusion Machine
This machine is used for making coaxial cables, and communication cables.
Description
1. Application:
This machine is used for making coaxial cables, and communication cables.
It’s suitable for coaxial cable, communication cable, and transmission cable. such as IEEE 1394, CAT5,CAT6, DVI,ATA, and UL29919.
2. Parameters:
| Model | SY-65+35 |
| Pay-off Type | The active or passive pay-off |
| Pay-off bobbin dia.(mm) | 500-630 |
| Single wire diameter(mm) | 0.8-2.0 |
| Dia. Of insulation wire(mm) | 3.0-14.0 |
| Screw diameter | 65 |
| Screw L: D | 36:1 special-use screw |
| Extrusion capacity (kg/h) | 60 |
| Main motor | 30HP |
| Cooling length(m) | 36 |
| Haul-off wheel dia.(mm) | 800<o:p> |
| Haul-off power | Double haul-off 5HP |
| line speed(m/min) | 10-150 |
| Taking up type | Double spools |
| Taking up bobbin dia.(mm) | 630-800 |

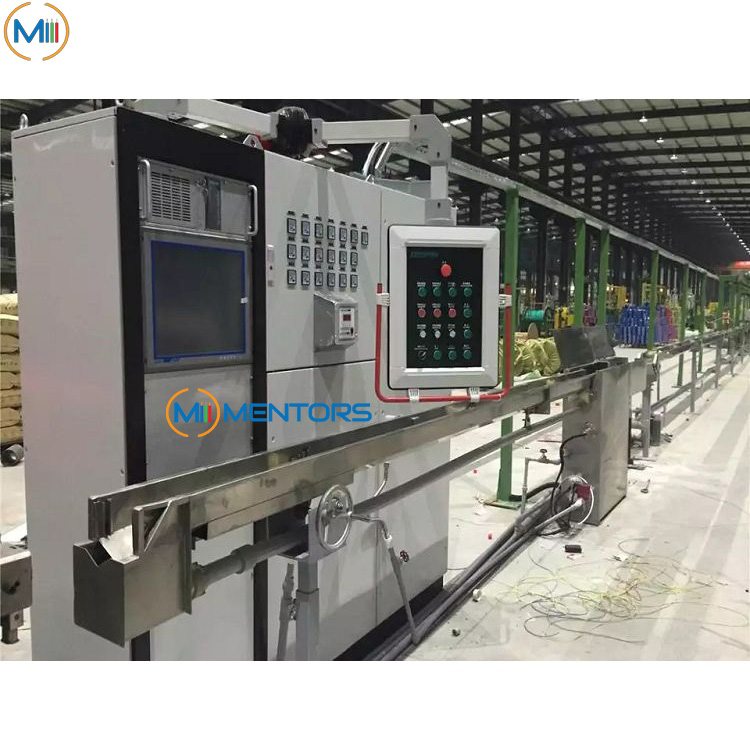

| Electricity control | Inverter +PLC touch screen |
3. Advantages:
1. Application materials: FM-PE, PE.
2. Foam degree: Imported high-pressure nitrogen gas injection system Max.82%; low nitrogen injection system Max.75%.
3. Equipped with precise diameter and capacitance detect feedback unit,auto-control the dia of the insulation layer, foam degree, concentric degree, insure the quality.
4. Electrical control: inverter with touch screen.
