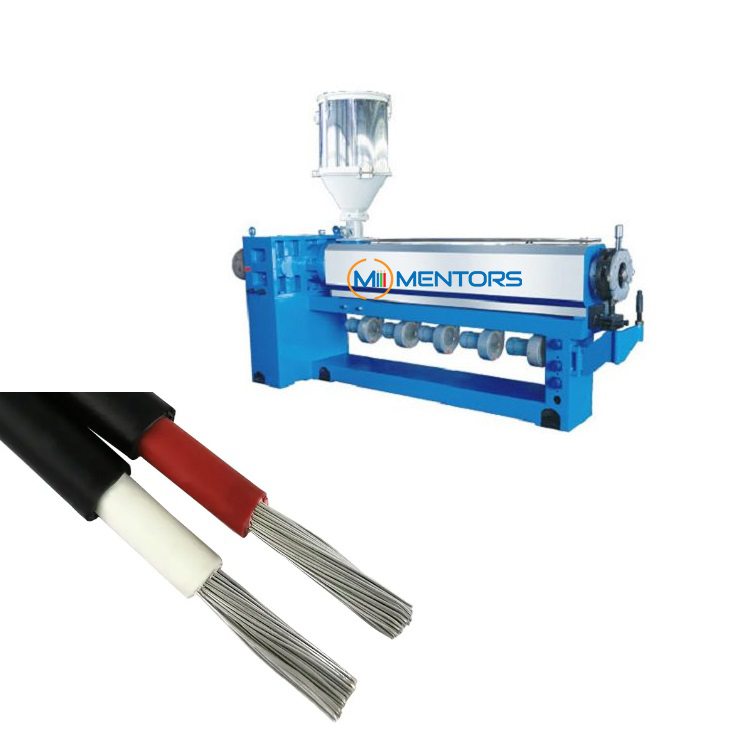

Plastic Sheath Cable Extruder Machinery
This machine is used for insulating cable cores with PVC, PE, PP, Flame retardant polyolefin, and other thermoplastics.
Description
1. Application:
This machine is used for insulating cable cores with PVC, PE, PP, Flame retardant polyolefin, and other thermoplastics.
2. Parameters:
| Model | SY-90 |
| Screw Dia | 90mm |
| Screw L/D ratio | 25:1 |
| Screw rotation speed | 90rpm |
| Cable core diameter | 10-40mm |
| Diameter after extrusion | 15-50mm |
| Line speed | 5-80mlmin (Depending on wire diameter) |
| Extruding capacity(PVC) | 30-360kg/h |
| Main motor | 55kw/75kw |
| Caterpillar motor | 7.5kw |
| Cooling water trough length | 16+2m (Movable travel 0.8m) |
| Pay off drum size | PN1000-PN2000 |
| Take up drum size | PN1000-PN2000 |

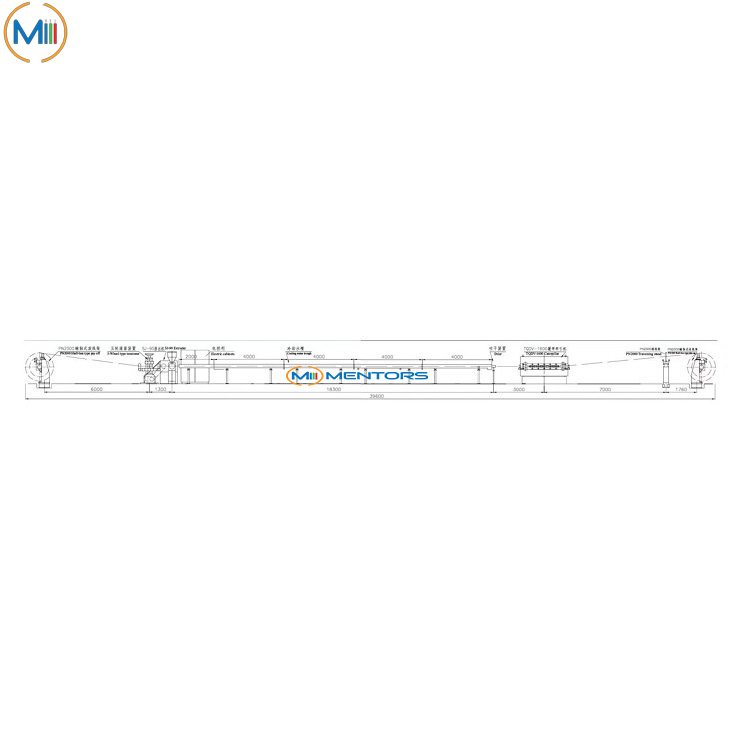

3. Main equipment composition：
1. Shaft-less pay-off
2. Tesioning device
3. 90 Main Extruder
4. Cooling water trough
5. Drier

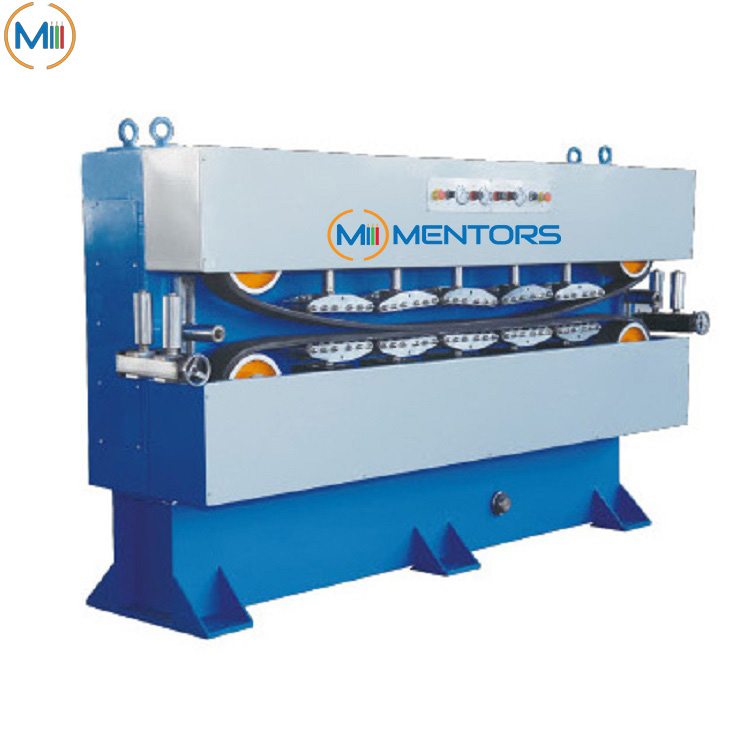

6. Caterpillar
7. Shaft-less take-up

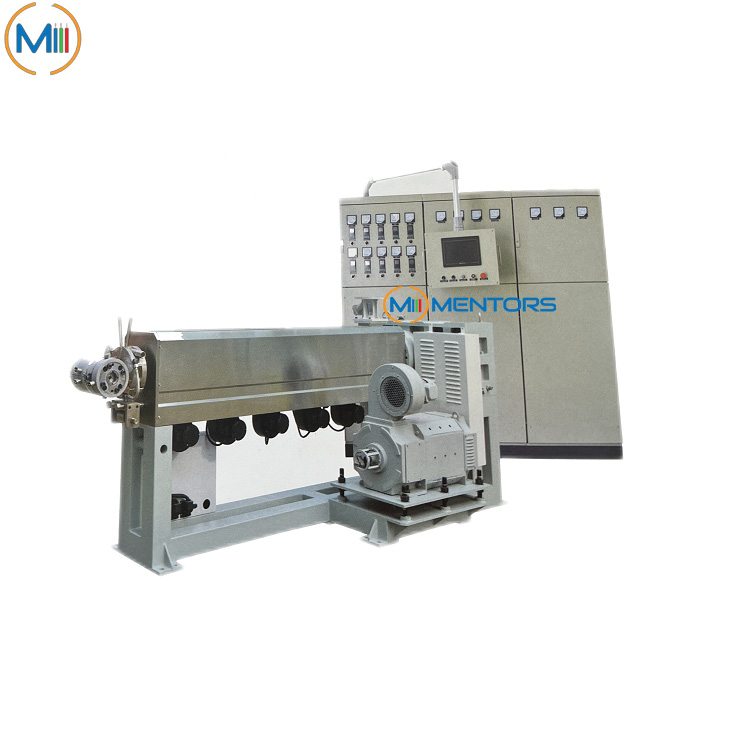

8. Electrical control system
4. Advantages:
1. The extruder and tractor are driven by a DC Z4 motor or AC variable frequency motor, and controlled by an imported full digital speed control device.
2. The body and head of the extruder adopt the RKC temperature control instrument, and the temperature control accuracy is <±2℃.
3. The take-up and pay-off frame adopts the shaftless type take-up and pay-off frame, and easy to operate the upper and lower plates.
4. The user can choose an industrial computer (PC) to control the operation of the production line to realize automatic production.
