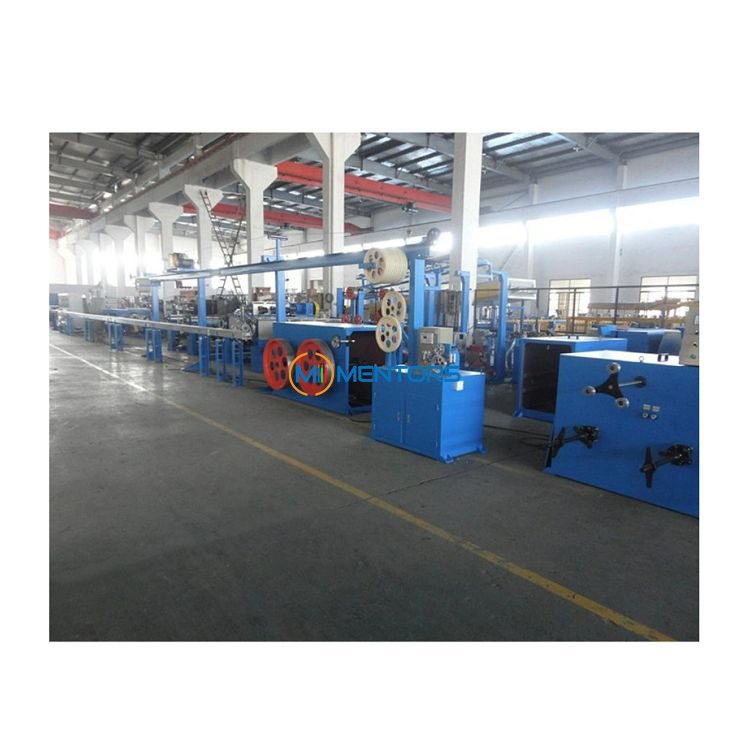

Physical Foaming Coaxial Cable Extrusion Line
This machine is suitable for extruding telecommunications cables, coaxial cables, radio-frequency cables, data cables, transmission cables, and other physical foaming wires.
Description
1. Application:
This machine is suitable for extruding telecommunications cables, coaxial cables, radio-frequency cables, data cables, transmission cables, and other physical foaming wires.
2. Parameters:
| Model | SY-25+45+30 |

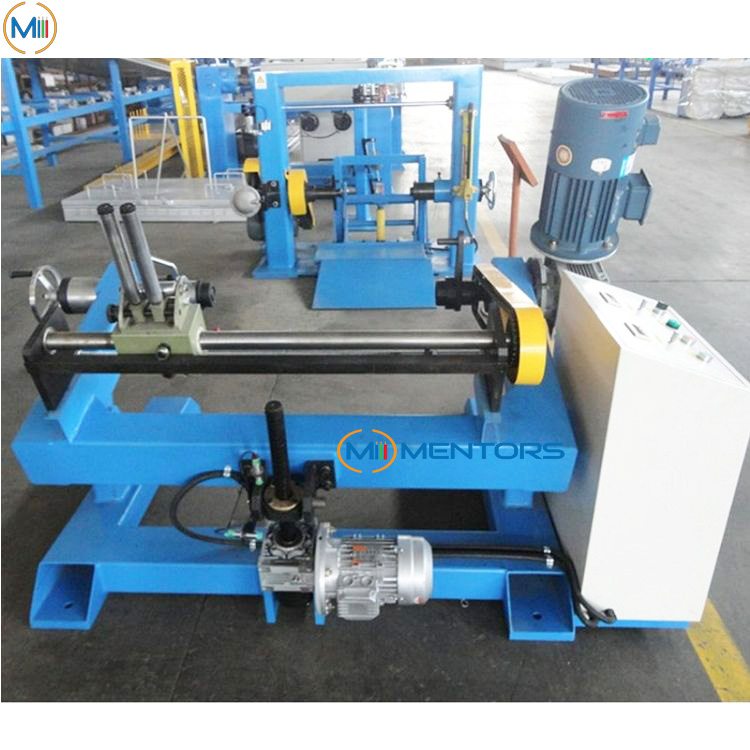

| Pay off Type | The active or passive pay-off |
| Pay off bobbin dia.(mm) | 400-500 |
| Single wire diameter(mm) | 0.4-2.0 |
| Dia. Of insulation wire(mm) | 1.2-5.0 |
| Screw diameter | 25 |
| Screw L: D | 18:1 special-use screw |
| Extrusion capacity (kg/h) | 30 |
| Main motor | 15HP |
| Cooling length(m) | 25 |
| Haul-off wheel dia.(mm) | 630 |
| Haul-off power | Double haul-off 5HP |
| line speed(m/min) | 10-150 |
| Taking up type | Double spools |
| Taking up bobbin dia.(mm) | 500-630 |
| Electricity control | Inverter +PLC touch screen |
3. Advantages:
1. Foaming percentage: Imported high-pressure nitrogen injection system (MAX):82%, low-pressure nitrogen injection system(MAX):75%
2. Selective: High-pressure nitrogen injection system or low-pressure nitrogen injection system.
3. Electrical control: Inverter with touch screen.
