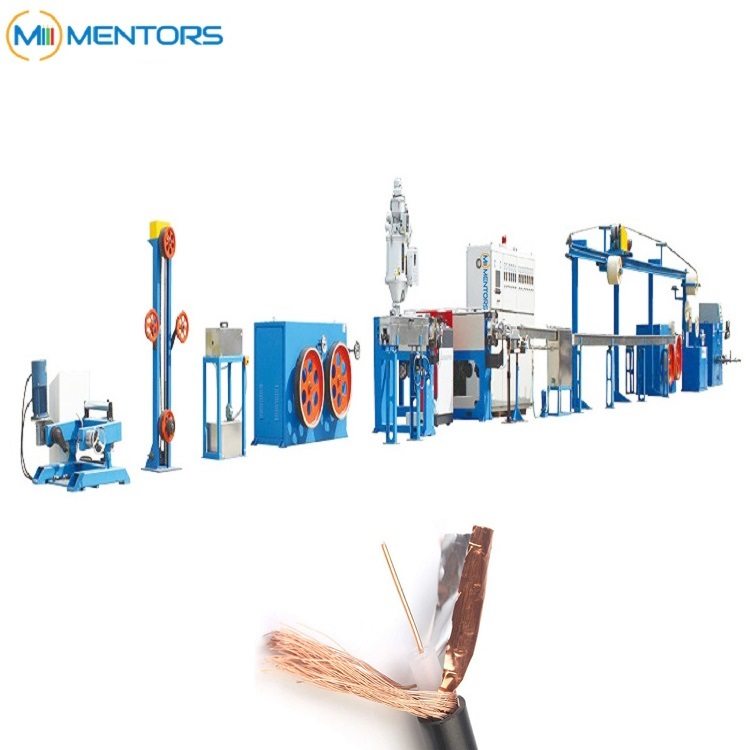

Physical Foaming Extrusion Line
It's suitable for coaxial cable,communication cable and transmission cable.such as IEEE 1394,CAT5,CAT6,DVI,ATA,UL29919.
Insulation material:FM-PE,PE.
Description
1. Aplication:
This type machine is used for making coaxial cable,communication cable.
2-Parameters:
| Model | SY-45+30 | SY-65+35 | SY-90+35 | |

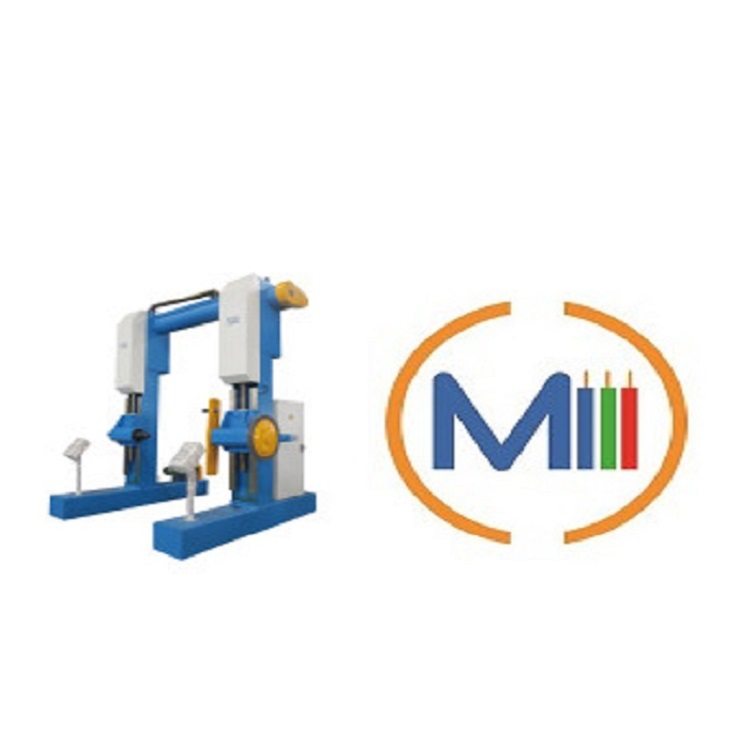

| Pay off bobbin dia.(mm) | Active or passive pay off | |||
| Pay off bobbin dia.(mm) | 400-500 | 500-630 | 800-1000 | |
| Single wire diameter(mm) | 0.4-1.0 | 0.8-2.0 | 1.0-5.0 | |
| Dia. Of insulation wire(mm) | 1.5-5.0 | 3.0-14.0 | 5.0-45.0 | |
| Screw diameter | 45 | 65 | 90 | |
| Screw L: D | 34:1 special-use screw | 36:1 special-use screw | ||
| Extrusion capacity (kg/h) | 30 | 60 | 150 | |
| Main motor | 15HP | 30HP | 60HP | |
| Cooling length(m) | 25 | 36 | 45 | |
| Haul-off wheel dia.(mm) | 630 | 800<o:p> | 1000 | |
| Haul-off power | Double haul-off 5HP | Double haul-off 7.5HP | ||
| line speed(m/min) | 10-180 | 10-150 | 10-100 | |
| Taking up type | Double spools | |||
| Taking up bobbin dia.(mm) | 500-630 | 630-800 | 800-1000 | |
| Electricity control | Inverter +PLC touch screen | |||
3.Advantages:
1)Foaming percentage:imported high-pressure nitrogen injection system(MAX.82%);low-pressure nitrogen injection system(MAX.75%);
2)Quality control:outer diameter test and capacitance detector,control the diameter and foaming during the whole progress.
3)Crosshead: special physical foaming corsshead.
4)Electrical control: inverter with touch screen.
4.Delivery time: 60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
