1. Application:

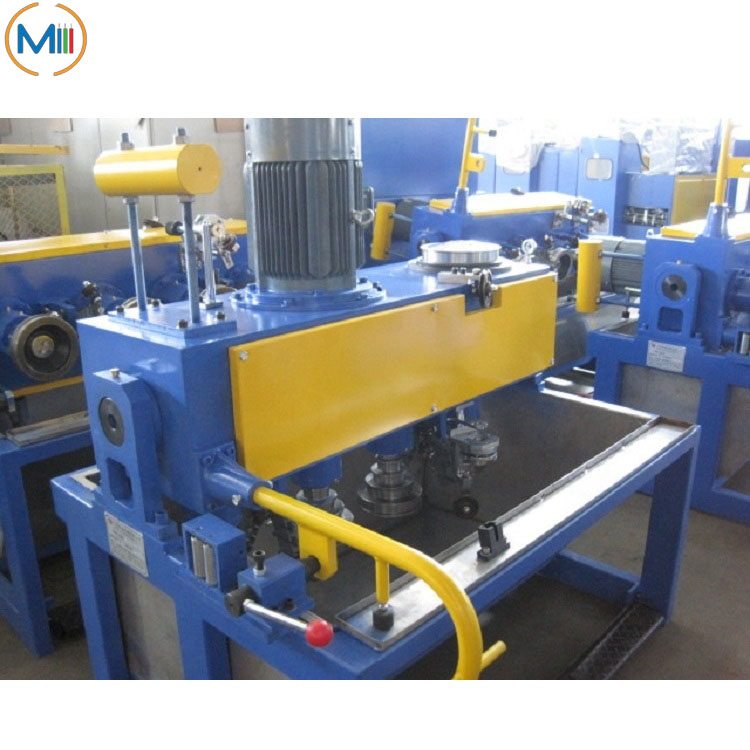

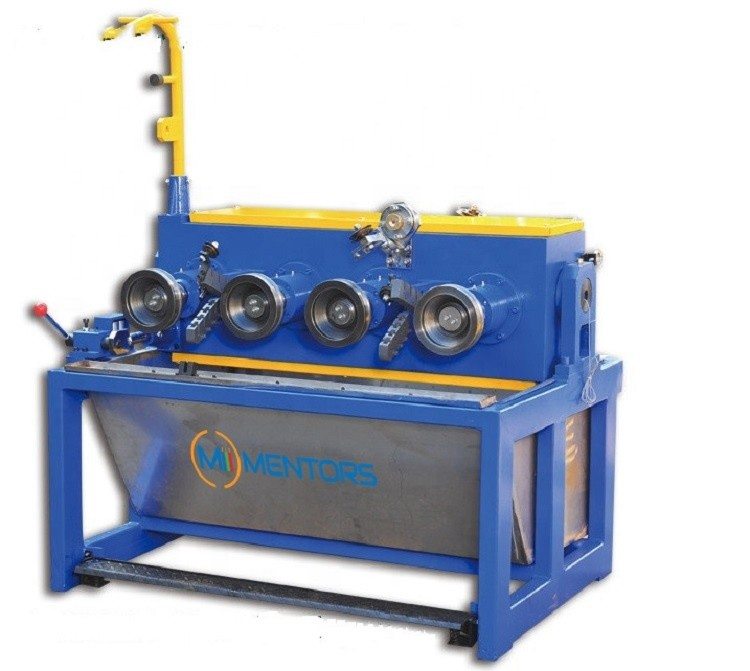

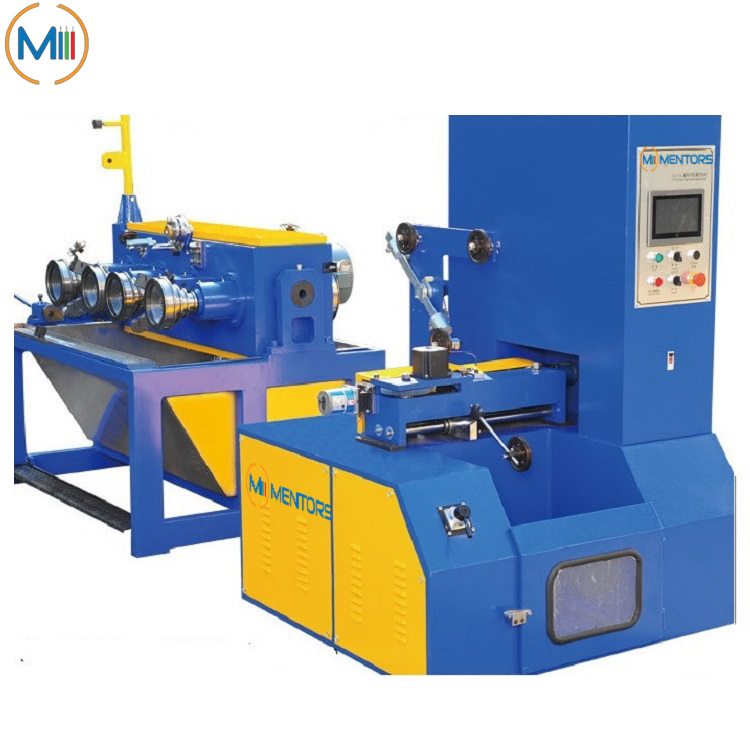

Nickel Alloy Wire Drawing Machine is special for drawing Nickel or Copper Alloy Wire with size range 0.20-1.20 by 9 dies type.
2.Parameters:
| Machine type | SY-FZ9 |
| Control system | Dual inverter+PLC+HMI |
| Drawing dies No./Max. | 9 |
| Max. Inlet diameter | Ø 1.50mm |
| Outlet diameter | Ø 0.80-1.20mm |
| Max. Drawing line speed | 240m/min |
| Capstan raw material | Tool steel |
| Main motor | 7.5KW |
| Spooler motor | 1.1KW |
| Spool bobbin size | DIN160/200/250
or according to customers requirements |
| Traversing unit | Stepping motor |
| Transmission type | Teeth belt + Flat belt |
| Lubrication type | Full immersed |
| Power source | 380V 50/60HZ or others |
3.Advantages:
1).It’s designed for alloy wire and high tension strength material.
2).Special tool steel Capstan can support long life.
3).PLC control, dual motor and dual inverter.
4).Special alignment device at final die position, keep wire verticality and quality, which is good for next process.
5).Stepping motor traverse, pitch adjustable, smooth traversing.
6).Protection device for wire disorder; Machine auto stop if mother wire disorder or break.
4.Delivery time: 45-60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
