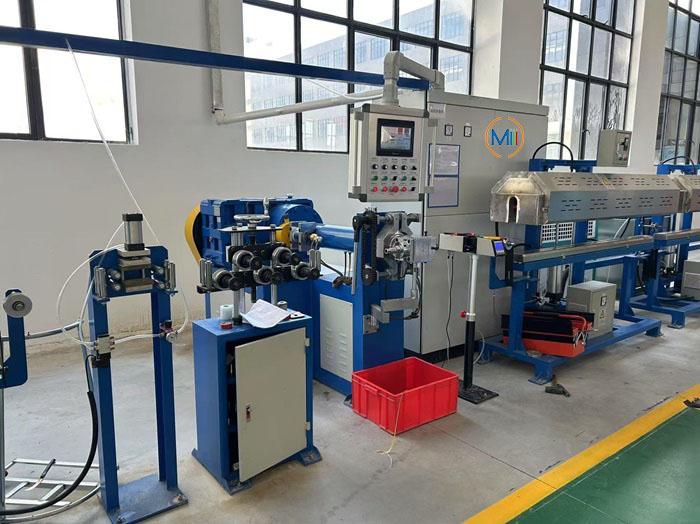

We had a meeting and discuss about the 90 Silicone Rubber Extruder.
In the beginning, the customer don’t know how to choose the machine’s model. After showing the running machine, then finally they got an idea.According to the customer’s demand, we recommend 90 Silicone Rubber Extruder for them. This extruder is special suitable for making Electric vehicle cables, which can produce higher quality silicone cables than ordinary PVC or PE extruder.In addition, we confirmed pay-off and take-up spool sizes and some configuration requirements.The advantages of 90 Silicone Rubber Extruder are as follows.
1.Compared with other extruder, this extruder has special vulcanization system—hot air or far infrared vulcanization furnace.The wire needs to be continuously hot air or far infrared vulcanization after extrusion, which is different from the cooling molding process of the ordinary extrusion production line.

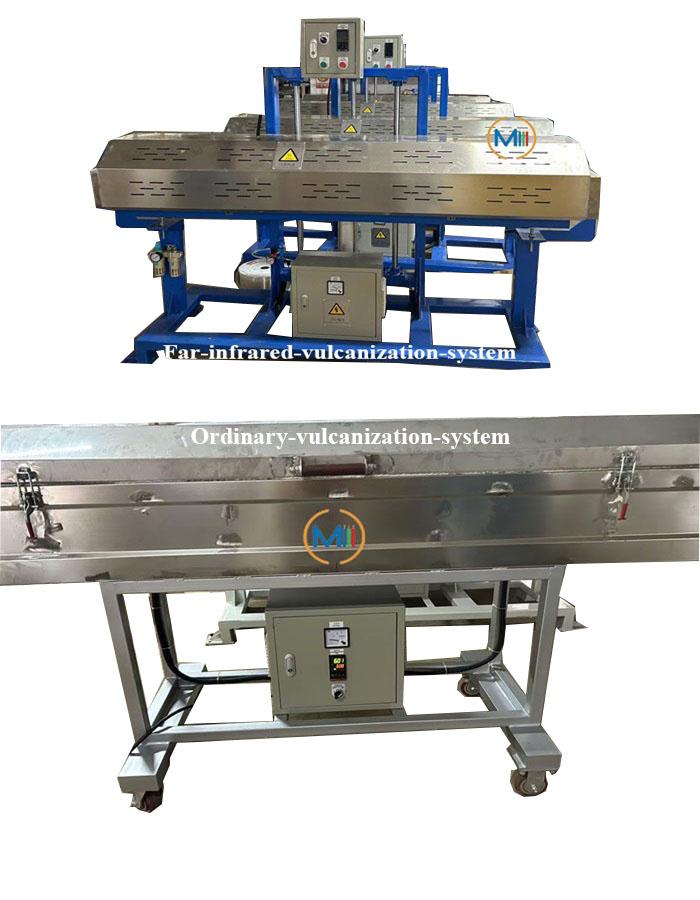

The main differences between different types vulcanization furnace as following:

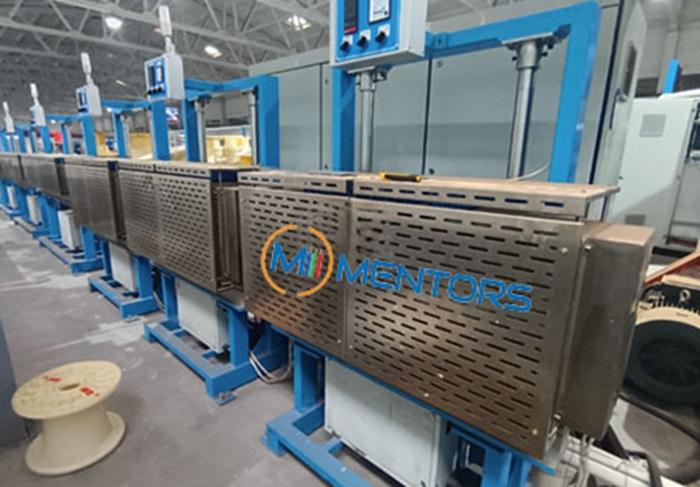

1.1 Far infrared vulcanization furnace :improve the speed and effect of silicone cable vulcanization effect.When the machine is stopped, the vulcanization box is instantly raised 1 meter high, and the silicone cable that has been done completely leaves the vulcanization box to prevent it from burning out.
1.2-The vulcanization speed of the ordinary furnace is not as fast as that of the infrared ray, and need use one steel wire must be used as traction to prevent the cable from being burned out when the machine is shut down.The operation with lifting function is more convenient.
For this part, if budget is enough, then suggest choose Far infrared vulcanization furnace.
2.The cylinder, screw and dies of the silicone extrusion equipment are mostly made of high hardness alloy or stainless steel (such as SUS304/316) to avoid adhesion or contamination of the silicone material.
3.Due to the high fluidity of silicone, the equipment has higher processing accuracy to ensure that the size of the product is stable.
4.The 90 Silicone Rubber Extruder avoids deformation or uneven stretching of the silicone wire during traction through precise tension control.
5.Before the extrusion starts, using rubber mixing mill for mixing the half-finished silicone rubber, and the mixed raw material can be used for silicone rubber extruder directly.
This customer is the first time to producing the silicone cable. But they don’t need to worry about it. Mentors will offer the whole solutions to make sure they can produce the qualified product and win the market. Choosing Mentors also means fast response and technical support throughout the whole life of the machine.
If you also have this kind of request, let’s discuss more.
