New Design Copper Rod Breakdown Machine
The machine is used for drawing copper rod from 8.0mm to 2.0-4.0mm.
Feature:
1).Ironed cast
2).Rapid die change system
3).Capstan Diameter: 450mm
4).Max.Dies Quantity: 9
5).Speed Range: 20m/s
Description
1.Application:
The machine is used for drawing copper rod from 8.0mm to 2.0-4.0mm.
Outlet wire can go to dual take up device or coiler.
2.Parameters:
| Item | LHD450/9 |
| Inlet Wire Dia.(mm) | Ø 8 |
| Outlet Wire Dia.(mm) | Ø 2.0~4.0 |
| Max Die No. | 11 |
| Max. Line Speed(mm) | 20 |
| Main Motor(KW) | 280 |

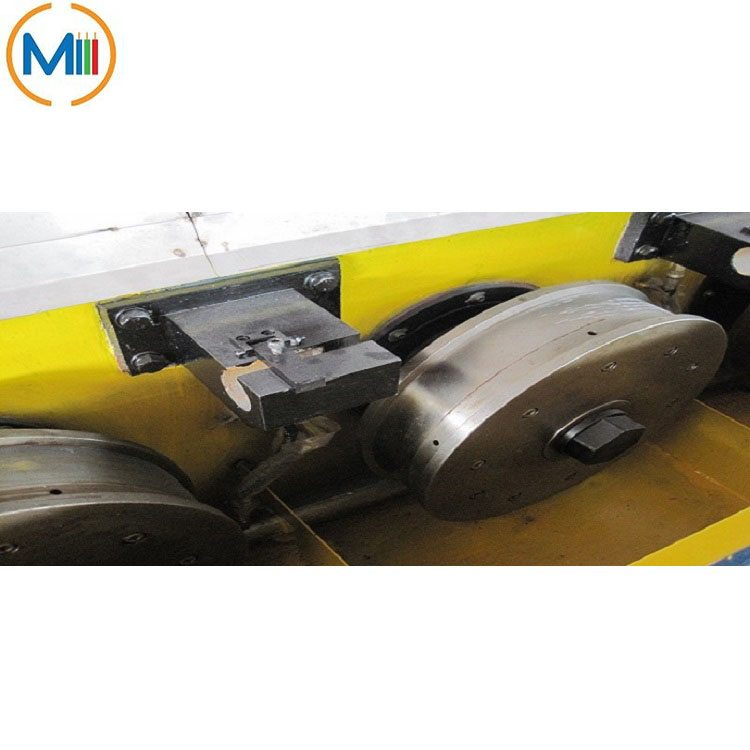

| Drawing Capstan | Coated with tungsten carbide |
| Take-up type | Dual-spool take-up, drop coiler, compact coiler |

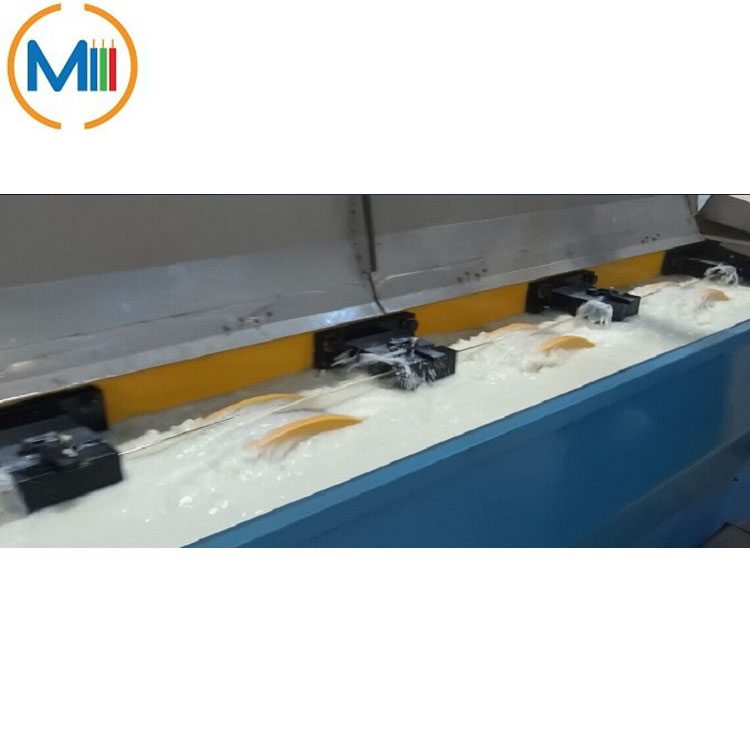

| Lubrication Type | Immersion and spraying |
3.Advantages:
1).Iron cast gear box body ensure long life with low noise
2).Horizontal structure, operate easily.

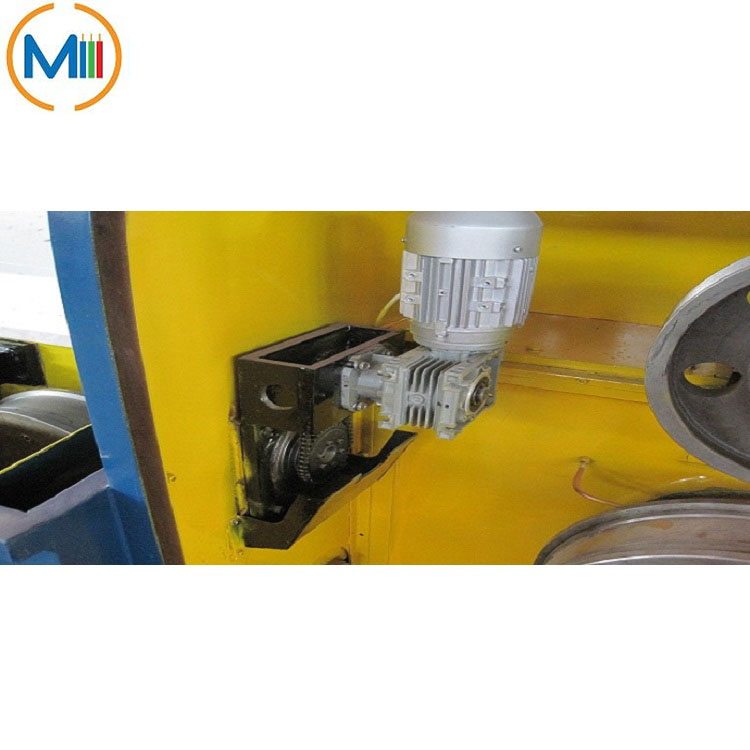

3).Fast die change system keep high efficiency when produce different diameter.
And dies quantity decrease a lot at the same time.
4).The capstan is coated with tungsten carbide power can support long life
5).High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
6).PLC and touch screen controlled type, parameters can be set and display easily.
4.Delivery time: 90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
