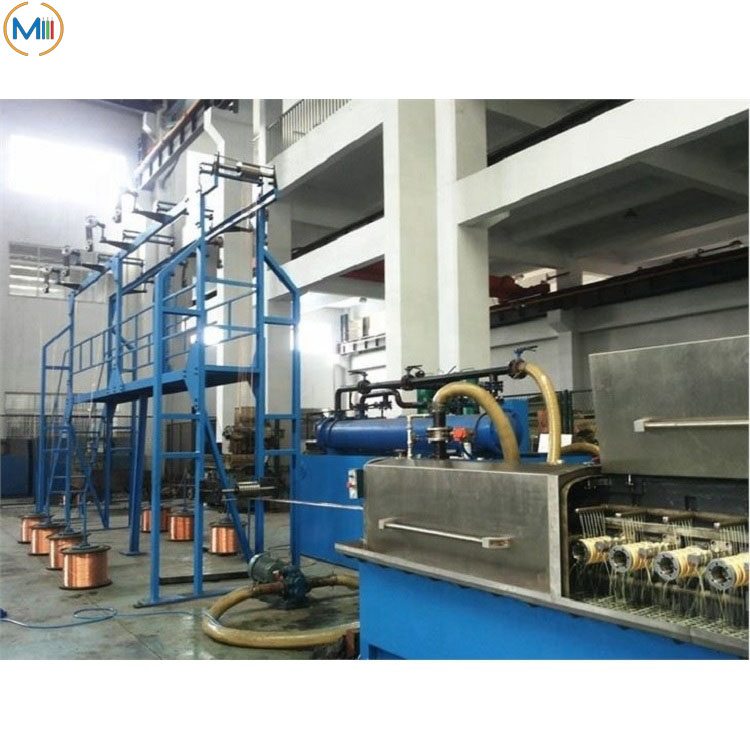

Multi Wire Drawing Machine with Annealing for 16 wires

Multi Wire Drawing Machine with Annealing for 16 Wires provides dies quick change system which can realize efficient production.

Feature:

1). Wire quantity: 16 wires

2). Max.Inlet wire: 2.6 mm, outlet wire: 0.15-0.4mm

3). Raw material: pure copper

1. Application:

This machine is mainly used for drawing copper wire to 0.16-0.40 mm wire.

It is equipped with up to 25 Dies and the max drawing speed can reach 25m/s.

2. Parameters:

Machine Type	SY100-16-25
Drawing Wire No.	16 Wires
Max. Die No.	25
Max.Inlet Dia.(mm)	1.6/1.8
Outlet Dia.(mm)	0.16 ~ 0.40
Drawing Capstan Dia. (mm)	100
Max.Drawing Speed.(m/s)	25

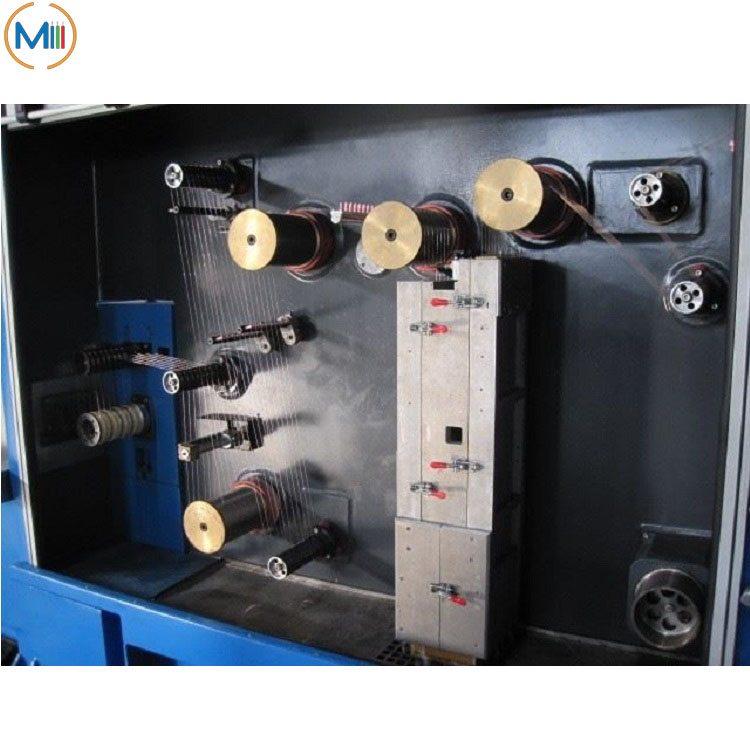

Annealing current (A)	2500
Annealing voltage (V)	60

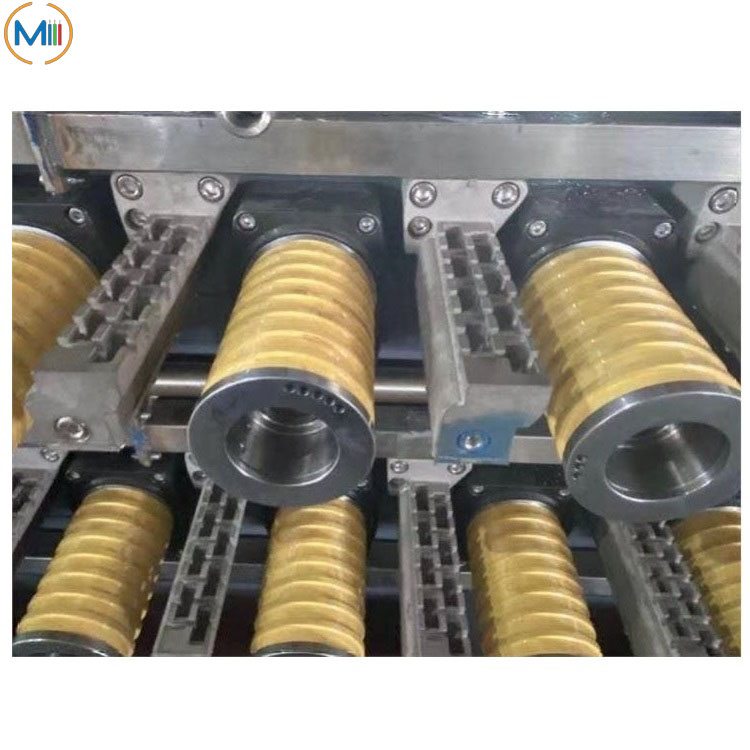

Drawing capstans structure and material	Double layer 8 grooves, made from stainless steel, With ceramic zirconium oxide capstans.
Drawing lubricant	Drawing lubricant: about 1.2 bar at the machine， inlet temperature: 30-45°C， twin pump system design to ensure stable Drawing Lubricant supply.
Machine Construction	Individual Lubricant supply for Gearing and bearing system.
Machine Construction	Casting for integral frame and gearbox.Annealing and the tempering treatment Frame body.longer production life. And high stability and less vibration.
Gearing	The transmission shaft of the Production Line and gears at all levels are tempered and ground. The hardness is HRC56-60, the fineness is above 0.8, and the gear accuracy is above grade 5 of the national standard.

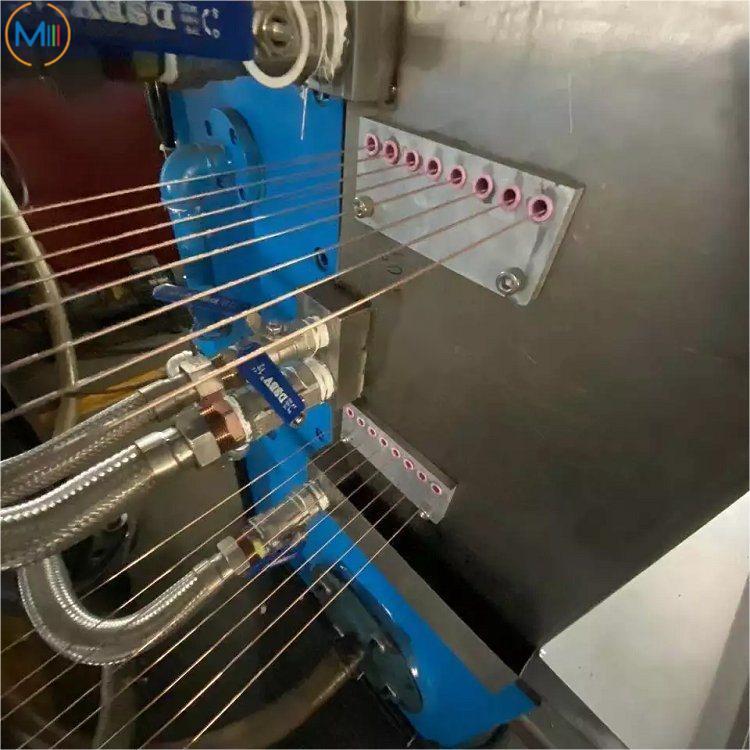

Quick Die Change System	Equipped with a quick die-change system. Outlet range between 0.16-0.40mm, and three sets of drawing dies are configured. Among these two sets of wire drawing dies, drawing dies corresponding to the outgoing line specification are configured to realize quick die-change.
