1.Application:

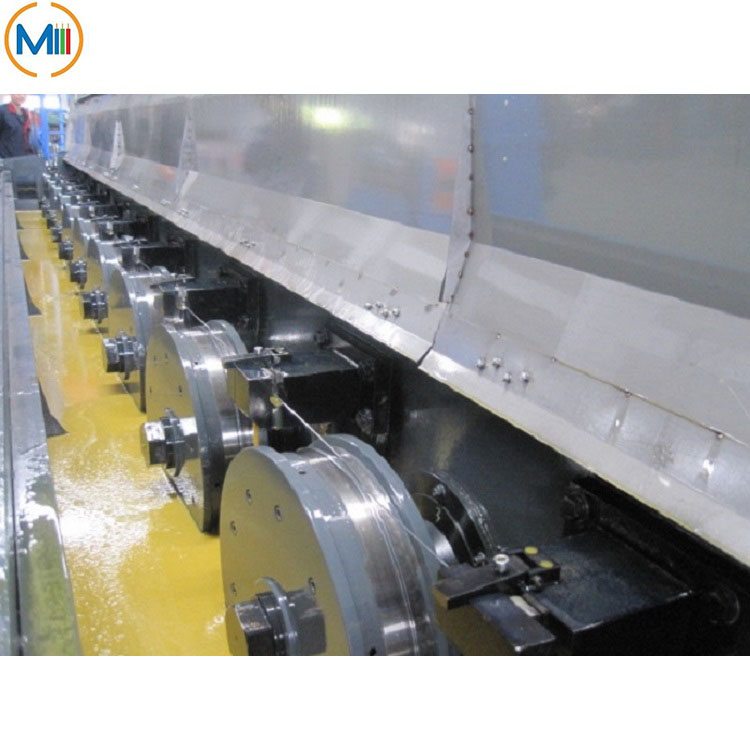

The machine is used for drawing Al Rod from 9.0 mm to 1.8-4.2 mm with middle speed,followed by dual spool take-up.The double-spool take-up device adopts a pneumatic system, which has fast response speed and stable operation, ensuring that the reel can be changed without stopping the wire, and has high productivity. And capstan is coated with tungsten carbide power. Both sides can use for supporting long life.
2-Parameters:

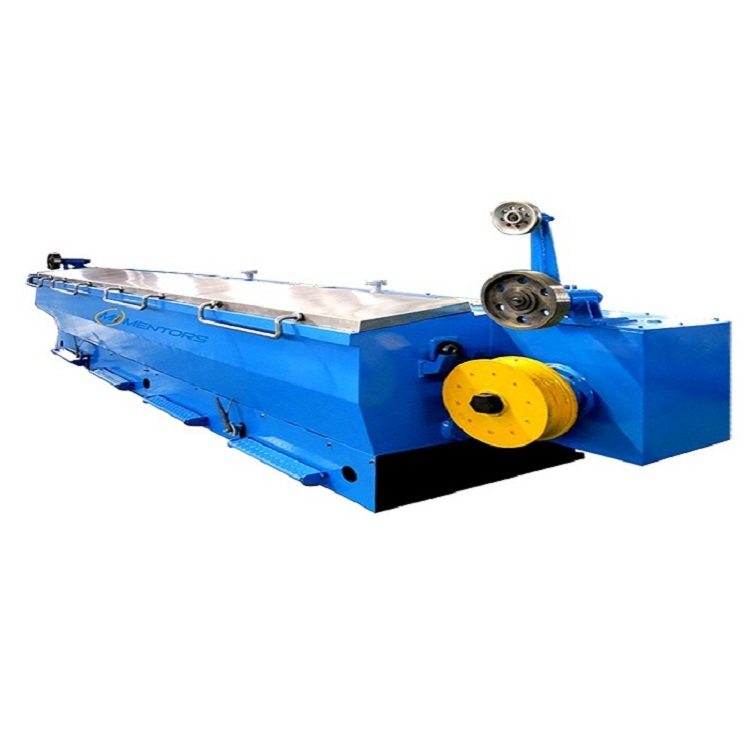

| SY-LHD400/13 Al Rod Breakdown Machine | |
| Machine type | SY-LHD400/13 |
| Inlet Dia. (mm) | Ф9.5 |
| Outlet Dia. (mm) | Ф1.8-Ф4.2 |
| Drawing drum Dia. (mm) | Ф400 |
| Max. Die No. | 13 |
| Drawing speed (Max) (m/s) | 15 |
| Main motor (KW) | 132(DC) |
| Drum arrangement | Horizontal type |
| Drawing drum | Coated by tungsten |
| Drum lubrication type | Immersed type |
| Take-up bobbin | PND 630 / PND 500 |
| Take-up motor (KW) | 22 |
| Take-up bobbin loading type | Pneumatic type |
3.Advantage:

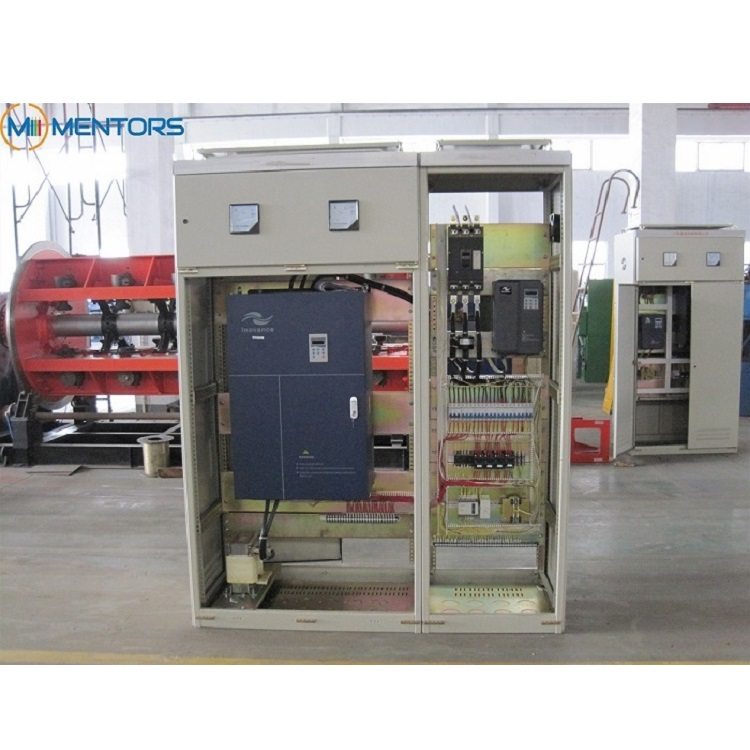

1) Motor With inverter controlled, energy saving.
2) Iron cast gear box body ensure long life with low noise.
3) Precision grinding gear (gear material: 20CrMnTi), with oil lacking protection system.

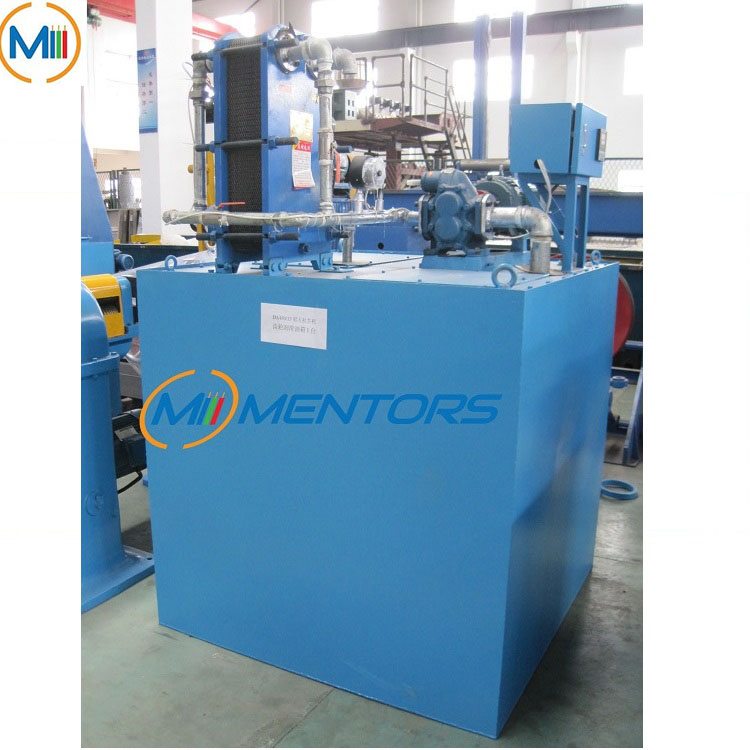

4) Capstans and dies are cooled by both half-submerged and sprayed emulsion to ensure a complete cooling and lubrication.
5) Economical equipment. Max speed range from 10-15 m/s. It’s the best choice for middle level factory production request.
4.Delivery time: 90 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
