Special seal system between the gear box and drawing section to prevent oil leakage and mixed.

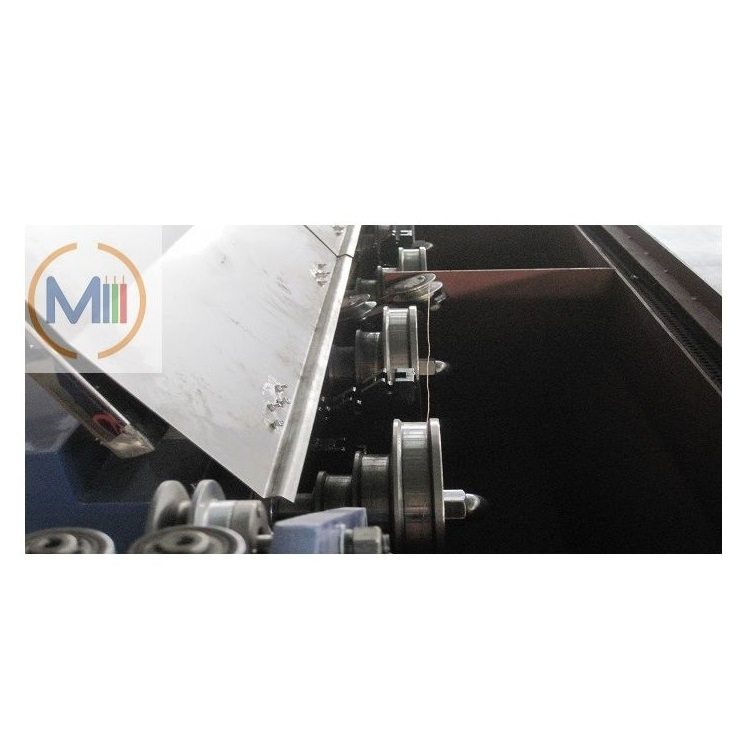

Ironed cast and Wear-resistant capstan of Medium Wire Drawing Machine can keep long life.
Smaller mechanical reduction ratio to reduce the wire break frequency.
Main feature:
(1) Max.Dies Qty: 17
(2) Outlet wire size: 0.40-1.20 mm
(3) Max speed:20 m/s
1. Application:

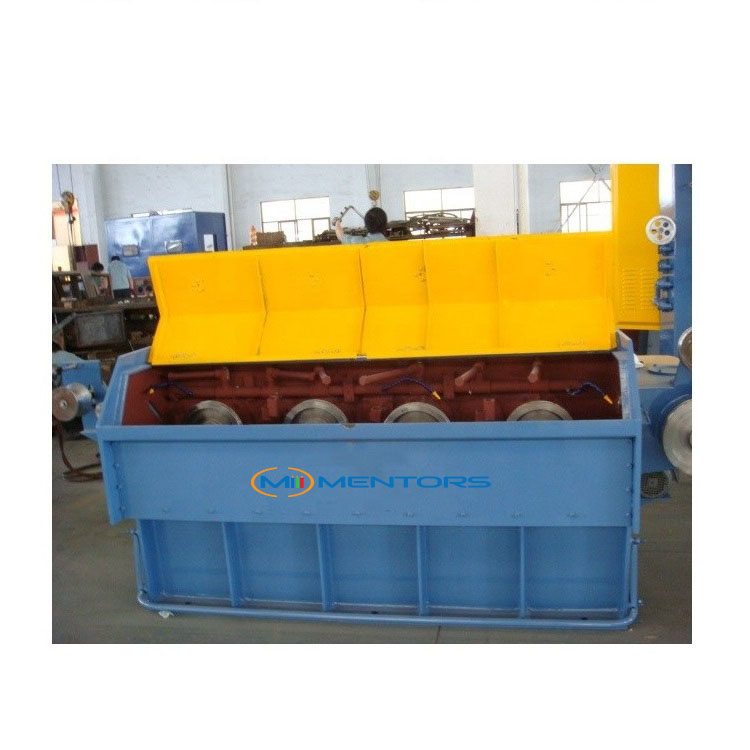

Medium Aluminum Wire Drawing Machine is used for drawing wire from 3.0 mm to 0.40-1.20 mm.
Outlet wire can be collected by single spool take up.
2.Parameters:
| Machine type | SY-17DL |

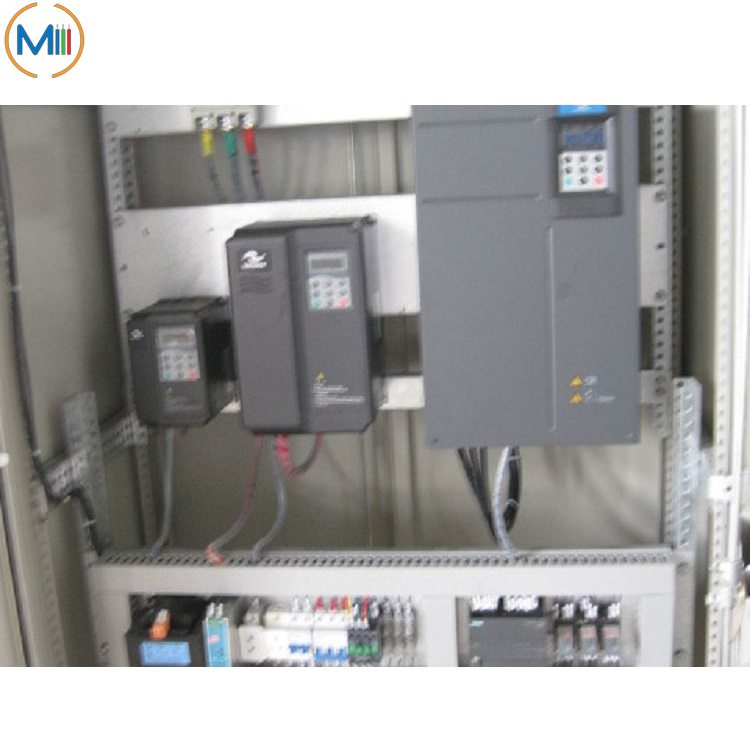

| Control system | PLC |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 17 |
| Inlet diameter | Ø 2.5- 3.2 mm |
| Out diameter | Ø 0.4- 1.2 mm |
| Drawing line speed /max | 1200 m/min |
| Slip ratio of m/c | 18% |
| Fix speed capstan slip ratio | 15.5% |
| Frame | Ironed cast |
| Capstan | Carbon fiber
plasma capstan |
| Main motor | 37 kw |
| Spooler motor | 11 kw |
| Fix speed capstan dia. | Ø 250 mm |
| Dia. of annealing | Ø 250 mm |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 1500 A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 500 mm or according to customers |
| Optional take-up machine | Coiler |
3.Advantages:
1. This machine is suitable for drawing aluminum or aluminum wire with smaller reduction ratio 15~18%.
2. Wear-resistant capstan can keep long life.
3. Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
4. Besides normal Aluminum wire, also is a good choice for welding wire.
4.Delivery time: 45-60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
