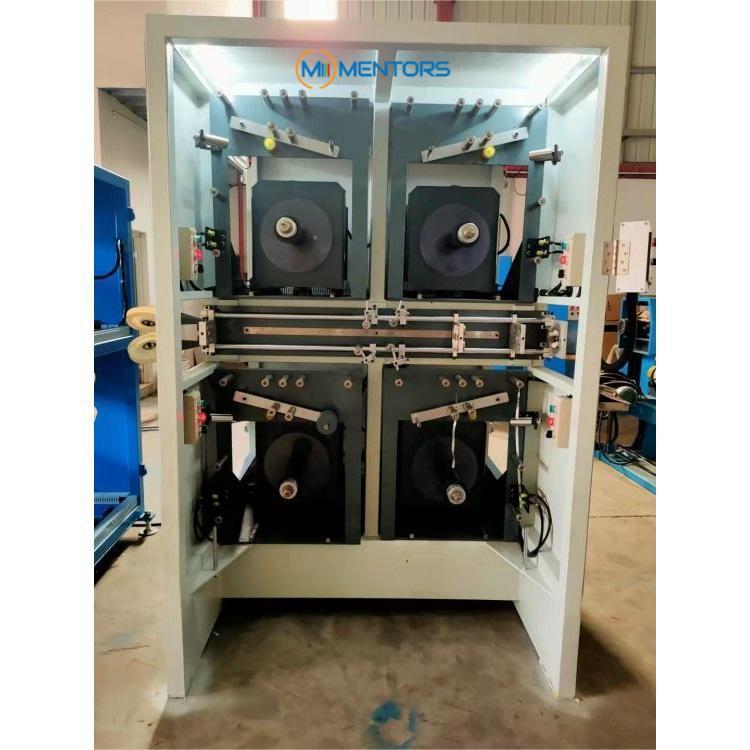

Lan Cable Straight Taping Machine
1. Core wire diameter：2.0-10.0mm
2. Spooler tape size：
OD max.350
Width Max.300
Bore size 76mm
3. Pad tape size：
OD Max.500
Width 7-16mm
Bore size 76mm
Description
1. Application:
This machine is used to continuously foiling each pair of the Lan cable, precise tension control, can used for cat7 and cat8.
Uaually used together with Lan cable laying up machine.
2. Parameter:
| Core wire diameter | 2.0-10.0mm |
| Line speed | Same as the main machine |
| Suitable material | Aluminum foil tape |
| Spooler tape size | OD max.350
Width Max.300 Bore size 76mm; |
| Pad tape size | OD Max.500
Width 7-16mm Bore size 76mm |
| Tension control | Counter weight tension control, move the slide block to change the pay off tension, with tension test sensor and digital displayer to display the tension actively
Tension range 30-300g. |
| Traverse | 4 sets of 0.75KW China Sinee servo motor drive screw rod, aluminum spooler moving for traversing, keep the tape pay off point fixed, avoid tape wrinkle or folding, makes for the foiling smooth and even. |

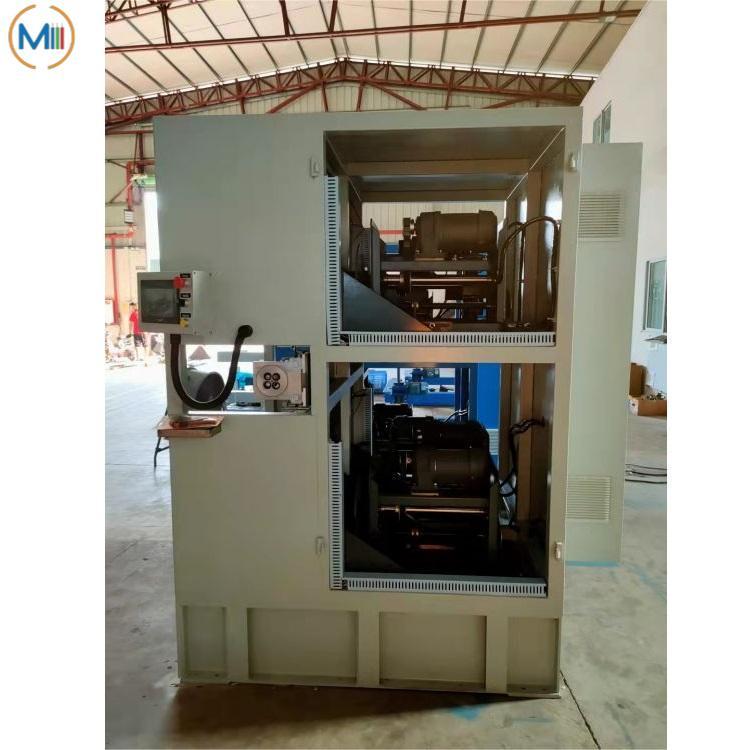

| Driven power | 4 sets of 0.75KW Siemens Beide motor drive, China Sinee drive control speed |
| Electrical control system | Traverse range and traverse pitch can set on HMI, tape break/tape finish machine auto alarm and stop. |

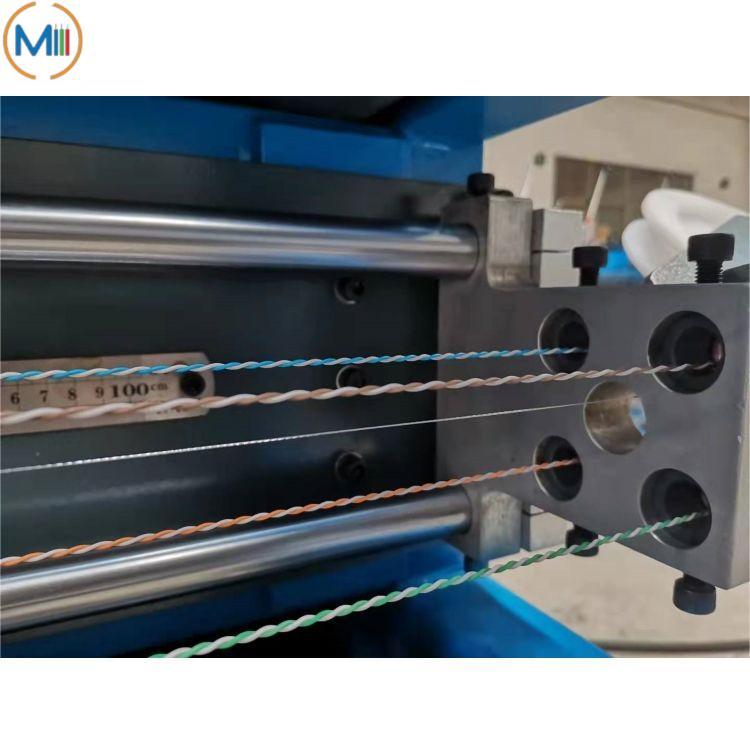

| Tape die | With four ceramic taping die in the center and one plastic die after the foiling point. |
3. Advantage:

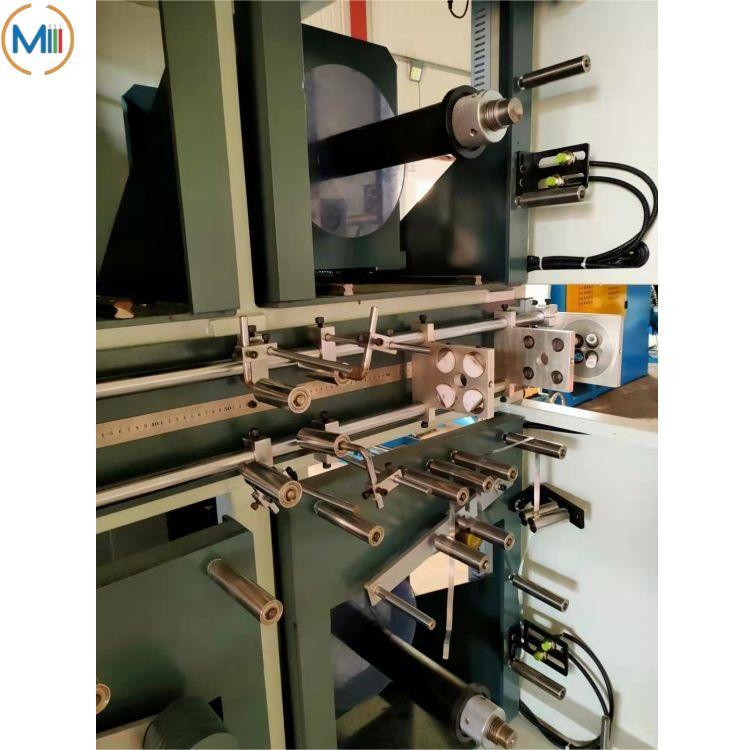

(1) Swing rods tension control, adjust the tape tension by increasing or decreasing the counterweight, and the tape tension remains constant from full spool to empty spool.
(2) Adopt PLC intelligent control system,tape break,wire break,tape finish auto detect;machine auto alarm and stop.Easy to operate,reduce tape waste.
(3) Self-centered active longitudinal taping machine equipped with auto correction system, can used for spool tape, ensure center point tape pay off, avoid tape turn over, wrinkle in taping process,ensure shielding performance.
4.Delivery time: 60-90 working days
5.After-sell service.
The engineer will be dispatched as needed
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and securitly as well as each person of daily wage
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
