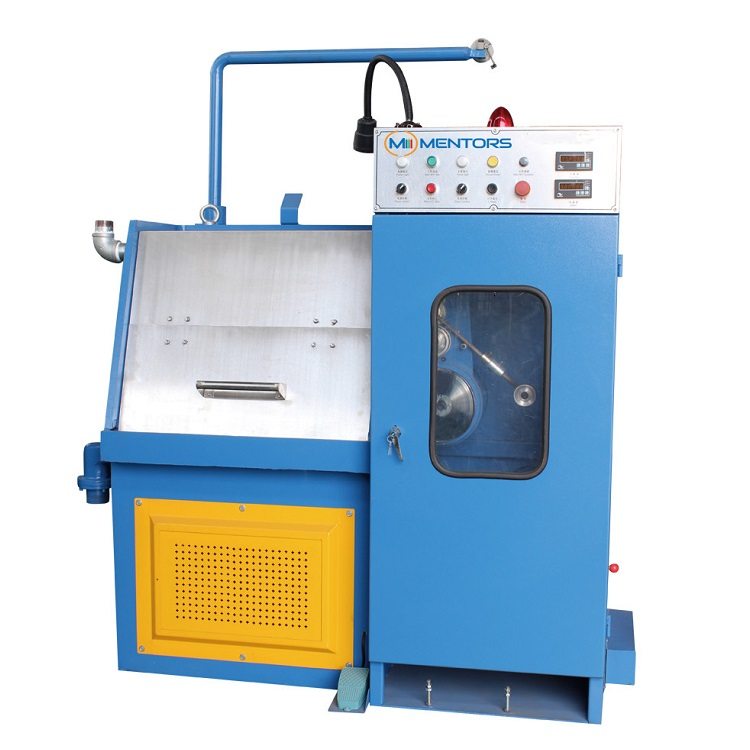

This fine wire drawing machine is special for drawing CCA wires 0.1-0.5mm.
Finished wire is wound by the 300 steel bobbin.
Main feature:
1)Max.Dies Qty: 14
2)Outlet wire size: 0.25-0.5mm
3)Max speed: 12000m/min
4)Raw material: CCA wire
5)Vertical or horizontal cones structure.
1. Application:
This machine is used for drawing CCA wires from 2.05 to 0.25-0.5mm
2.Parameters:
| Machine type | SY-14D |
| Inverter control | Double inverter control |
| Body structure | two cones in horizontal |
| Max. Inlet Dia. (mm) | 2.05 |
| Outlet Dia. (mm) | 0.25~0.50 |
| Max. Die No. | 14 |
| Max. Line speed (m/min) | 1200 |
| Body structure | Ironed cast |

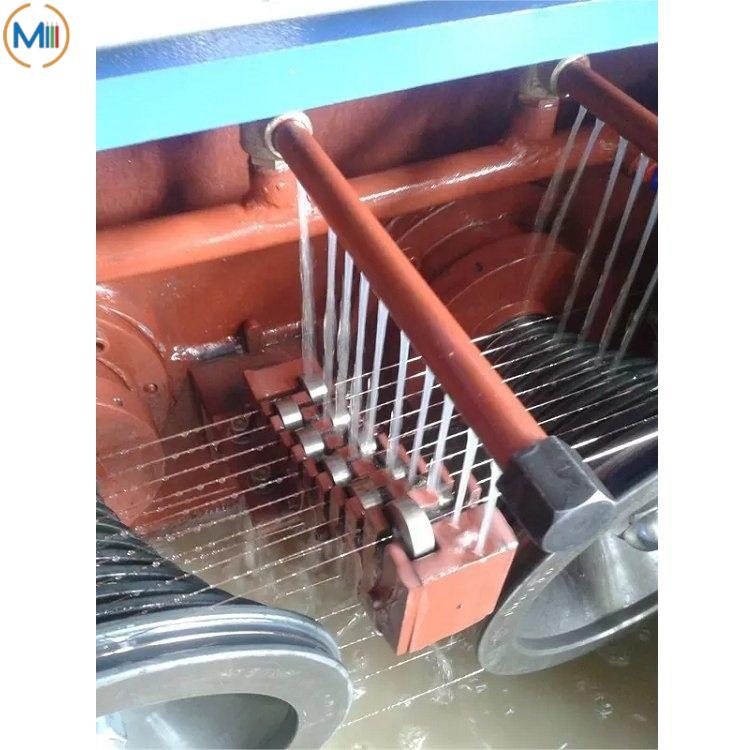

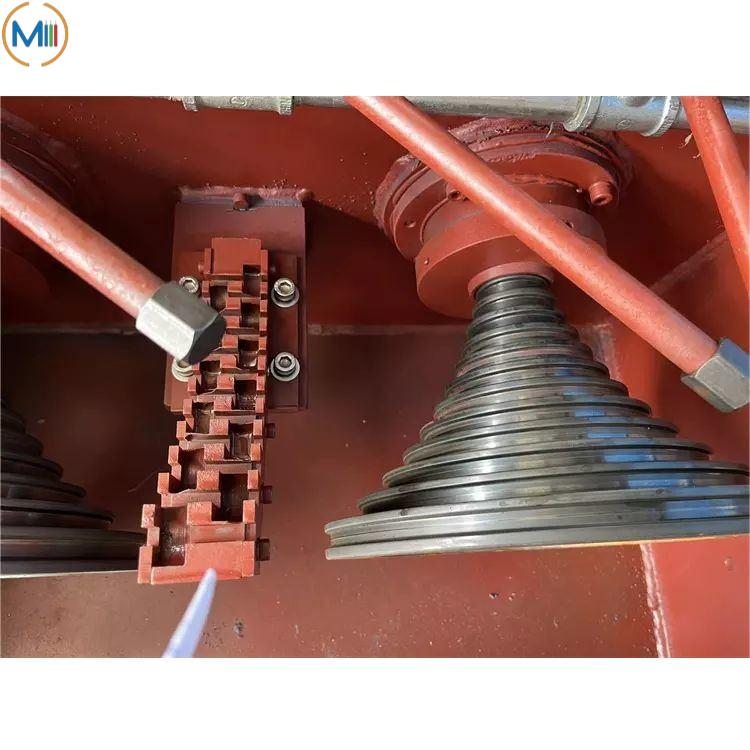

| Drawing capstan | Ceramic plasma capstan |
| Slip ratio of m/c ( % ) | 15 |
| Fix speed capstan Dia.(mm) | Φ268 |
| Transmission type | Belt |

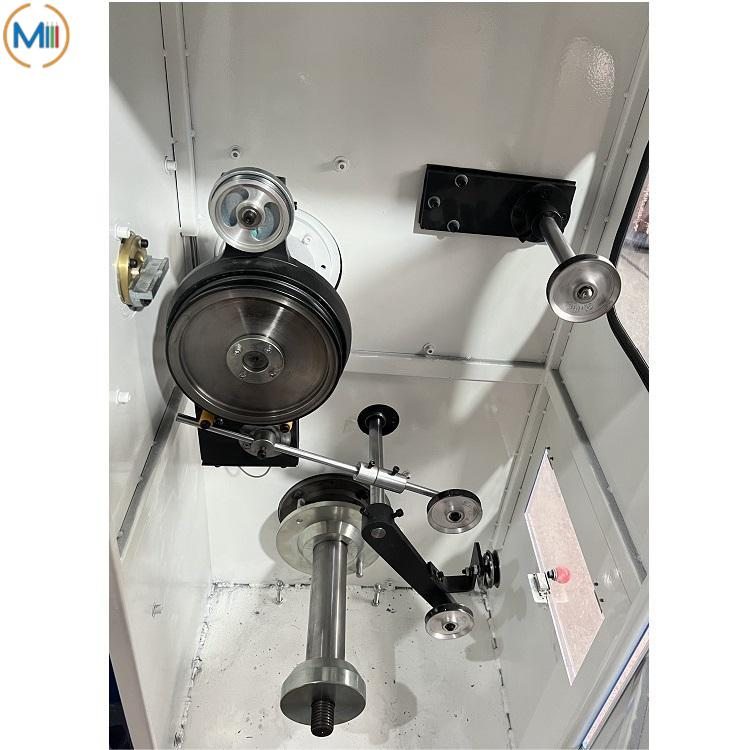

| Take-up bobbin size (mm) | Φ300-400 |
| Traversing type | Synchronous motor +belt |
| Tension control | Weight balance type |
| Lubrication type | Spray |
| Brake | Magnetic brake |
| Weight (KG) | 2200 |
3.Advantage:
1).Compare to copper wire drawing machine, use less power to save electricity cost.
2).Smaller mechanical reduction ratio to reduce the wire break frequency.
3).Ceramic coated capstan can keep long life.
4).Ironed cast body without shock heavily.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
