This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.Outlet wire can be collected by single spool take up or coiler.
Main feature:
1) Max.Dies Qty: 17.
2) Outlet wire size: 0.40-1.60 mm.
3) Max speed:25-30 m/s.
4) Vertical annealing.
1. Application:
This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.
2-Parameters:
|
No
|
Item
|
Data
|
|
1
|
Machine type
|
SY-17DHT/B
|
|
2
|
Control system
|
PLC
|
|
3
|
Inverter control
|
Dual inverter control
|
|
4
|
Drawing dies No./max.
|
17
|
|
5
|
Inlet diameter
|
Ø 2.5- 3.5mm
|
|
6
|
Out diameter
|
Ø0.4- 1.6mm
|
|
7
|
Drawing line speed /max
|
2000m/min
|
|
8
|
Slip ratio of m/c
|
20%
|
|
9
|
Fix speed capstan slip ratio
|
15.5%
|
|
10
|
Frame
|
Ironed cast
|
|
11
|
Capstan
|
Carbon fibre
plasma capstan
|
|
12
|
Main motor
|
55kw
|
|
13
|
Spooler motor
|
11kw
|
|
14
|
Fix speed capstan dia.
|
Ø 250mm
|
|
15
|
Dia.of annealing
|
Ø 250mm
|
|
16
|
Annealing voltage
|
DC 0-60V
|
|
17
|
Annealing current
|
DC 2000A
|
|
18
|
Protection type
|
Steam or nitrogen
|
|
19
|
Spool bobbin size
|
Ø 500mm or according to customers
|
|
20
|

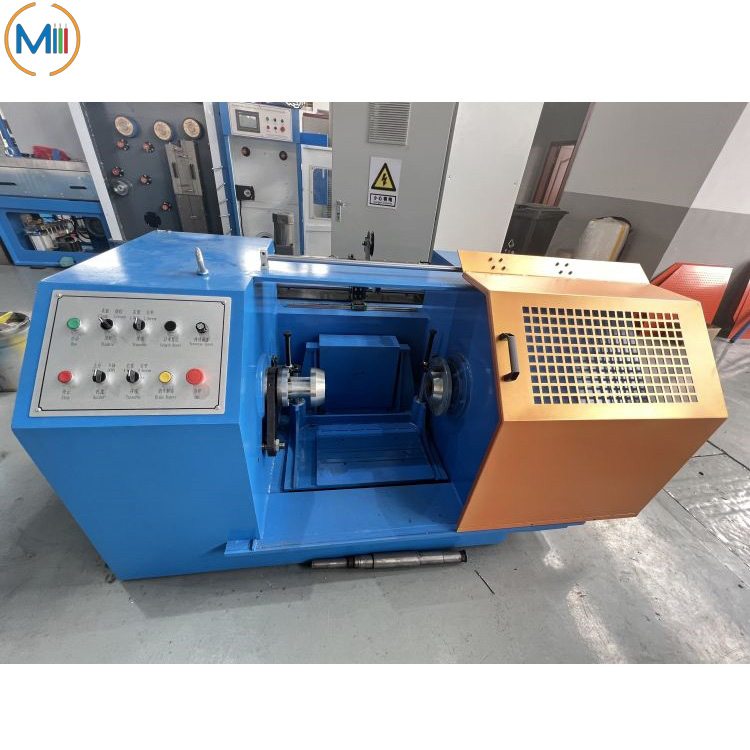

Optional take-up machine
|
Coiler
|

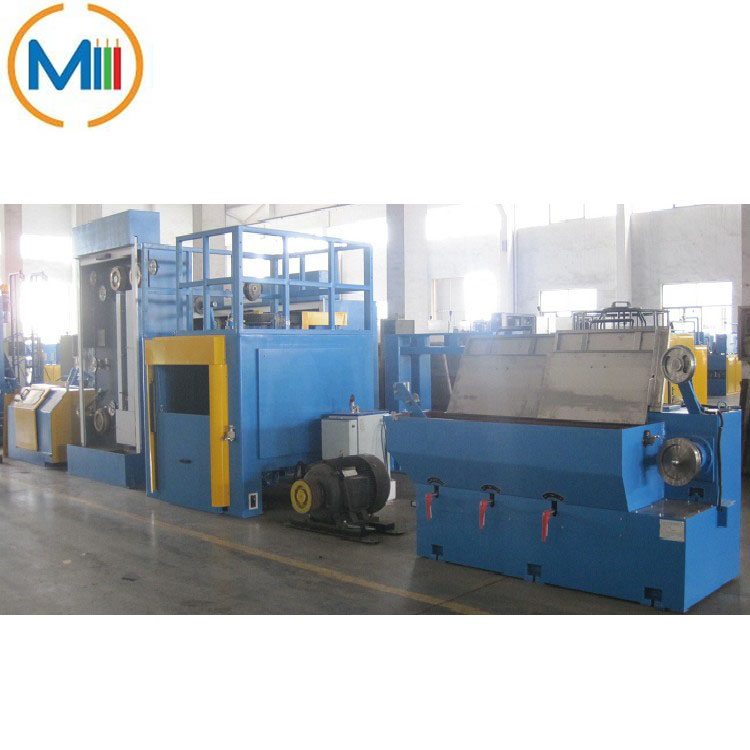

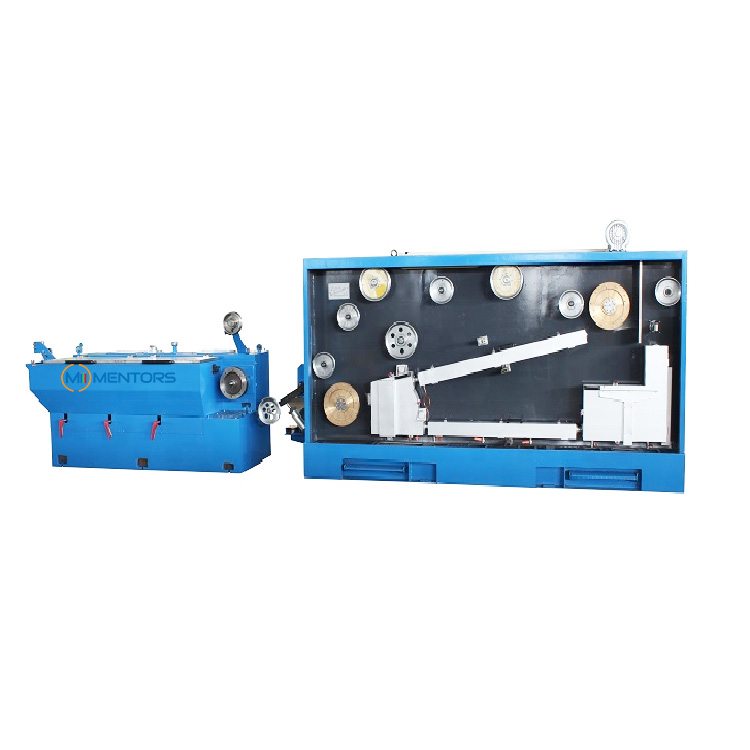

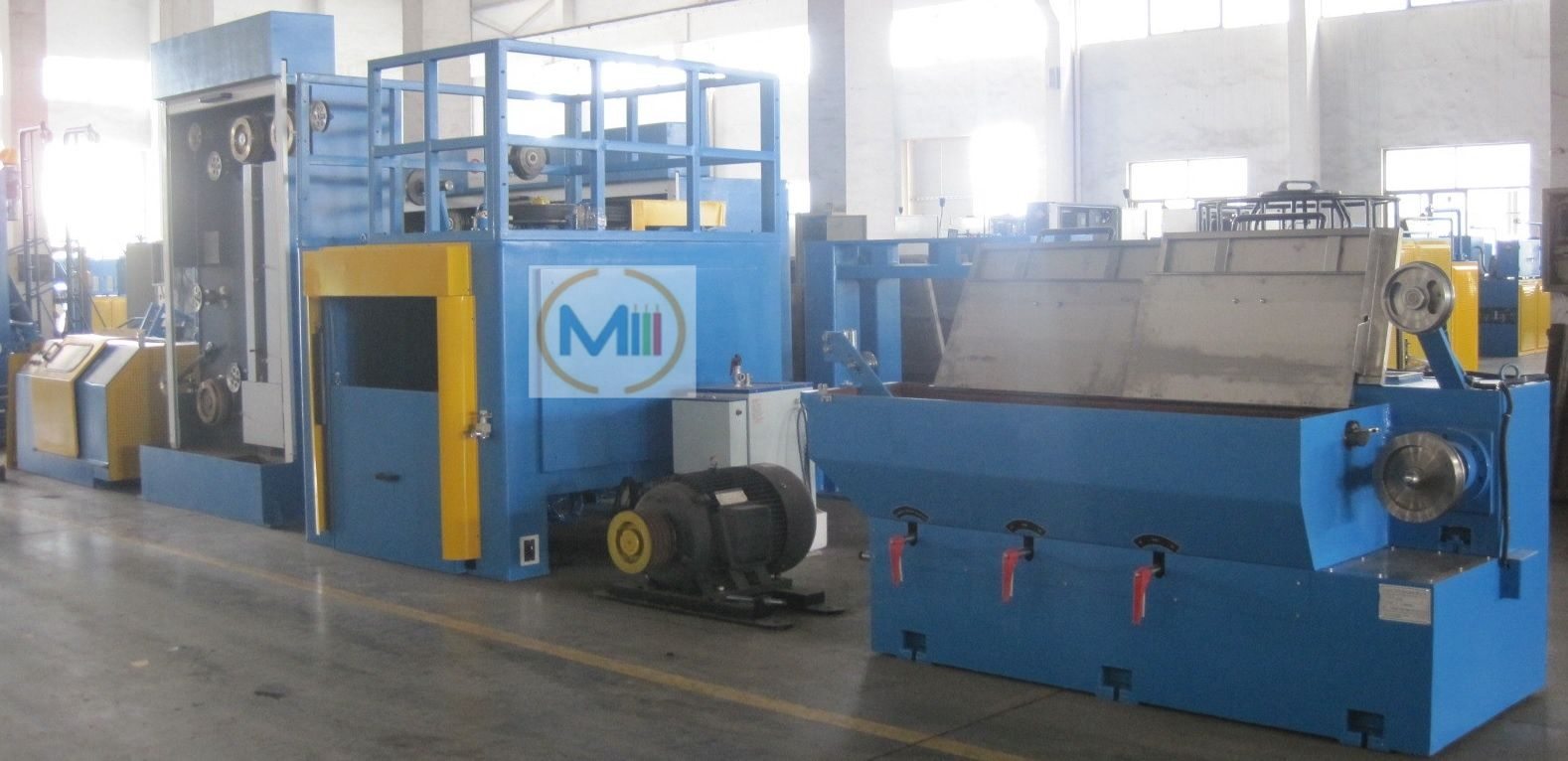

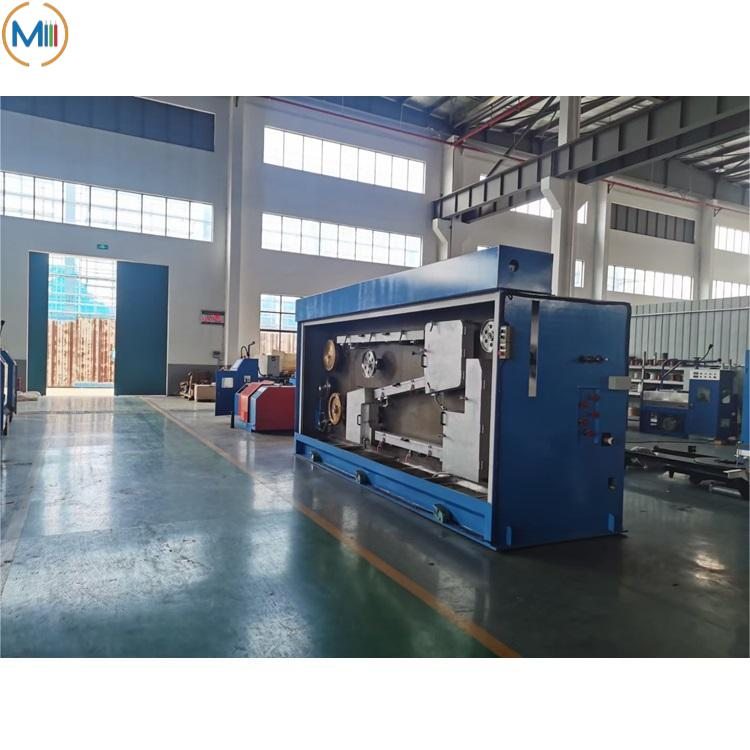

3-Photo show:
4-Advantage:
1). For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.
2). Ironed cast and Wear-resistant capstan can keep long life.
3). Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
4). Besides normal copper, also is a good choice for welding wire.
5). Horizontal annealing design is easily for operating.
6). Longer annealing section with tension ensure good and stable elongation.
5-Delivery time:45~60 working days
6-After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7-Guarantee: 12 months since shipping date(exclude easily wearing part)
