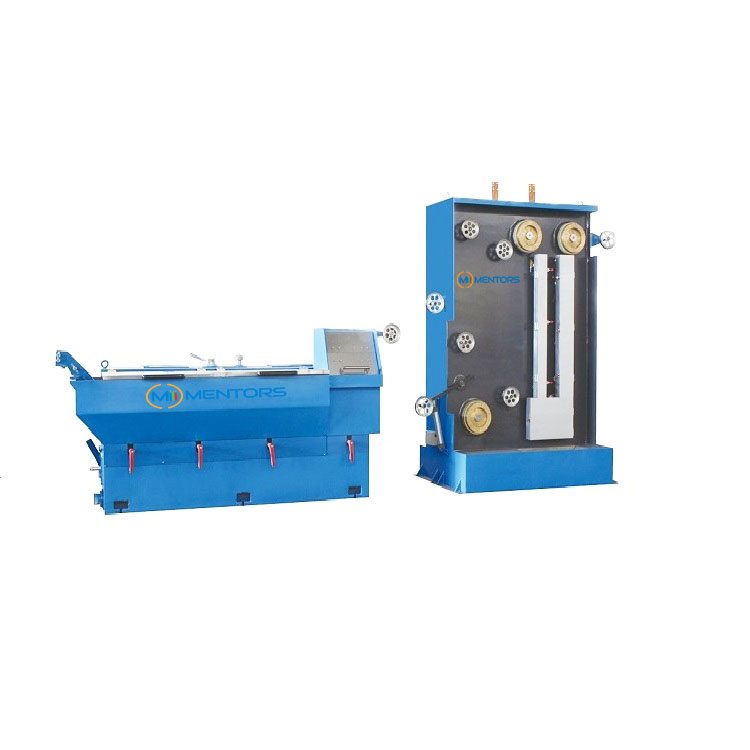

Intermediate Brass Wire Making Machine

Main feature:

1) Max.Dies Qty: 13

2) Outlet wire size: 0.8-1.6 mm

3) Max speed: 1200 m/min

4) Dual Inverter Control

1. Application:

Intermediate Brass Wire Making Machine is used for drawing and annealing pure copper wire, followed by online annealing.

Both single wire and two wires are available for choose.

2.Parameters:

Machine type	SY-13DHT
Inverter control	Dual inverter control
Drawing dies No./max.	13
Inlet diameter	2.6- 3.0 mm
Out diameter	0.8- 1.6 mm
Drawing line speed /max	1200 m/min
Slip ratio of m/c	15%
Frame	Ironed cast
Main motor	45 kw
Spooler motor	11 kw
Fix speed capstan dia.	250 mm
Spool bobbin size	Ø 500 mm or according to customers
Optional function	Coiler Annealing (85 V ×1200 A)

3.Advantages:

1. Adopting NSK or NTN Bearings and gear type transmission, lowing noise and high capacity.

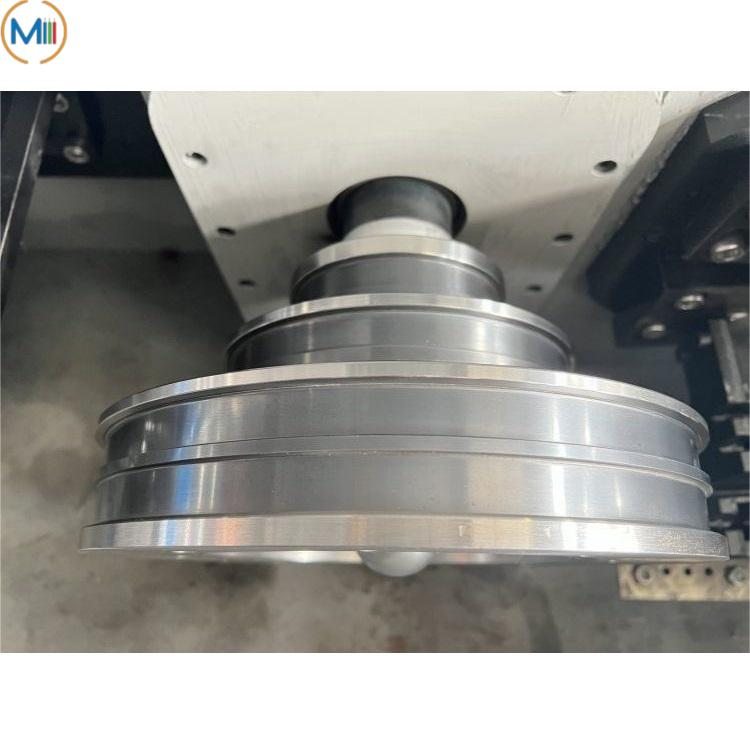

2. Drawing capstan use anti-wearing raw material, long working life.drawing parts using immersed lubrication type.

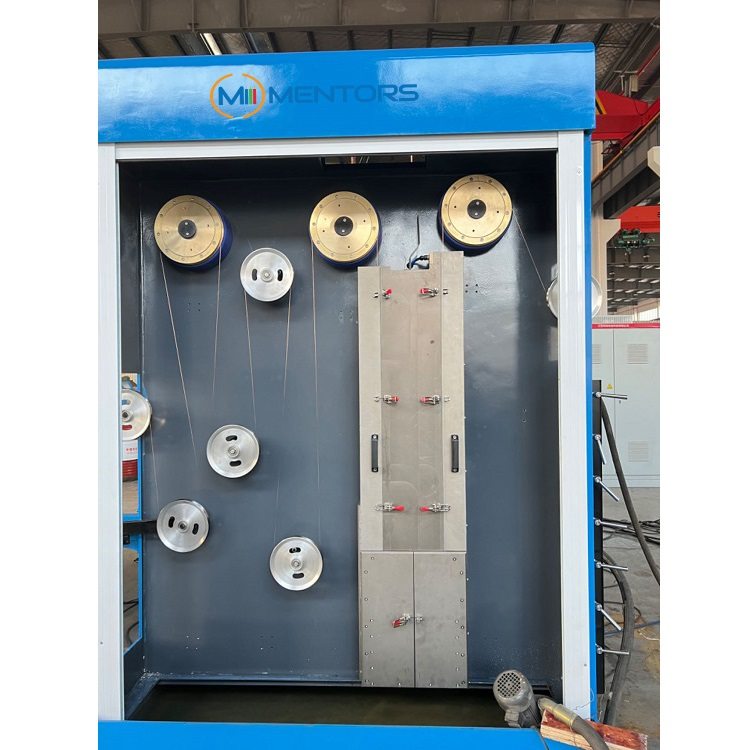

3. D.C current annealing designing,with full digital controlled, annealing voltage working with main drawing speed，ensuring stable elongation.

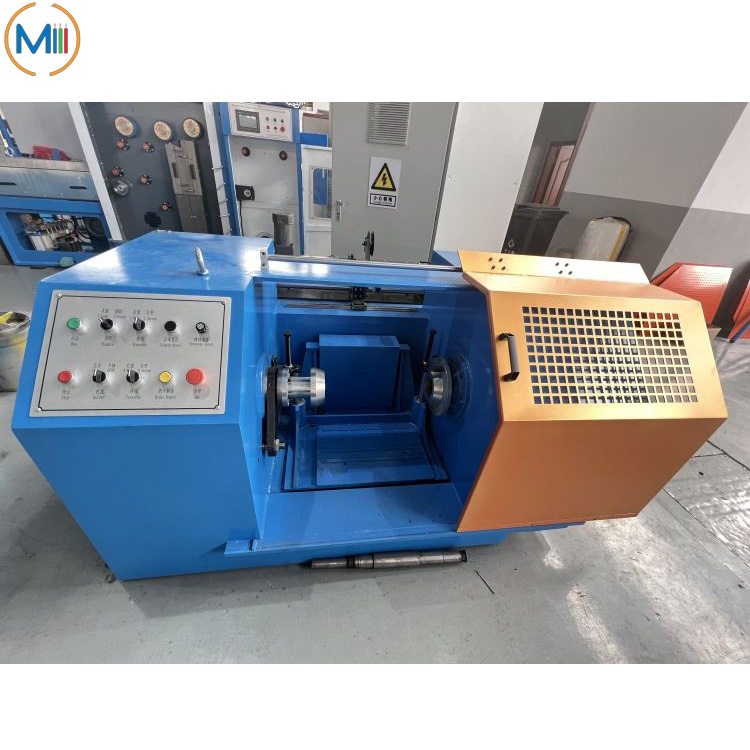

4. Adopting pneumatic clamping take-up,spools loading and unloading and clamping by air.

5. Intermediate Brass Wire Making Machine with special gear ratio and mechanical reduction ratio which is suitable for brass wire.

4.Delivery time: 45-60 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12 months since shipping date(exclude easily wearing part)
