Description
1. Application:

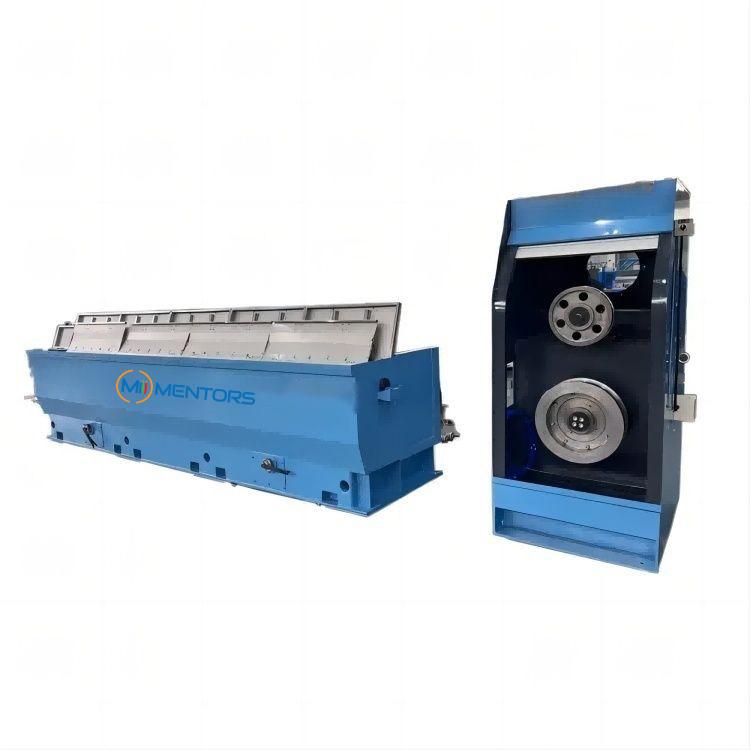

This machine is specially designed to draw the 8mm copper rod to 3mm, is individual motor controlled, and has high efficiency.
2. Parameter:
| Machine Type | SY-LHD450/6 |

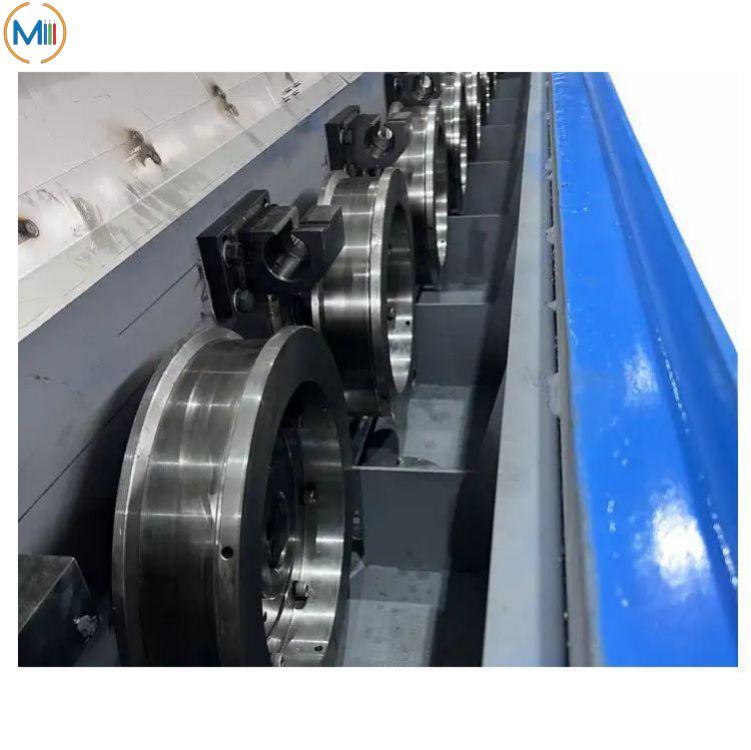

| Drawing Capstan Diameter | 450mm |
| Max. Die No | 6 |
| Main motor | 6 ×30KW~45KW |
| Inlet Wire Diameter | 8mm |
| Outlet wire Diameter | 3mm |
| Max.Drawing Speed | 1000m/min |
| Capstan Arrangement | Horizontal Type |
| Lubrication Type | Full Immersion |
| Take-up type | 800 Drop Coiler |
3. Advantage:
(1) Using individual motor control to achieve quick die change system technology when changing the outlet diameter.

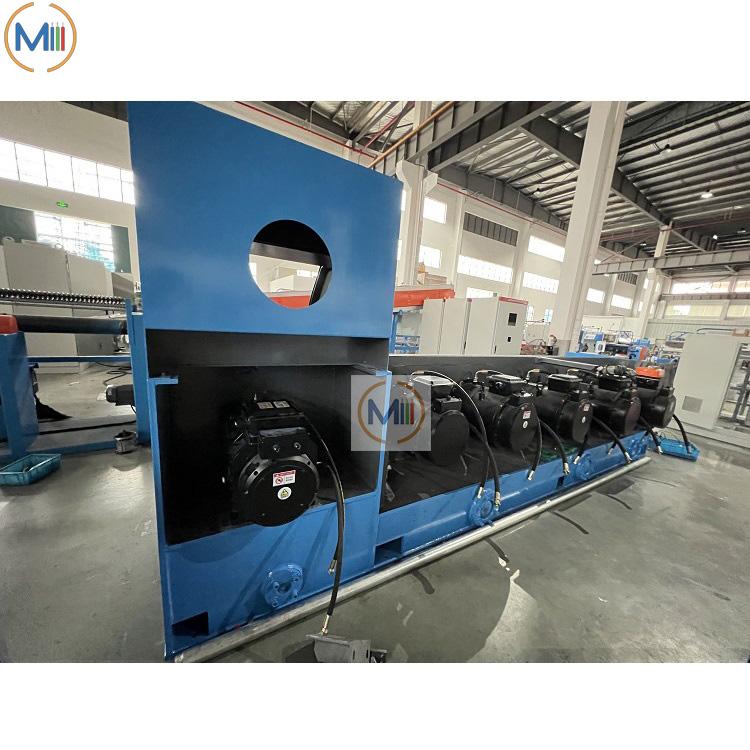

(2) Synchronized servo motor direct drive, compared to the AC motor or asynchronous motor with a reducer drive power saving by about 5%-8%.
(3) Micro sliding wire drawing greatly reduces the generation of copper powder.
(4) No gear transmission, small vibration, low noise, eliminating gear maintenance, greatly improving the production efficiency.
(5) The wire compression ratio can be flexibly adjusted according to production requirements, and the finished product has a higher smoothness, which greatly improves the quality of the finished product.
4. Delivery time: 90 working days
5. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person’s daily wage.
6. Guarantee: 12 months since shipping date(exclude easily wearing part)
