Hot Tinning Machine
The tinning furnace is tube type so it is easy to replace and maintenance.
The two ends of the Hot Tinning machine furnace tube all ceramic sleeve design, to prevent the wire be scratched.
Description
1. Application:
This machine can go into tinning machine bath for tinning copper wire with max.40 wires.
2.Parameters:
| Machine type | SY-40H |
| Pay-off Stand | By brush |
| Take-up motor | 1.2-1.5 N.m |
| Transformer | 0.75 KW |
| No.of wire | 12-40 |
| Max.Speed | 100 m/min |
| Spooler weight | 5-15 KG |
| Wire dia. | 0.25-0.50 |
| Power source | 380-415 V/50 HZ/3 PHASE |
3. The main scope of the supply:
1. Pay-off: This part consists of a steel stand, aluminum cover, brush, and pay-off guiding wheels. Pay-off aluminum covers can be equipped with different sizes of brushes to match the tensions of different wire diameters. The thickness and density of the brush are determined by its process.

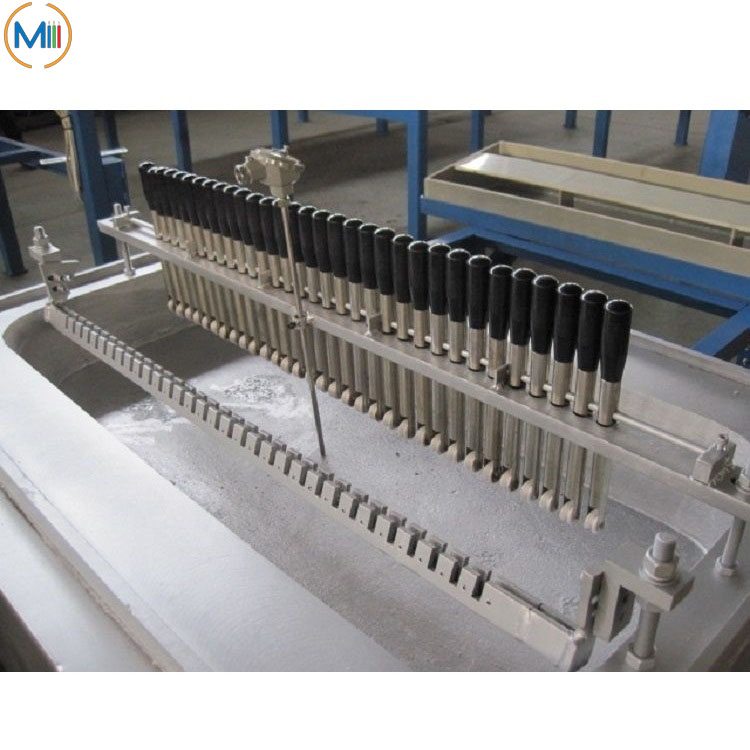

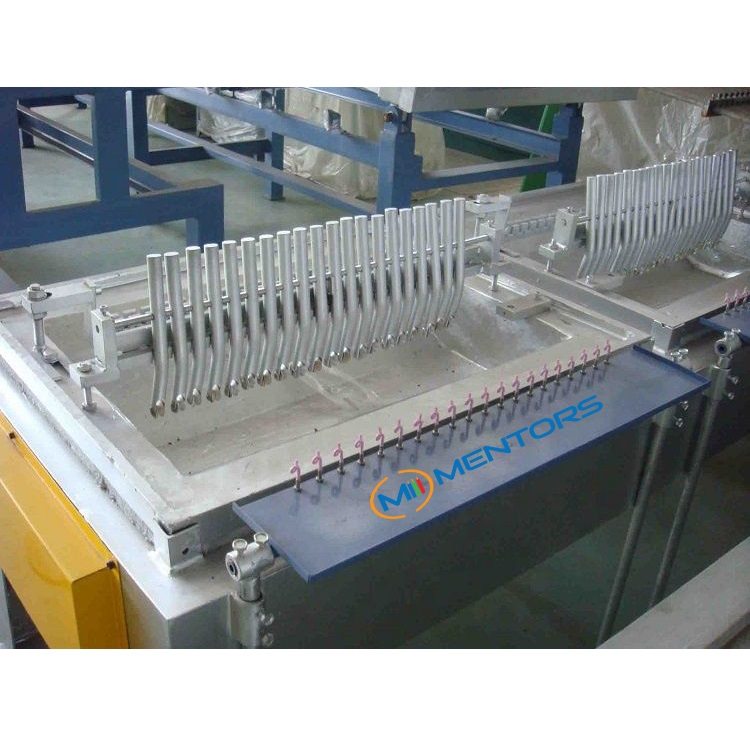

2. Tinning part: Tinning channel center has a ceramic guiding wheel, the wheelbase can turn 120°, easy to thread wire. K-type thermocouple measure temperature, digital temperature-controlled meter to control the temperature automatically. When Copper Wire Tinning machine is working, it only needs to set the temperature of the tinning channel as the technique process, the control meter will control the temperature to a certain degree, control rang0-400℃.
3. Haul-off part: This part consists of the haul-off reel, wire threading guiding wheels, shelf, and transmission motor. The haul-off device is to haul off the copper wire at a steady speed to finish the soft tinned copper wire and control the tension.

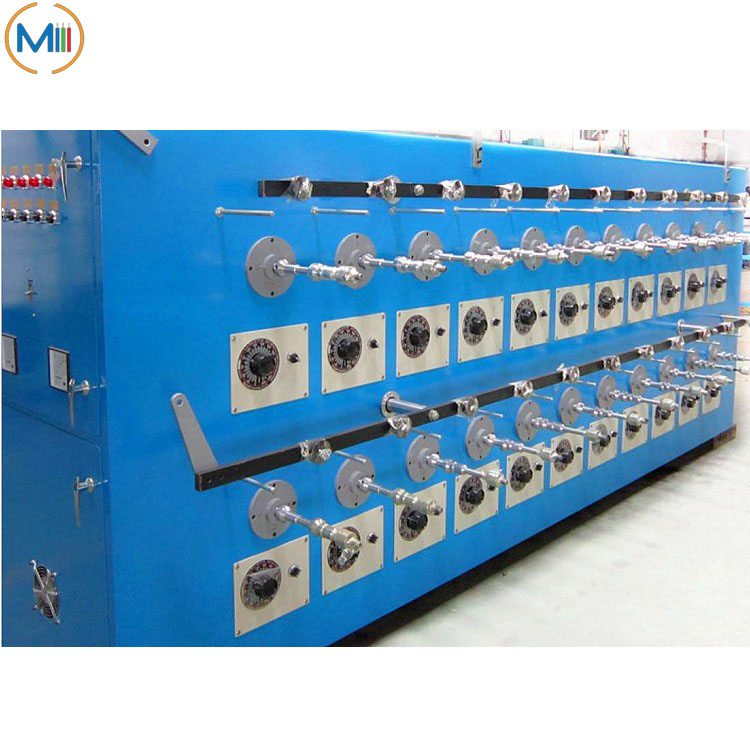

4. Take-up part: This part is made of take-up reel, traversing part, shelf, etc. The take-up motor is a double instant torque motor, to fit different wire diameter requirements.
Electric control part: 3P, 380V power source, electric cabinet control.
4. Advantages:
1. Ironed cast tinning path supports long life
2. Measuring temperature by the k-type thermocouple, a numeric type temperature control meter can adjust the temperature from 0—400℃ automatically.
3. Here are ceramic guide wheels in the middle of the tinning bath; the guide wheel can rotate 120 degrees freely. The wire goes through easily.
5. Delivery time: 30-45 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
