The cover of the transmission area is in the shape of a mesh with ventilation holes, the front door of the drawing area is made of stainless steel, and the safety cover of the coiling area is fully enclosed with three inspection windows.
Such a setting is convenient for operation and can ensure the safety of workers.
Main feature:
1) Max.Dies Qty: 28
2) Outlet wire size: 0.152-0.4 mm
3) Max speed: 2500 m/min
1. Application:

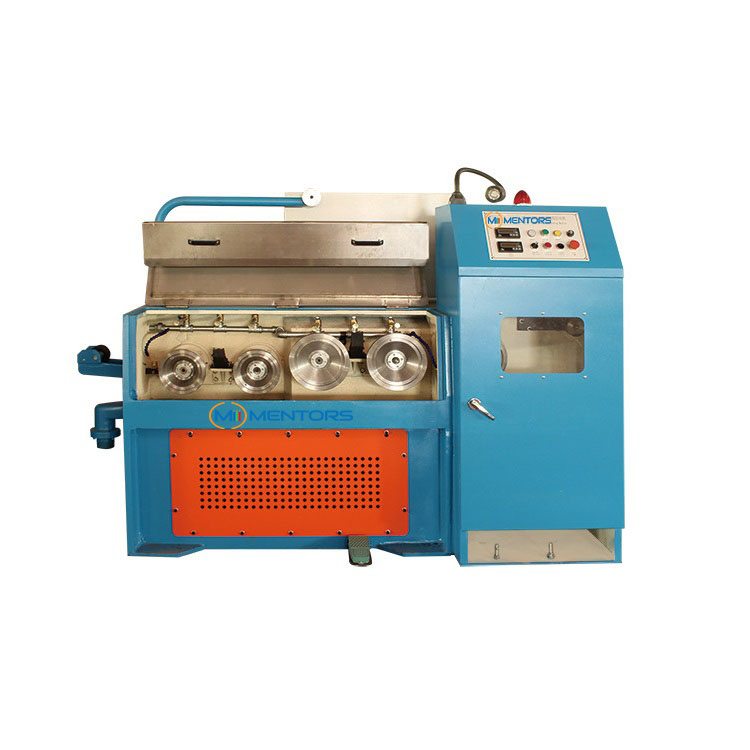

Horizontal Wire Drawing Machine is used for drawing wire 0.15-0.32 mm from max input wire 1.6 mm.
2.Parameters:
| Machine type | SY-28DHA |
| Control system | Traditional analog type |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 28 |
| Inlet diameter | 1.6 mm |
| Outlet diameter | 0.152- 0.4 mm |
| Drawing line speed | 2500 m/min |
| Slip ratio of m/c | 13% |
| Brake | Magnetic brake |
| Power source | 380 V 50 HZ |
| Machine dimension | 2700×1600×1600 mm |
| Machine weight | 2400 KG |
3.Advantages:
1. Horizontal Wire Drawing Machine adopt imported brand Bearings and belt type transmission.Machine running in low noise.

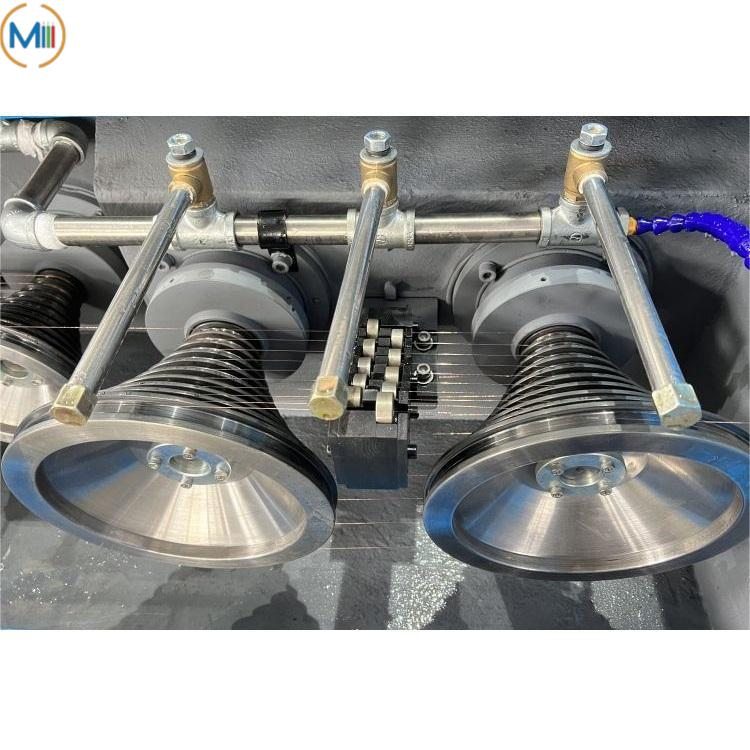

2. Drawing capstan surface of Horizontal Wire Drawing Machine is very smoothly.
3. Double inverter can keep the outlet wire with stable tension and the slip ratio of wire will be reduced to the minimum.
4.How to do before turn on the Horizontal Wire Drawing machine?(without using it for a long time)
1. Electrical cabinet：Check the surrounding environment of the equipment and check whether there is any abnormal phenomenon such as water in the electrical box.
2. Mechanical part: Check whether each functional part is normal.
3. Turn on the power step by step: The external main switch is powered on first, check whether the voltage is out of phase and too low. Turn on the power if no abnormal conditions, and observe whether there is any abnormal phenomenon or leakage.
4. Do not perform any action when the Horizontal Wire Drawing Machine is turned on even without an alarm. Let the electrical components be energized for 30 minutes.
5. Keep running the machine in low speed in the beginning.
5.Delivery time: 60-90 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
