The first mold base and the final mold base are independent.
The second to twenty-sixth molds are cast by milling iron, which is small in size and increases the operating space.
The mold base can be adjusted according to the position of the wire drawing capstan.
Main feature:
(1) Wire quantity: 1 wire
(2) Max.Inlet wire: 1.6 mm, outlet wire: 0.2-0.50 mm
(3) Max.Die Quantity:26

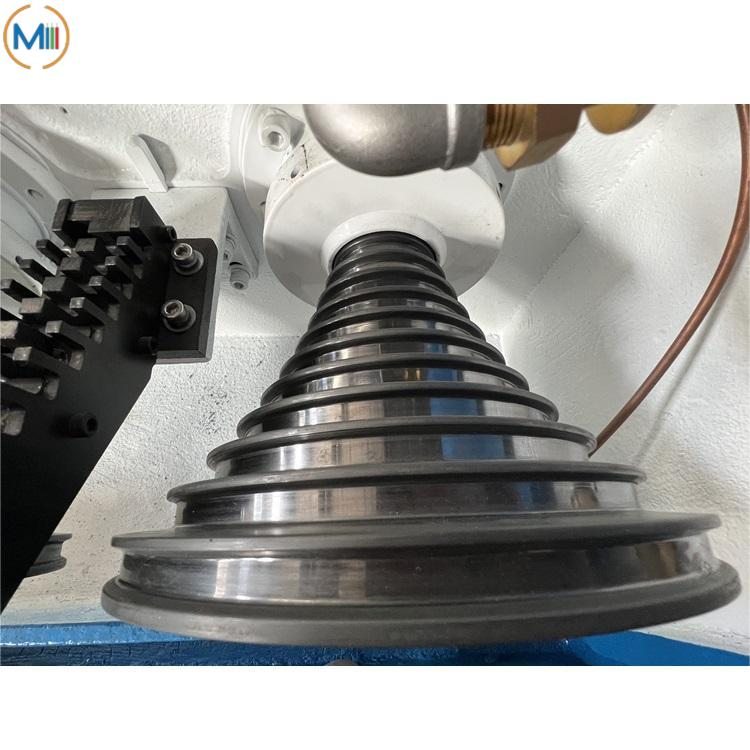

(4) Capstan quantity: 4 PCS(horizontal)
1. Application:

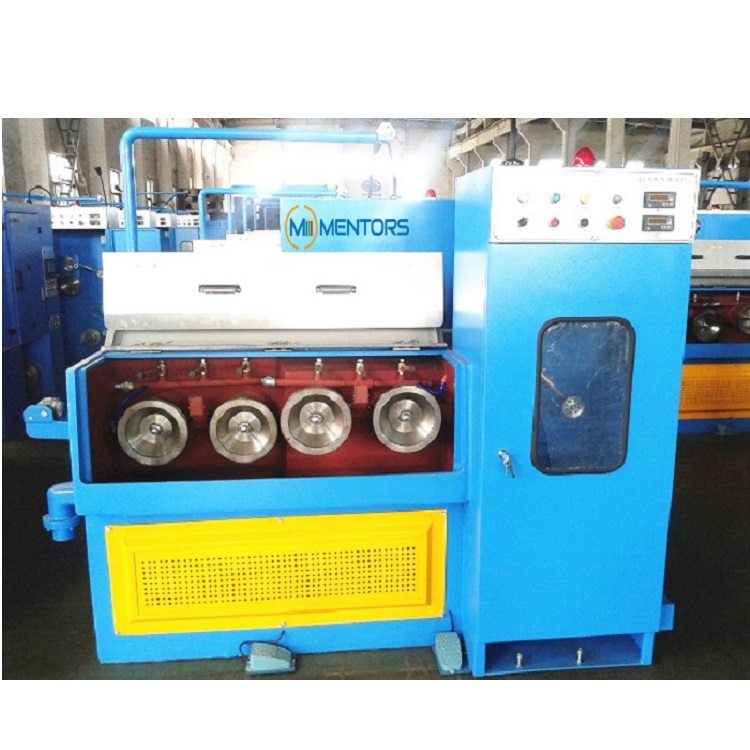

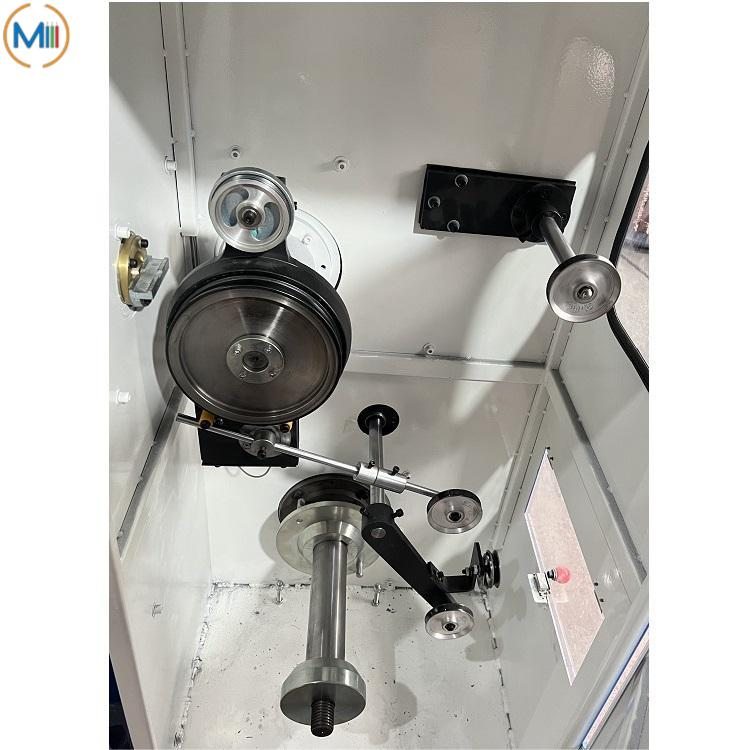

High Speed Wire Drawing Machine is used for drawing copper wire from 1.6 mm to 0.2-0.5 mm with max 26 dies, which followed by single spool take-up with 300 steel bobbin.
2.Parameters:
| Machine type | SY-26DHA |
| Capstan arrangement | Four capstans in horizontal |
| Control system | Push button |

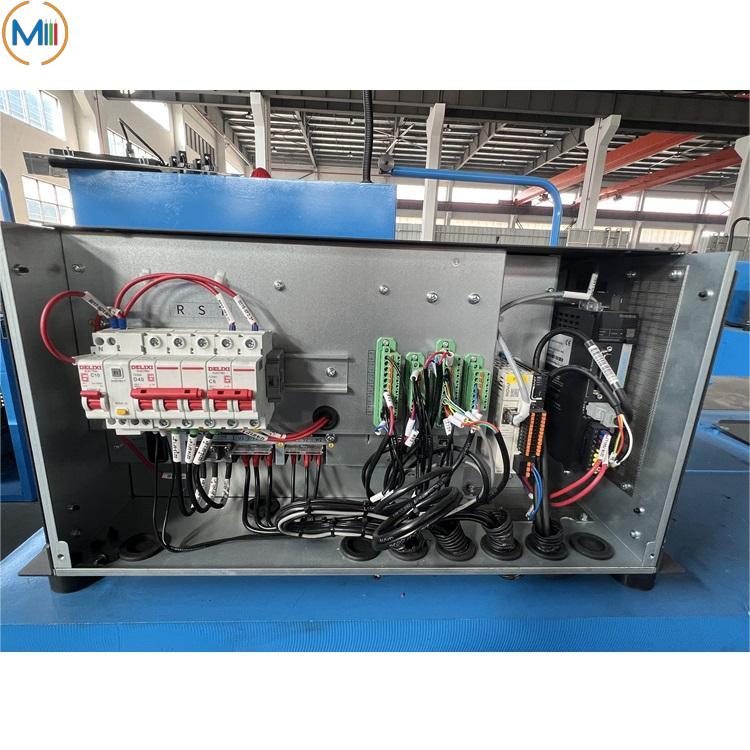

| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 26 |
| Inlet diameter | 0.50- 1.6 mm |
| Outlet diameter | 0.2- 0.50 mm |
| Max.Speed | 2500 m/min |
3.Advantages:
1. Ironed cast body.
2. Adopting NSK or SKF Bearings and belt type transmission, lowing noise and high capacity.
3. Drawing capstan quantity of High Speed Wire Drawing Machine is four pieces, which easier for wire rewinding
4. Double inverter can keep the outlet wire with stable tension and the slip ratio of wire will be reduced to the minimum.
4.What To Do If Wire Break Frequently：
1. Pay attention to the current change. This may be due to the instability of the current, so attention must be paid to whether the current is stable. In the production process, special attention should be paid to this point, especially when it is first time to use High Speed Wire Drawing Machine, special attention should be paid to the change of the current, and the adjustment should be made according to the change of the production line speed.
2.The quality of copper wire. But this is rarely the case during production,This problem shouldn’t be a problem as long as it is checked during purchase.
3. Pay more attention to the actual production standard operation and strictly follow the operation instructions of the High Speed Wire Drawing Machine manufacturer, there will be no frequent interruptions in the production process.
5.Delivery time: 30-45working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
