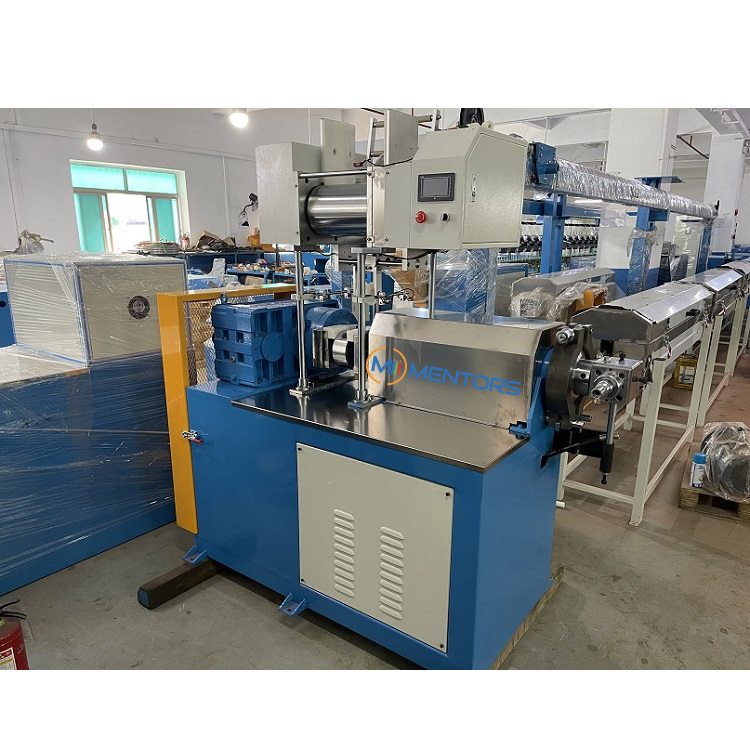

High Speed Silicone Cable Extrusion Production Line
This extrusion production line is used for insulating and sheathing Silicone rubber cable.
Description
1. Application:
This extrusion production line is used for insulating and sheathing Silicone rubber cable.
2. Parameters:
| model | SY-45 |
| Main machine power(kw) | 7.5 |
| Extrusion capacity(kg/h) | 30 |
| Screw diameter(mm) | 45 |
| Screw L/D ratio | 12:1 |
| Pay-off bobbin size(mm) | 300-400 |
| Conductor sizes(mm) | 0.2-0.3 |
| Finished cable sizes(mm) | 0.8-5.0 |
| Vulcanization tank length(m) | 12 |
| Heating power | 3 section 36kw |
| Traction motor(kw) | 3 |
| Production speed(m/min) | 10-200 |

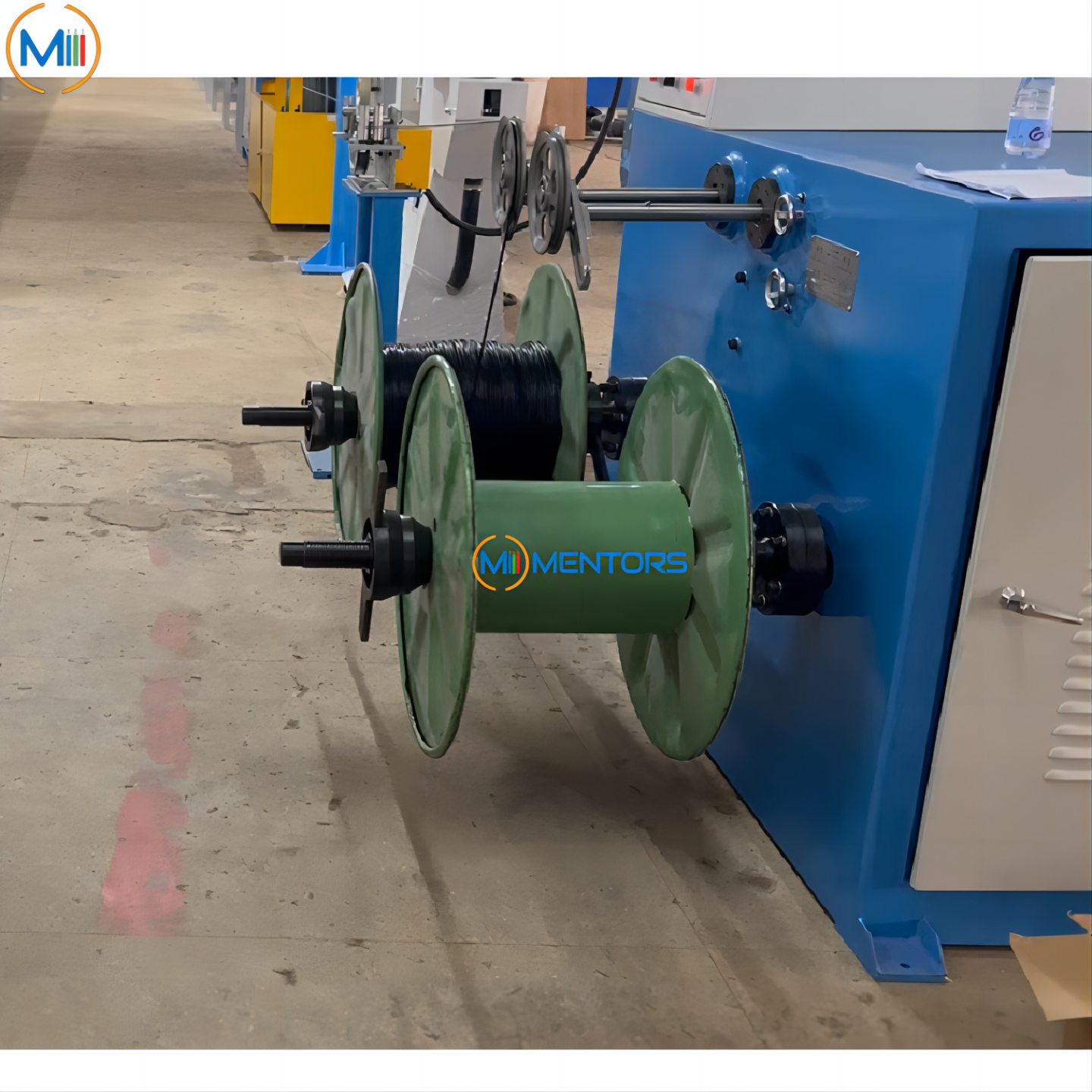

| Take-up bobbin sizes(mm) | 400-500 |
3. Structure Description:
1. The main features of this line are a compact structure, beautiful appearance, smooth transmission of the entire production line, stable performance, flexible control, low power consumption, and low noise.
2. The entire production line can be combined into a whole. Depending on your production needs, you can replace some of these systems to produce another type of wire or cable.
3. It is mainly composed of seven parts: a pay-off system, covered system, cooling system, take-up system, wire storage system, coiling system, and electrical system.
4. Advantages:
1. According to the special characteristics of Silicon rubber material, adopt the specialized screw, barrel, crosshead, die, and mold and matched device to protect inner vulcanization.
2. Save energy consumption and cost by means of shortening the vulcanization tube according to the idea of rotatory vulcanization.
3. Silicone rubber is used to avoid adjusting the die-head, water cooling system automatic control, or manual control.
