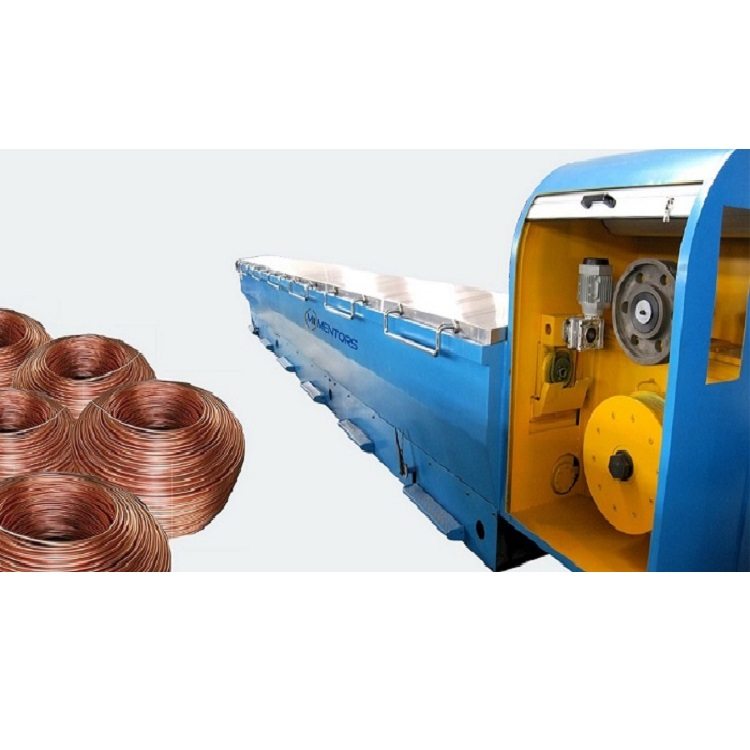

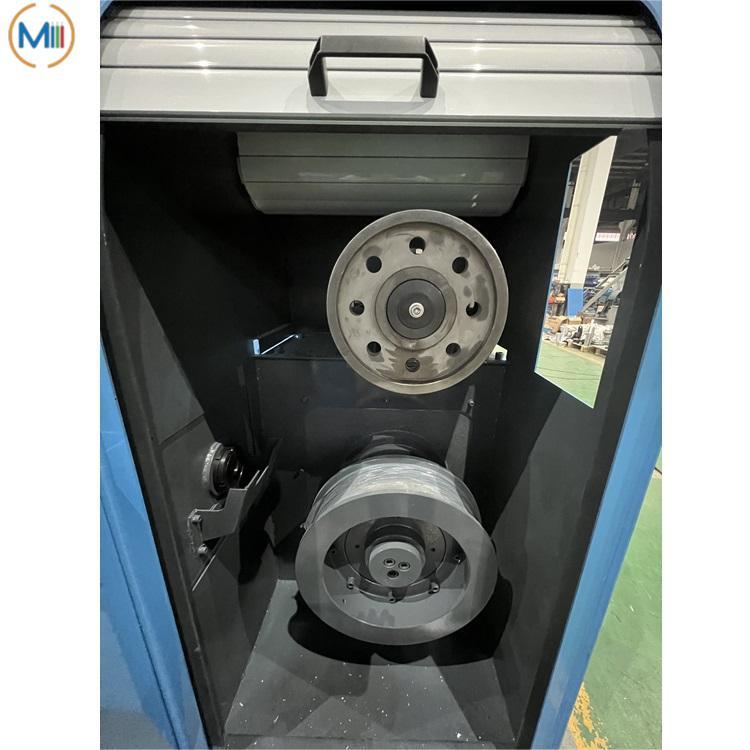

It's used for drawing and annealing copper rod to Φ1.2～Φ4.0mm wire.
The drawing capstans are driven by the same motor while the last capstan is driven by another independent motor.
In this way, the outlet diameter can be changed easily without stringing up the machine again (quick die change design).
Feature
Capstan Diamter: 450mm
Max.Dies Quantity:13
Main Motor: 280KW
Speed Range: 25m/s
1. Application:
The machine is used for drawing copper rods from 8.0mm to 1.2-4.0mm.
Outlet wire can go to dual take up device or coiler.
Each of the 12 drawing capstans is driven by a single motor, while the last capstan is driven by another independent motor. This allows the outlet diameter to be changed easily without having to restring the machine.
The main body of the High-Speed Rod Breakdown Machine is made of cast iron which is processed by tempering treatment. As a result of this process technology, the machine body became rigid and vibration was reduced.
2. Parameters:
| Item | LHD450/13 |
| Inlet Wire Dia.(mm) | Ø 8 |
| Outlet Wire Dia.(mm) | Ø 1.2~4.0 |
| Max Die No. | 13 |
| Max. Line Speed(mm) | 25 |
| Main Motor(KW) | 280 |
| Drawing Capstan | Coated with tungsten carbide |
| Take-up type | Dual-spool take-up, drop coiler, compact coiler |
| Lubrication Type | Immersion and spraying |
3. Advantages:
1. Iron cast gearbox body ensures long life with low noise.
2. Horizontal structure, operates easily.

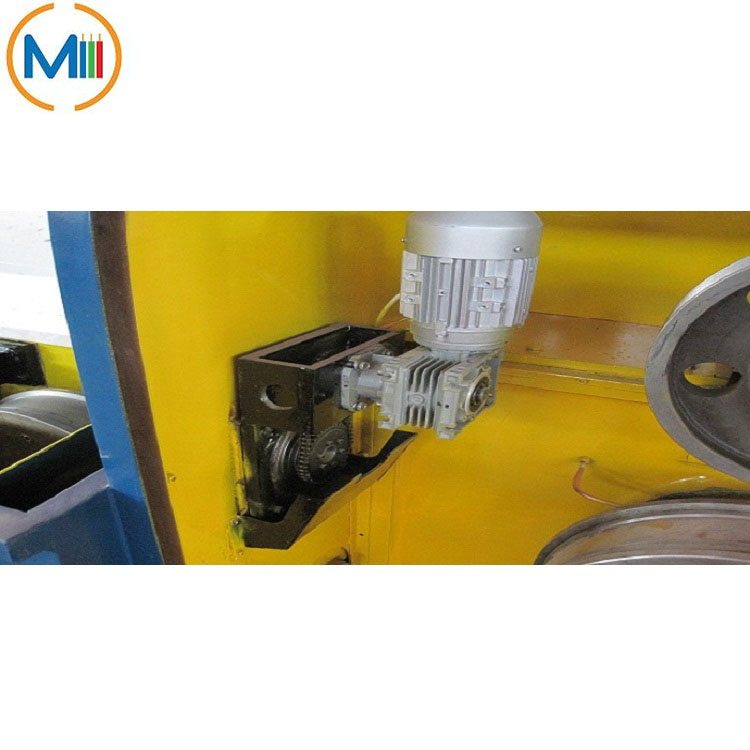

3. Fast die change system keep high efficiency when producing different diameter.
And dies quantity decrease a lot at the same time.

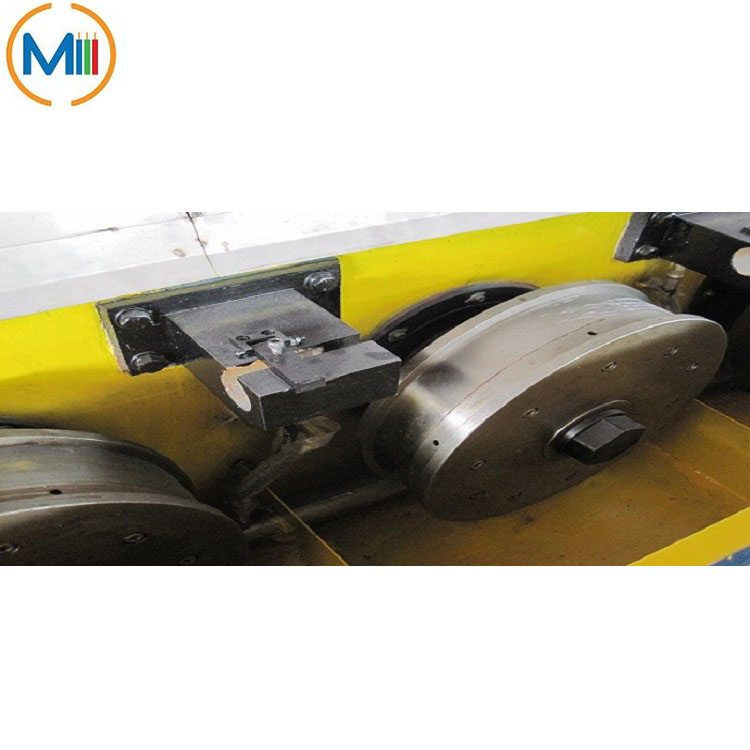

4. The capstan is coated with tungsten carbide power that can support a long life.

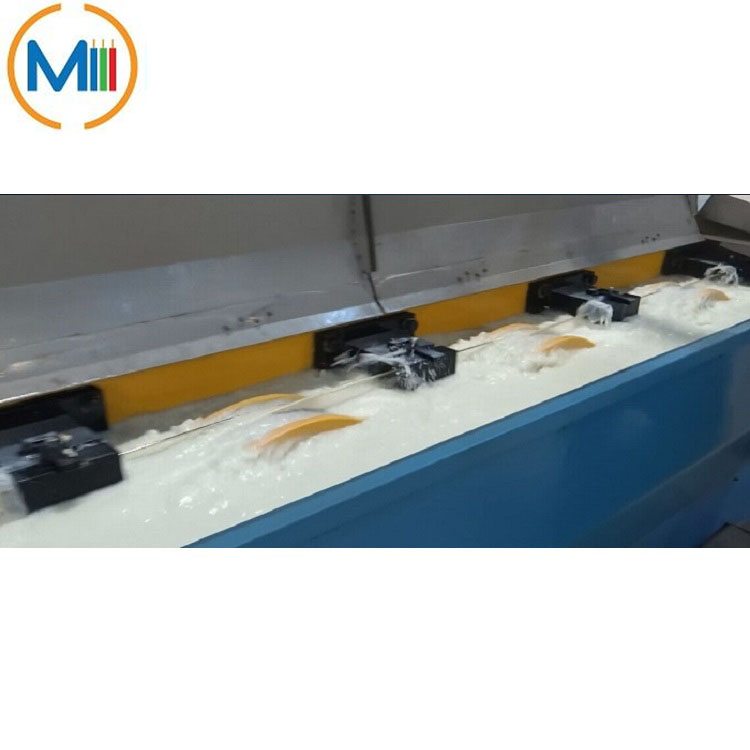

5. There is a small inclination between the axis of the drawing capstans and the gearbox transmission axis.
This special design can avoid the wire from overlapping with each other on the drawing capstan surface,
while maintaining a straight path from the first capstan up to the last one.
6. High-precision gear is produced by the German gear grinding machine, with high efficiency, and low noise.
7. PLC and touch screen controlled type, parameters can be set and displayed easily.
4. Delivery time: 90 working days
5. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
6. Guarantee: 12 months since shipping date(exclude easily wearing part)
