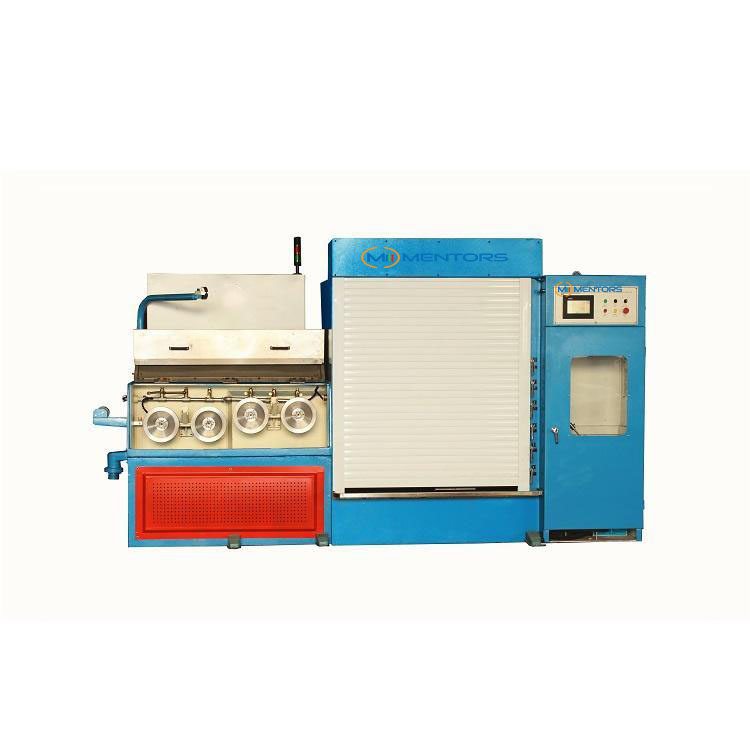

Gold Wire Drawing Machine
Max dies quantity of this machine is 24 pieces.
Finished wire can by winded by small plastic spool.
Main feature:
1.Max Die No: 24
2.Drawing Line Speed:25-30 m/s
3.Ceramic plasma capstan
Description
1. Application:

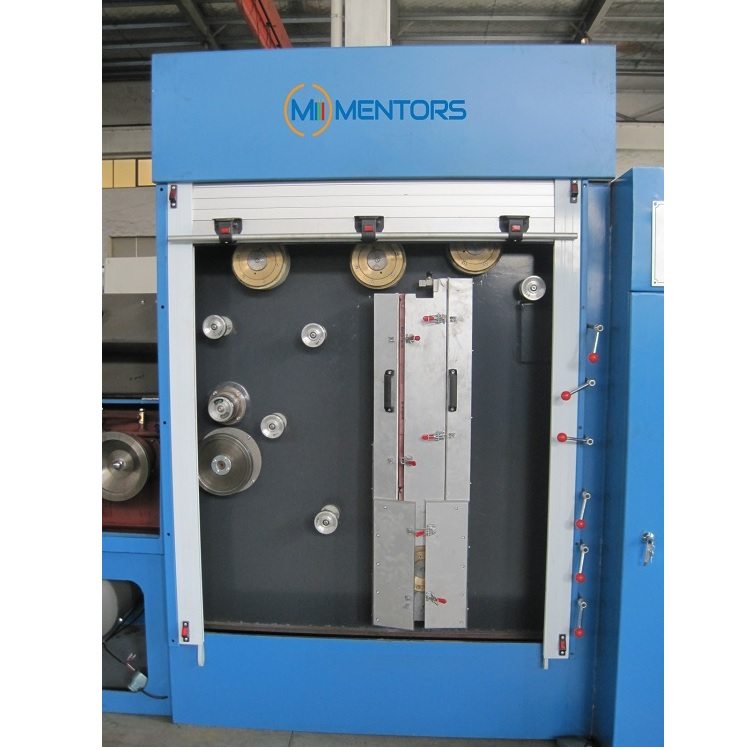

Gold Wire Drawing Machine is used for drawing gold wire, this machine can drawing and annealing gold wire at the same time.
The main body of Gold Wire Drawing Machine is made of Q235 steel structure being stress-relieved by annealing after welding. The die holders are of compact space design but easily thread the wire through the die. The positions of the die holder are adjustable according to the positions of the drawing capstan.
2.Parameters:
| Machine type | SY-DT24G |
| Drawing dies No./max. | 24 |
| Inlet diameter | 0.6- 1.2 mm |
| Out diameter | 0.15- 0.25 mm |
| Drawing line speed | 1500 m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 11 kw |
| Spooler motor | 4 kw |
| Annealing voltage | DC 0-60 V |
| Annealing current | DC 250 A |
3.Advantages:
1.The AC motors are controlled by the frequency inverters and the winding speed tracks the drawing speed by PID adjustment freely.

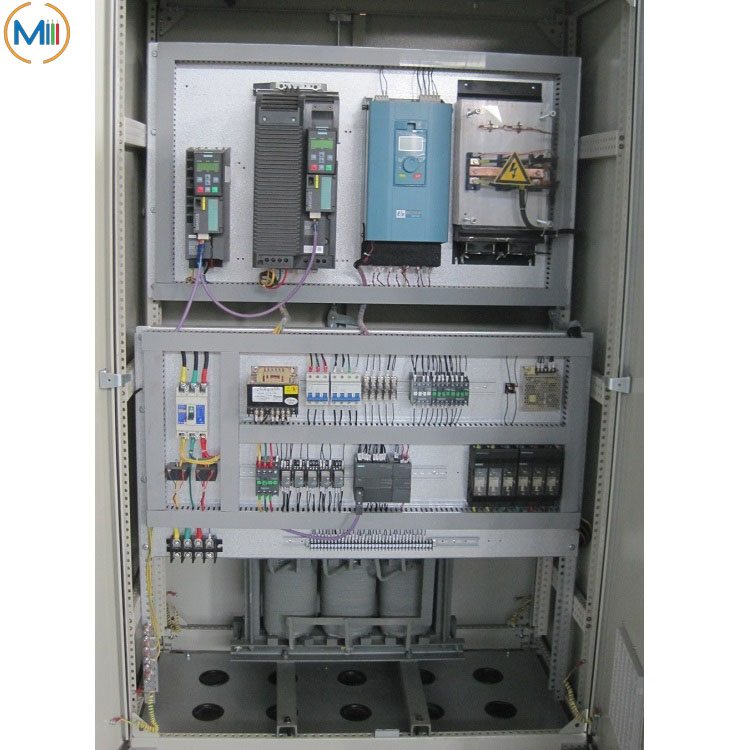

2.Main operation box on the top of the drawing machine connecting with the electric control box directly, it is equipped with a touch screen, power control switch, power indicator light, start or stop and emergency stop.
3.Line speed setting,Real-time speed,Annealing voltage setting,Real-time voltage,Real-time current,Length setting,Real-time length,Cumulative length, Pump switch, Fault content display, Length reset, Fault reset and Traversing setting on touch screen.
4.The main body of Gold Wire Drawing Machine is made of Q235 steel structure being stress-relieved by annealing after welding. The die holders are of compact space design but easily thread the wire through the die. The positions of the die holder are adjustable according to the positions of the drawing capstan.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
