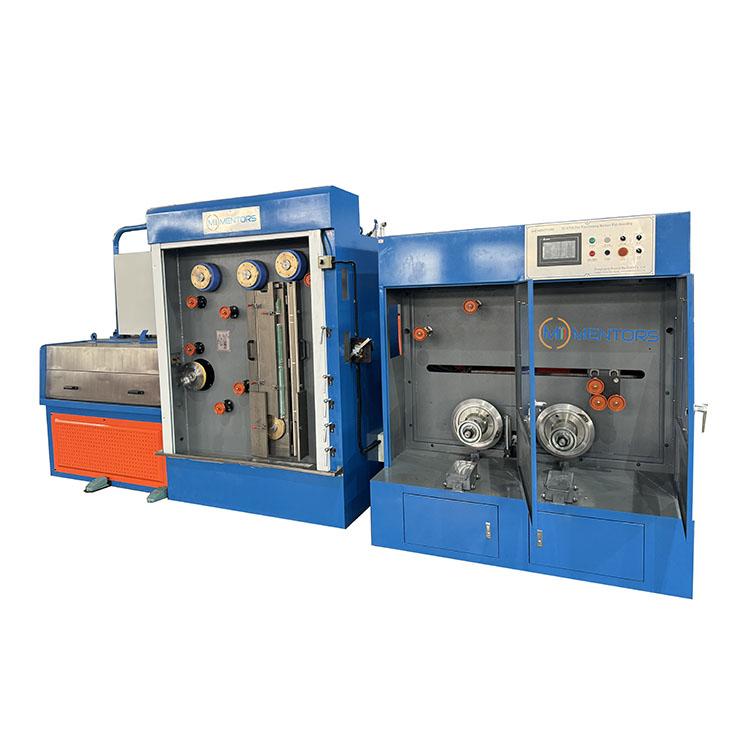

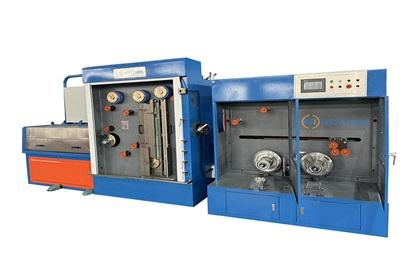

Fine Wire Drawing Machine with Annealing Spool Automatic Change

This fine wire drawing machine is specially used for 1.6mm copper wire.

Feature:

1)Max.Dies Qty:24

2)Max.Inlet wire:1.6mm, outlet wire:0.19-0.40 mm

3)Raw material: copper

4)Capstan quantity:4 PCS+1PC(zirconium oxide)

Description

1.Application:

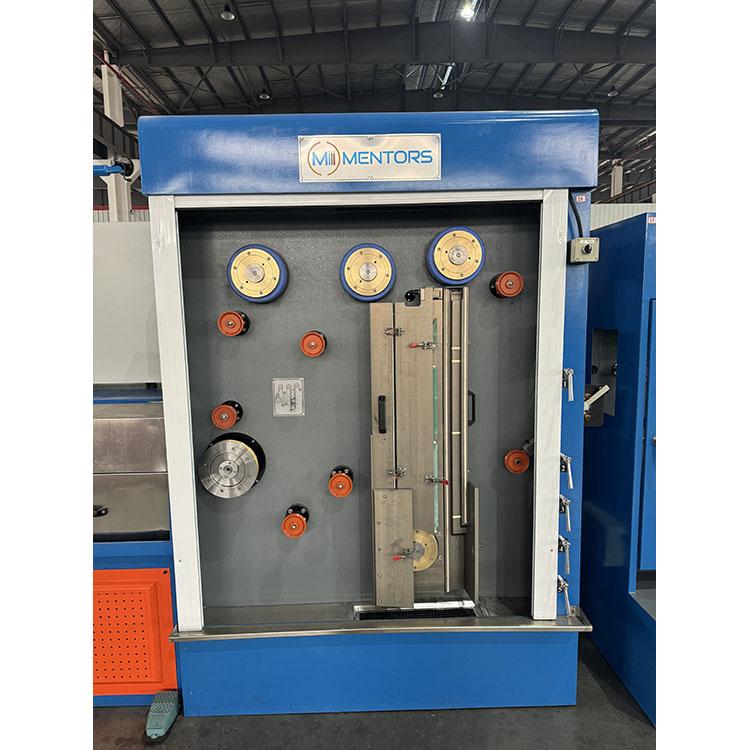

This machine is mainly used for drawing and annealing copper wire from 1.6mm to 0.19～0.40mm.

2.Parameters:

Model	SY-DT24C
Applicable material	Copper wire
Dia of inlet wire	1.6mm
Dia of outlet wire	0.19～0.40mm
Number of drawing dies	Max 24
Line speed without annealer	Max 1800m/min
Line speed with annealer	Max 1500m/min
Drawing capstan	4pcs(zirconium oxide)
Fixed speed capstan	1pc(zirconium oxide)
Main motor power	18.5KW
Take-up motor power	4KW(DC,2sets)
Annealing power	DC0-60V,400A
Steam generator	9KW
Transmission type for drawing part	By belt
Braking way	By magnetic method
Drawing lubrication	Spray
Take-up bobbin size	250mm
Traversing type	Separately reversible motor controlled

3.Advantages:

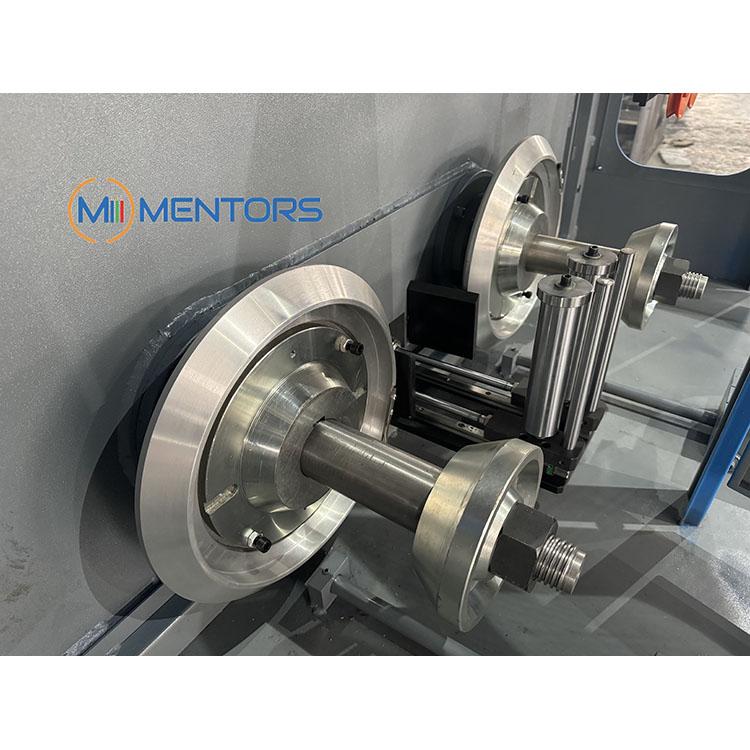

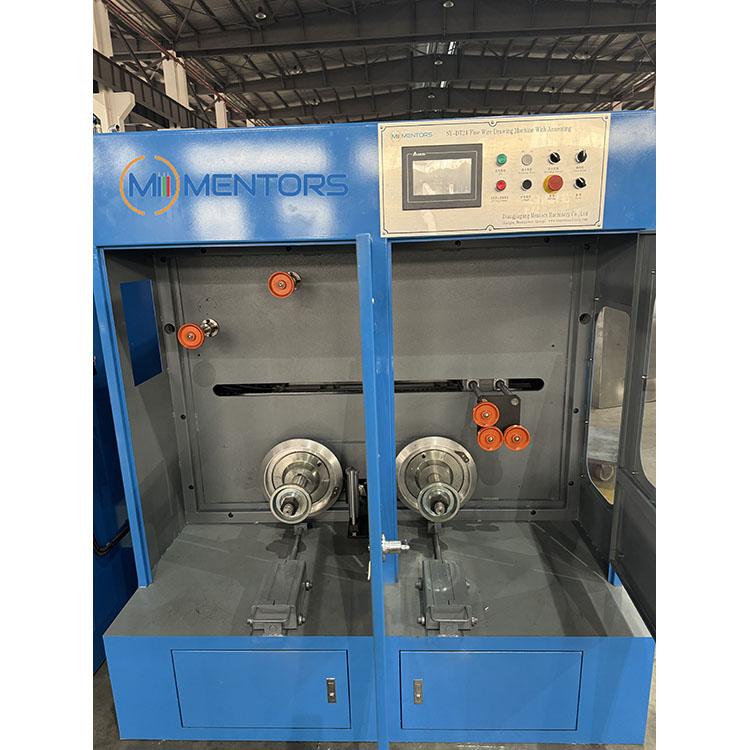

1)The type of take-up is automatic spool change.The wire is cut when the preset-length is achieved.The winding changes from the full reel to the empty bobbin automatically.

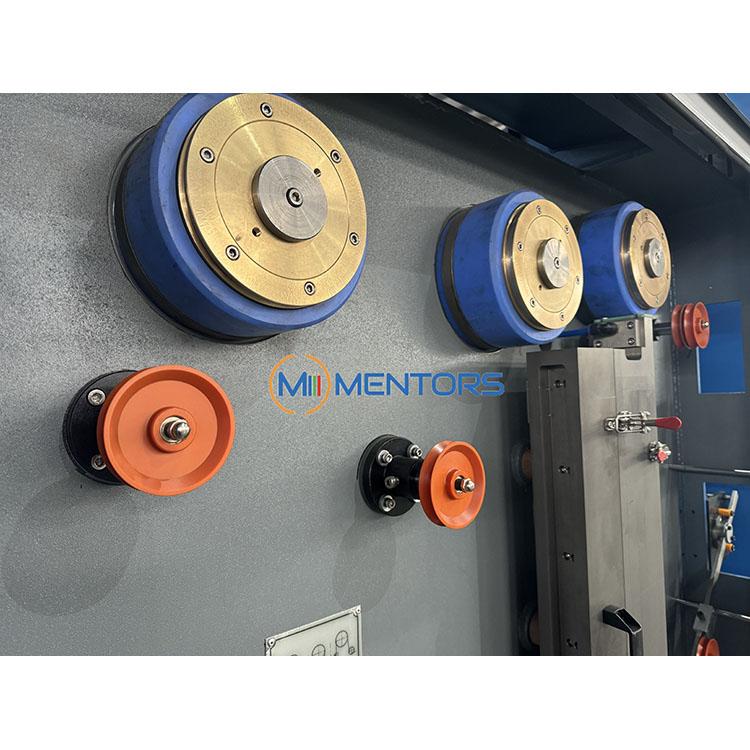

2)The capstan used for drawing part is zirconium oxide.

3)The traversing type is controlled by separately reversible motor.The speed can be adjusted independently.

4.Delivery time: 30-45 working days

5.After-sell service:

Engineer will be dispatched at needed.

The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.

6.Guarantee: 12months since shipping date(exclude easily wearing part)
