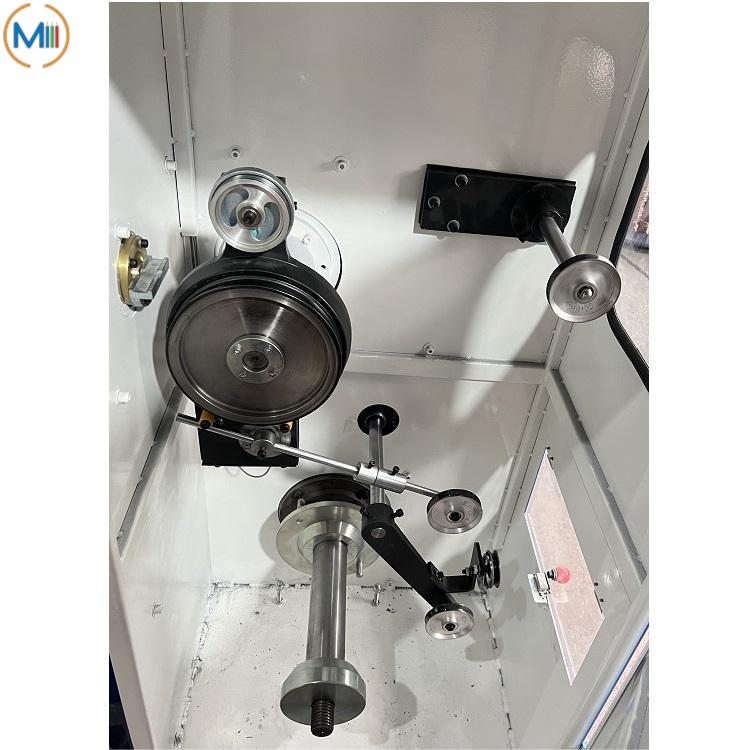

The take-up part adopts the top cone type fixed spool, and the spool can be tightened with a wrench.
Below the shaft, there are up and down reel trolleys and ramp boards for up and down spools.
Fully enclosed safety cover, with transparent acrylic window, to observe the coiling and wiring conditions.
Main feature:
1. Wire quantity: 1 wire
2. Max.Inlet wire: 2.05 mm, outlet wire: 0.30-0.70 mm
3. Max.Die Quantity:18
4. Capstan quantity: 4 PCS(horizontal)
1. Application:

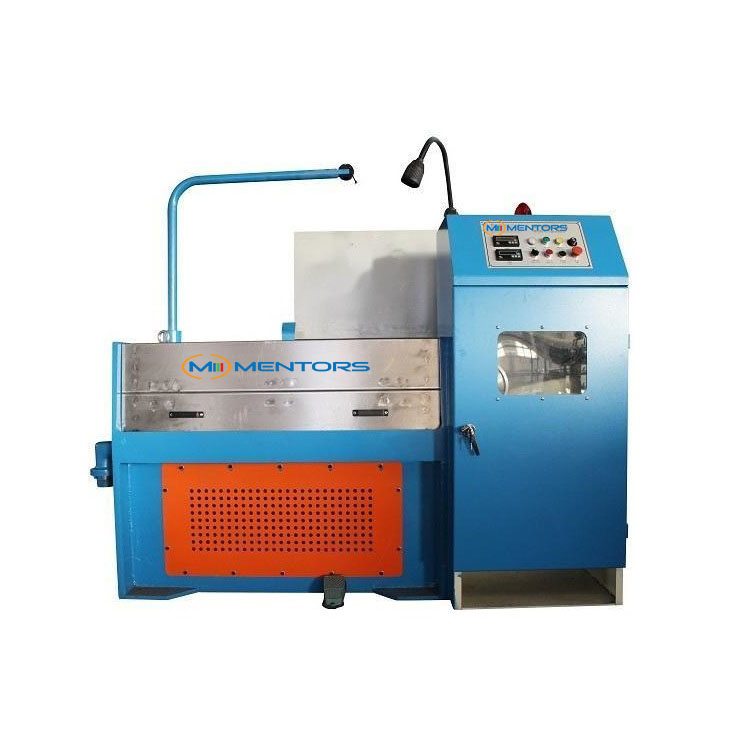

Fine Wire Drawing Machine for Almg Wire is used for drawing aluminum wire, aluminum alloy wire, CCA wire and copper wire etc.
2.Parameters:
| Machine type | SY-18D |
| Capstan arrangement | Four capstans in horizontal |

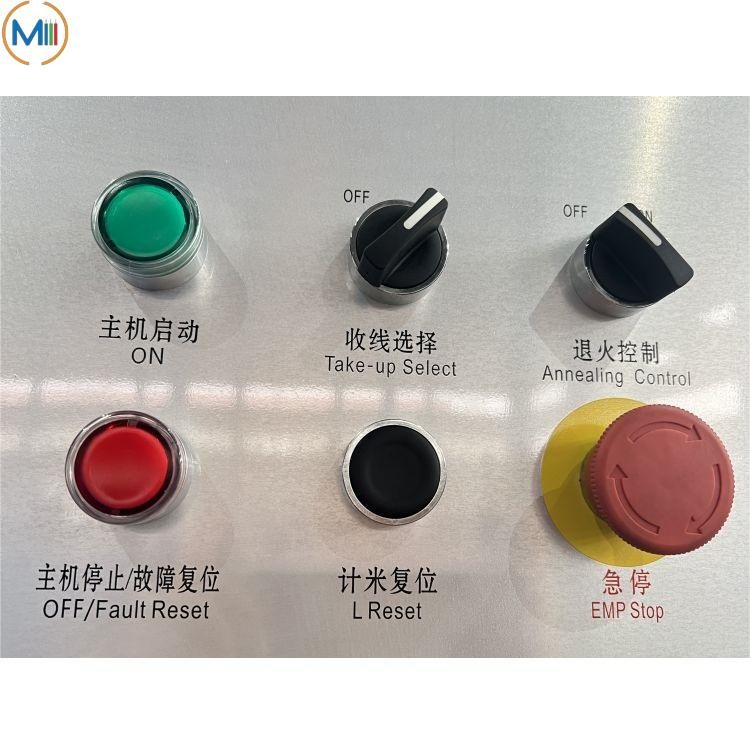

| Control system | Push button |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 18 |
| Inlet diameter | 0.80- 1.60 mm
CCA (2.05 mm) |
| Outlet diameter | 0.16- 0.60 mm
CCA (0.30- 0.70 mm) |
| Max.Drawing line speed | 1500 m/min |
3.Advantages:
1. Ironed cast body will keep machine with low noise when running in high speed.

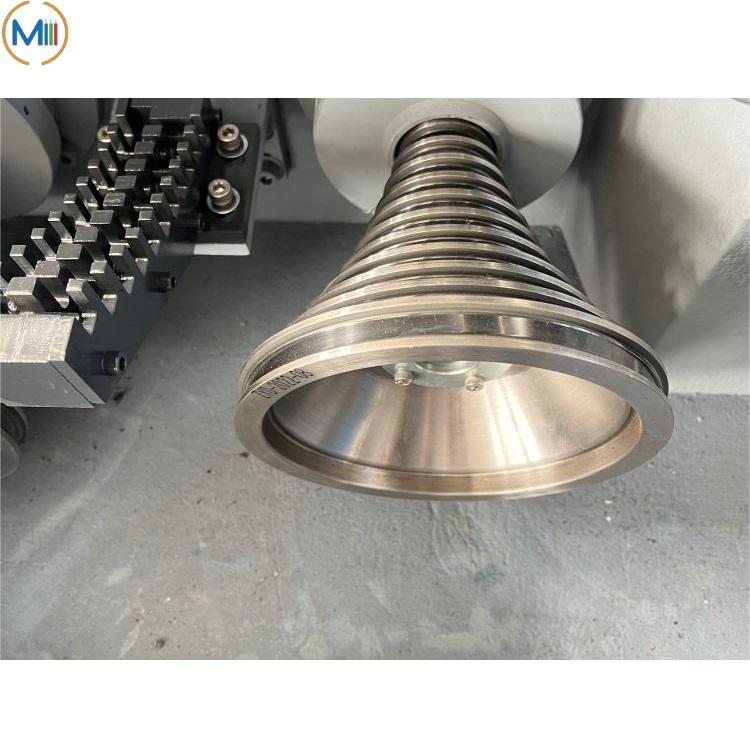

2. Drawing capstan of Fine Wire Drawing Machine use ceramic plasma.
3. Double inverter can saving lots of electric power.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
