1. Application:

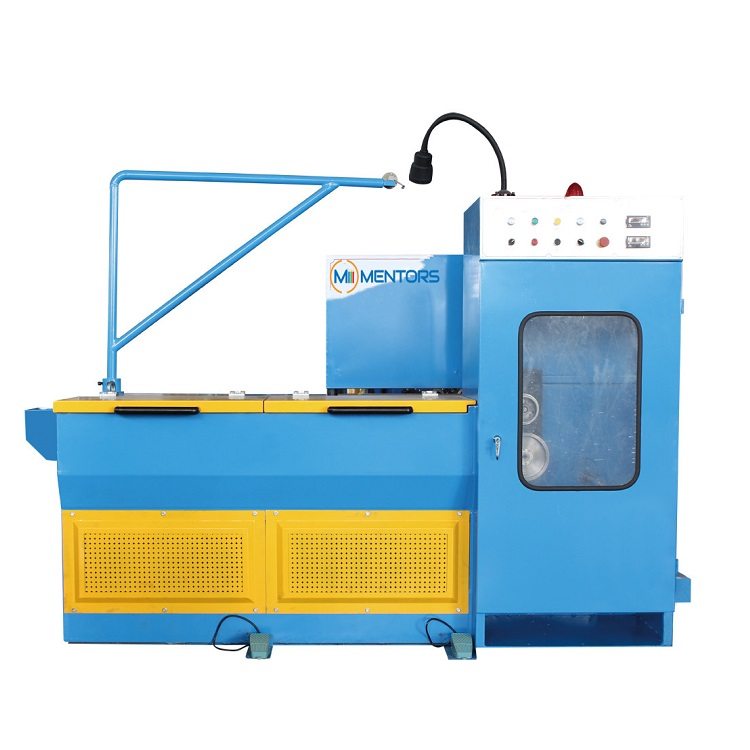

This machine is used for drawing CCA wires from 2.05 to 0.3-0.7mm
2.Parameters:
| Machine type | SY-B18 |
| Capstan arrangement | Four capstans in horizontal |
| Control system | Control system Traditional analog type |
| Inverter control | Dual Inverter control |
| Drawing dies No./Max. | 18 |
| Inlet diameter | CCA(2.05mm) |
| Outlet diameter | CCA(Ø 0.30- Ø 0.70mm) |
| Drawing line speed | 1500m/min |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 8% |
| Frame | Ironed cast |

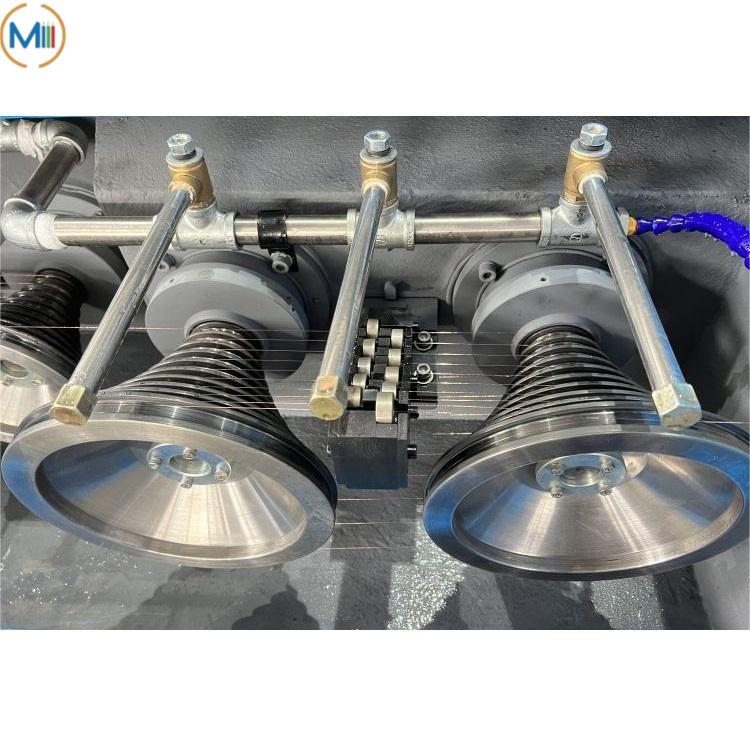

| Capstan | Ceramic plasma capstan |
| Main motor | 18.5KW |

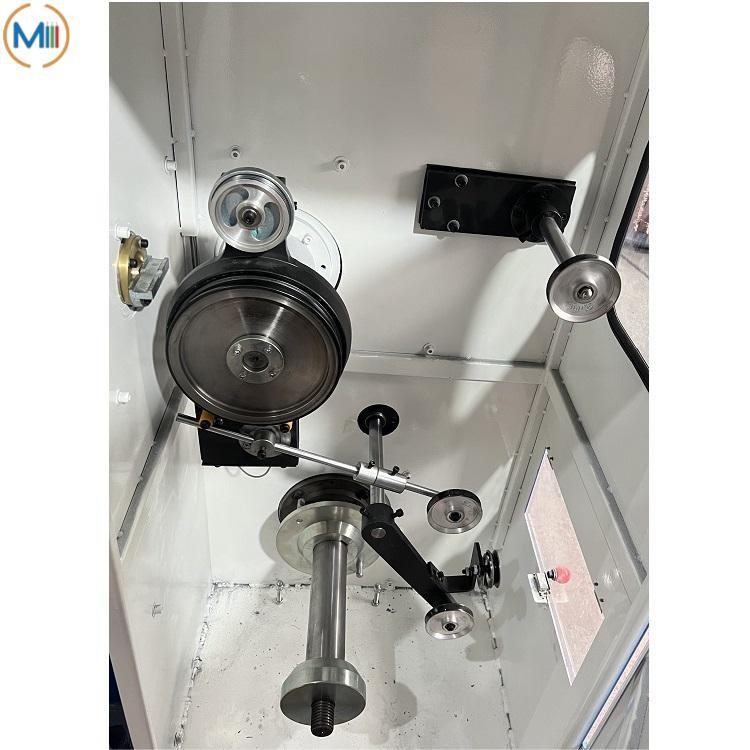

| Spooler motor | 4KW |
| Spool bobbin size | Spool bobbin size |
| Max .loading capacity | 50KG |
| Lubrication type | Spray or immersed |
| Brake | Magnetic brake |
| Power source | 380V 50 HZ or others |
| Machine weight | Approx.2000KG |
3.Advantages:
1).Compare to vertical copper wire drawing machine, more convenient for operating.
2).Smaller mechanical reduction ratio to reduce the wire break frequency.
3).Ceramic coated capstan can keep long life.
4). Ironed cast body without shock heavily.
5). Big outlet wire range can meet different request.
4.Machine Maintenance:
1. Equipment Cleaning: Clean both inside and outside of the Fine Wire Drawing Machine, wipe out the Copper powder or Aluminum powder.Clean the air filter of the electric control box and lubrication oil filter.
2. Anti-rust treatment：Apply anti-rust oil to some parts of Fine Wire Drawing Machine to prevent rusting. For example, inside machine body, dies holder, edge of capstan, take-up shaft etc.
3. Pay attention to rain and moisture.
5.Delivery time: 30-45 working days
6.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
7.Guarantee: 12 months since shipping date(exclude easily wearing part)
