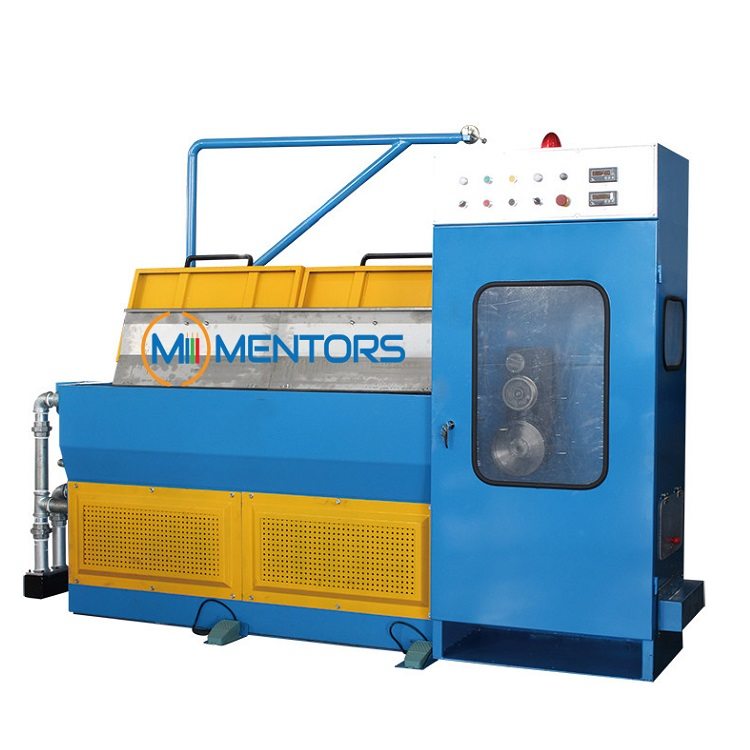

This wet type wire drawing machine is used for drawing stainless steel wire, galvanized steel wire,Mask nose wire and other type steel wire.
Main feature:
1)Max.Dies Qty: 14
2)Outlet wire size: 0.30-0.60mm
3)Max speed: 500m/min
4)Lubrication type: Full immersion
1. Application:

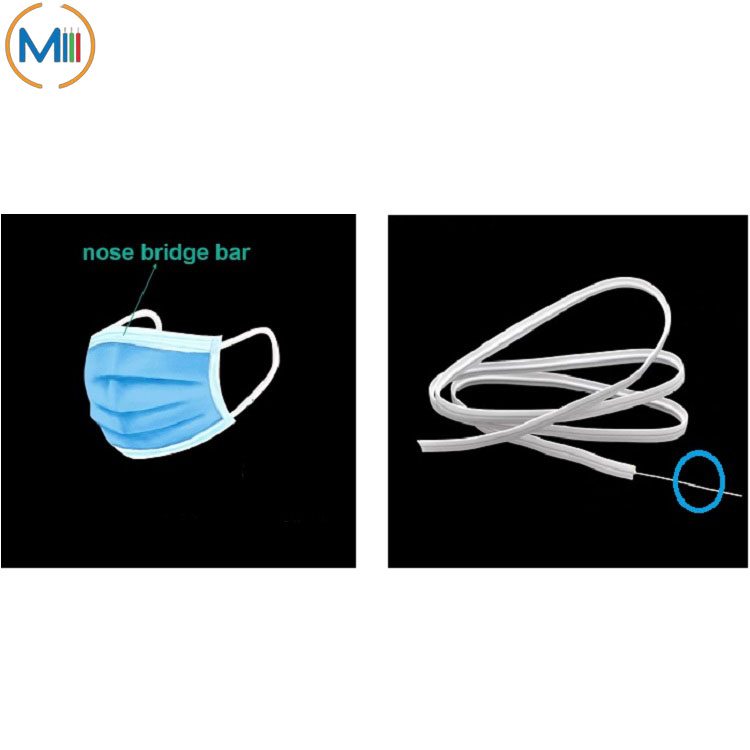

This wet type wire drawing machine is special for drawing face mask nose wire, galvanized wire, stainless steel wire etc.
2.Parameters:
| Inverter Control | Double inverter control |
| Max. Die No. | 14 |
| Max. Inlet Dia.(mm) | 0.6-1.2mm |
| Outlet Dia.(mm) | 0.30-0.60 mm |
| Max.Line Speed(m/min) | 300-500m/min |
| Slip ratio of m/c(%) | 15% |
| Main motor power(kw) | 7.5-11KW |
| Take-up motor(kw) | 4KW(separate from wire drawing) |
| Fix speed capstan Dia.(mm) | Φ230mm |
| Take-up Bobbin size | Φ400mm or according to the customer |
| The type of take-up machine | Pneumatic take-up machine |
| Traversing type | 110w Synchronous motor + belt |
| Take-up control | PID Displacement detection automatic control |
3.Advantages:
1).It’s designed for galvanized wire and high tension strength material.
2).Special Capstan can support long life.
3).PLC control, dual motor and dual inverter.
4).Protection device for wire disorder; Machine auto stop if mother wire disorder or break.
4.Delivery time: 45-60 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
