Extrusion Silicone Rubber Production Line
This silicone rubber production line is used for manufacturing high-temperature resistance silicone wire and cable.
Description
1. Application:
This silicone rubber production line is used for manufacturing high-temperature resistance silicone wire and cable.
2. Parameters:
| Model | SY-80 |
| Main drive motor | 15HP-6P |
| Rotating speed | 56/min |
| Extrusion output | 120Kg |
| Screw L/D ratio | 9.8:1 |
| Linear speed | 100/min |
| Continuous sulfur oven length | 30m |
| Finished cable sizes(mm) | 2.0-12.0mm |
| Traction motor(kw) | 5HP |
3. Extruder Production Process Introduction:

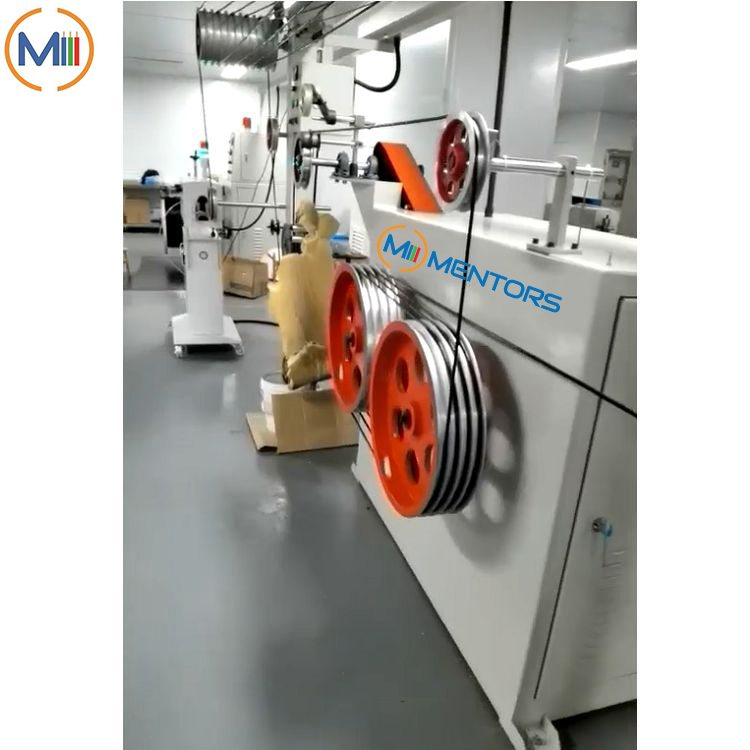

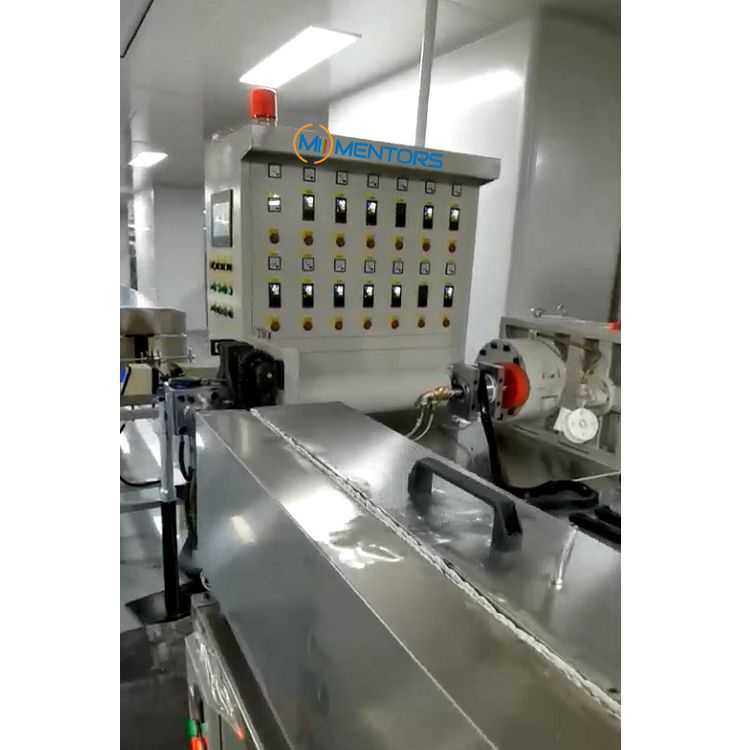

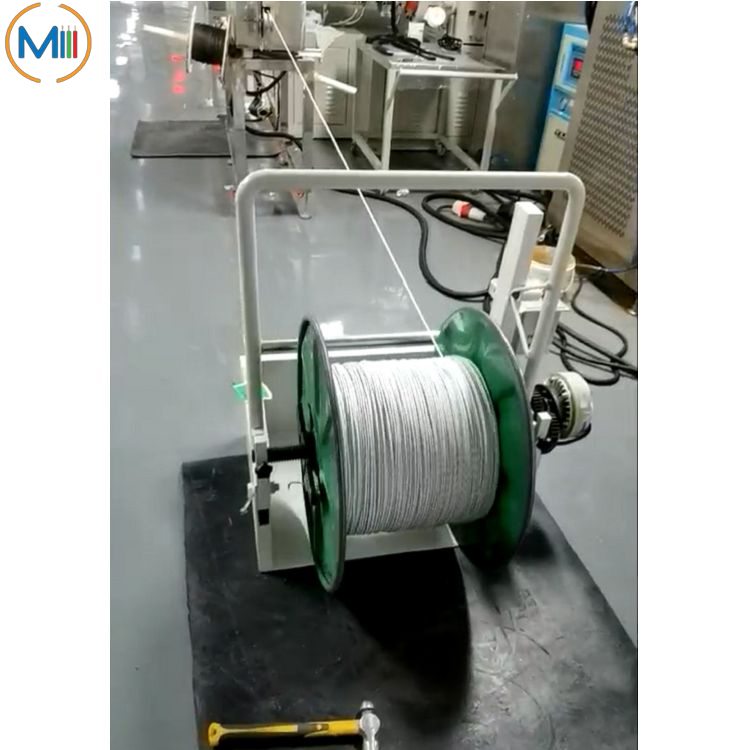

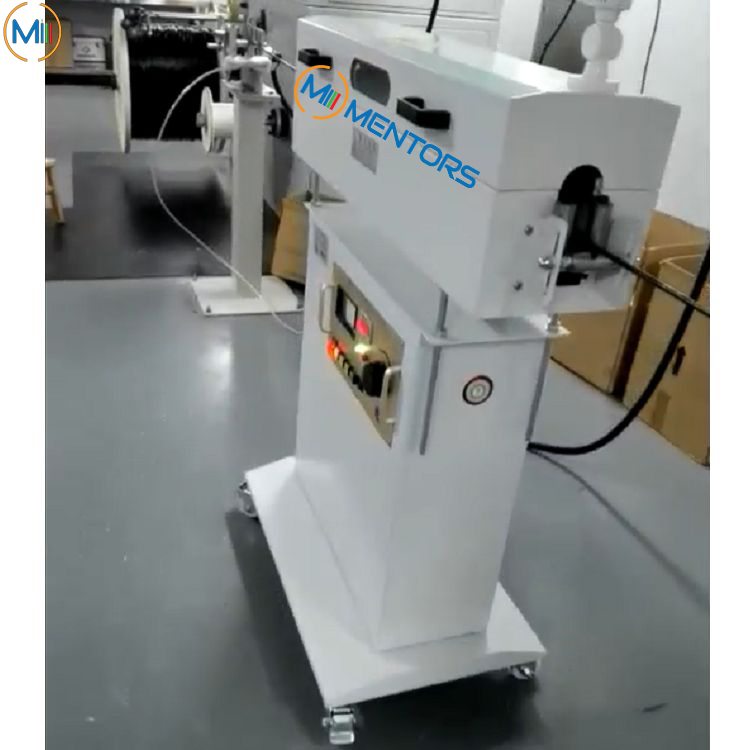

Pay-off—-Five guide wheel straightening—-Extruder machine—-Suction Feeder—-Machine Control Board—-First Section Cooling Water Trough—-Second Section Cooling Water Trough—-Caterpillar—-Spark Tester—-Take-up
4. Advantages:
1. Composed of tension pay-off stand, straightener, extruder master, diameter controller, printer, sulfur ovens, traction machine, accumulator, take-up part, etc.
2. This machine has high output, continuous production, and high automation.
3. Special silicone-free water on the self-centering head, and automatic or manual control system.
