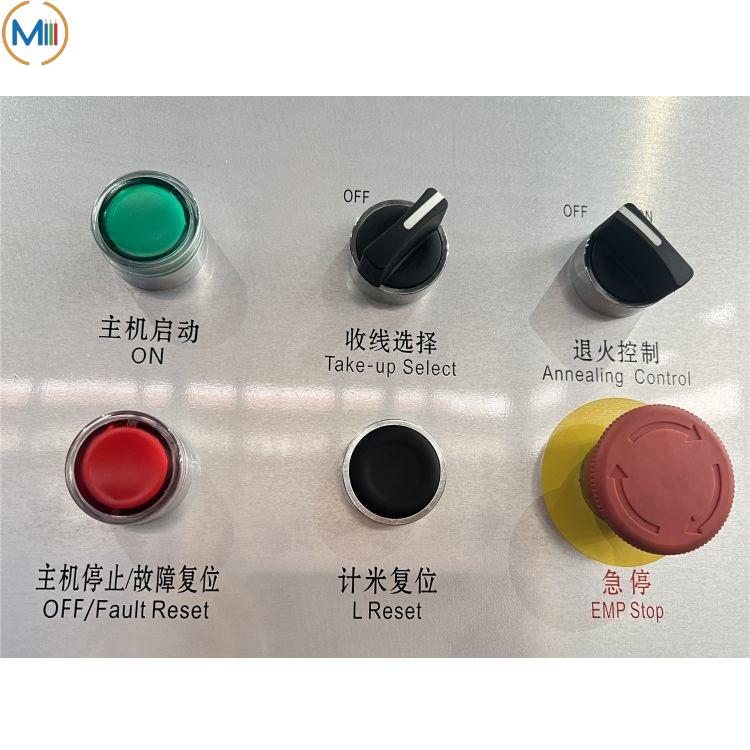

Extremely Fine Wire Drawing Machine is special for drawing copper wires 0.05-0.15mm.
Finished wire is wound by the 250 bobbin.
Main feature:
1)Max.Dies Qty: 24
2)Outlet wire size: 0.05-0.15mm
3)Max speed: 1800m/min
4) Raw material: copper wire
5) Horizontal cones structure.
1. Application:
Extremely Fine Wire Drawing Machine is used for drawing copper wires 0.05-0.15mm.
2.Parameters:
| Machine Model | SY-24VD/B |
| Machines structure | Horizontal , capstans arrayed horizontally |
| Power Control | Dual Inverter Control |
| Inlet Dia. (mm) | Φ0.12~Φ0.5mm |
| Outlet Dia. (mm) | Φ0.05~Φ0.15mm |
| Max Die No. | 24 |
| Max wire Speed (m/min) | 1800m/min |
| Frame Structure | Ironed Cast |

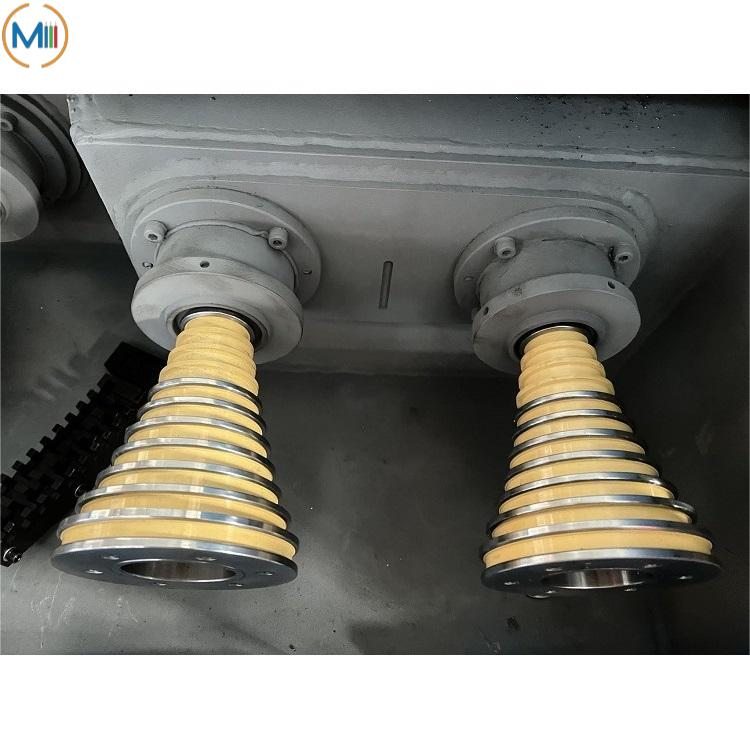

| Drawing Capstan | Ceramic Capstan |
| Area Reduction Ratio of Machine | 10.5% |
| Main Motor Power | 5.5kw |
| Take up Motor Power | 2.2kw |
| Max Capstan Dia. | Φ130mm |
| Final Capstan Dia. | Φ130mm |
| Transmission Type | By Flat Belt |

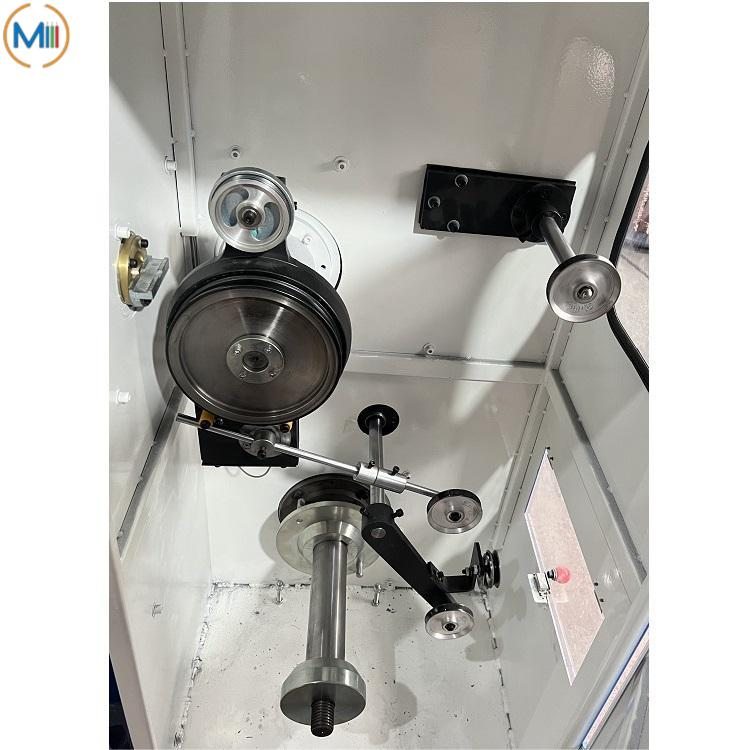

| Take Up Bobbin Size | 250 Bobbin |
| Traversing Type | Synchronous Motor + Belt |
| Take Up Type | Shaft Type |
| Tension Control | Weight Balance Type |
| Lubrication Type | Spray Type |
| Brake | Magnetic Brake |
| Weight | Approx.1800kg |
3.Advantages:
1).Save space, easily operation.
2).Smaller mechanical reduction ratio to reduce the wire break frequency.
3).Ceramic coated capstan can keep long life.
4).Ironed cast body without shock heavily.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
