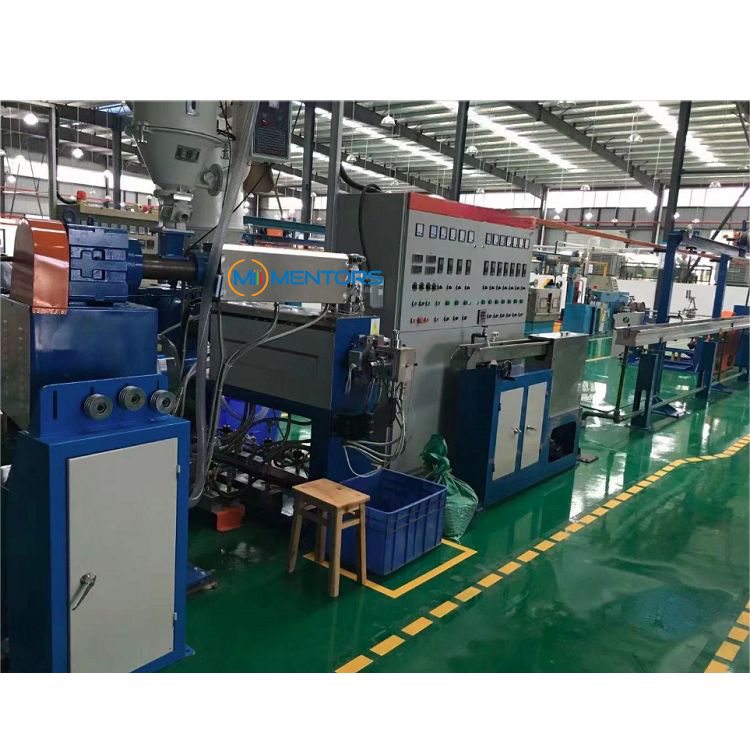

Electrical Wire Insulation Machine Pvc Xlpe Pe
This machine is suitable for the extrusion of PVC, PE, and other materials, used as insulation for solar cables.
Description
1. Application:
This machine is suitable for the extrusion of PVC, PE, and other materials, used as insulation for solar cables, and can withstand high ultraviolet radiation, high temperature, and weather resistance.
2. Parameters:
| Model | SY-65 |
| Pay-off type | Double shaft |
| Pay-off bobbin size(mm) | PN400-630 |
| Screw diameter(mm) | 65 |
| Screw L/D ratio | 26:1 |
| Extrusion capacity(kg/h) | 160 |
| Main machine motor power | 25HP |
| Wire diameter(mm) | 0.8-10.0 |
| Temperature control | 5 sections |
| Cooling system | Single/double layer U type |
| Traction power | 5HP |
| Store cable type | horizontal |
| Store cable length(mm) | 250 |
| Line speed(m/min) | MAX500 |
| Take-up type | Shaft /Binding |
| Take-up bobbin size | PN500-630 |
| Take-up power | 4HP |
3. Advantages:

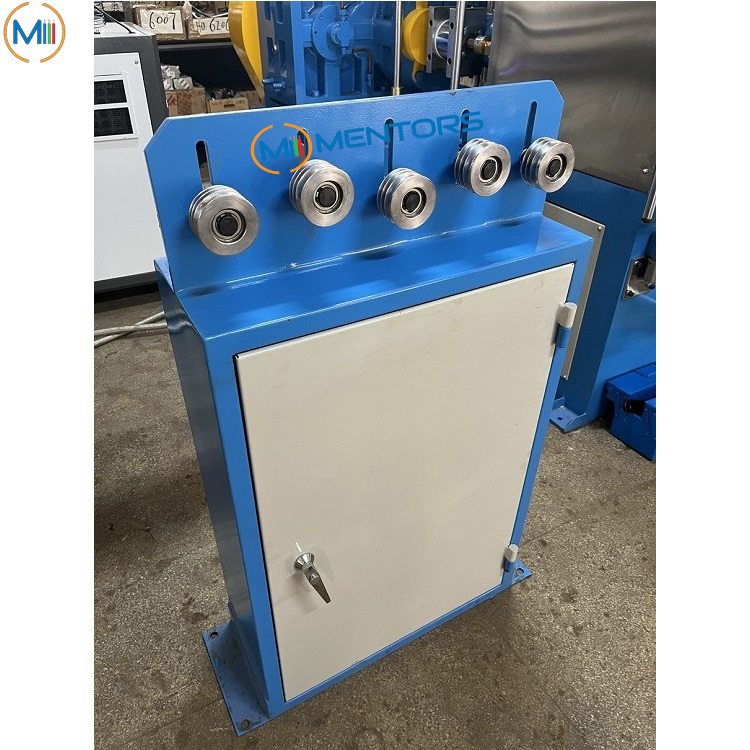

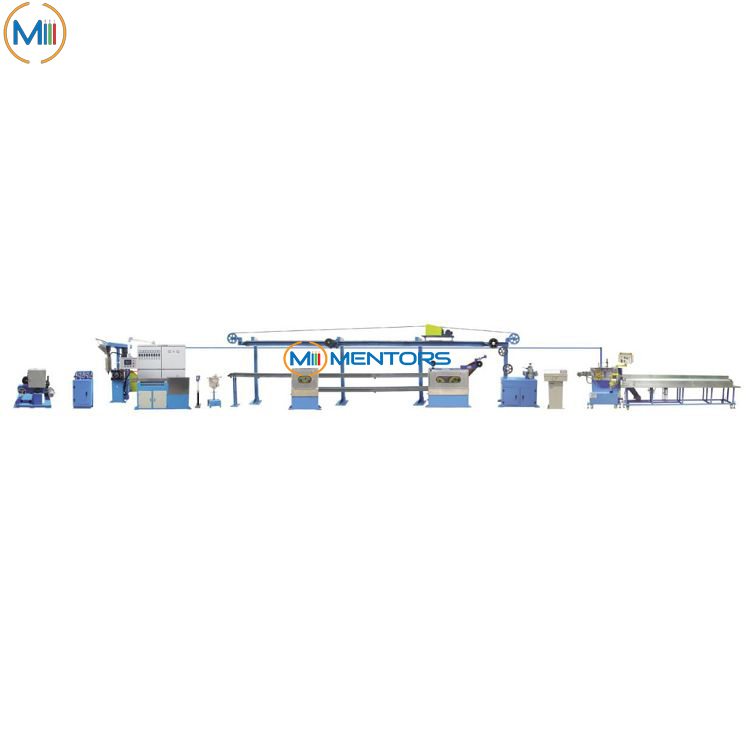

1. This machine is composed of a double-head pay-off frame, straightening machine, main machine, main control cabinet, water tank, wire storage rack, traction machine, wire cutting machine, etc.
2. Frequency conversion speed regulation + PLC full control, easy to operate, and high output.
3. Online control of insulation thickness as well as sheath thickness in the process results in significant material savings.
