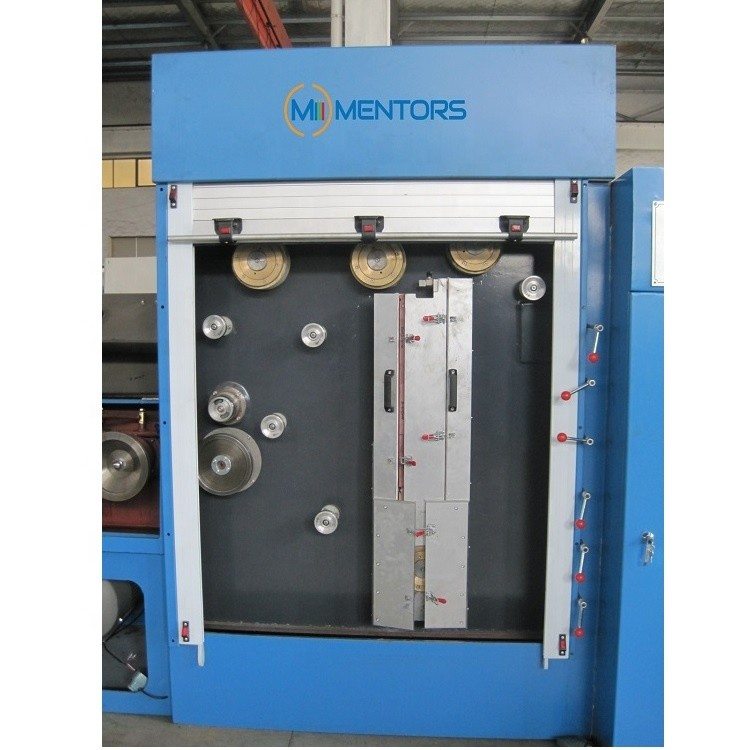

Electric Wire Drawing Machine body is welded structure by the steel plate with annealing progress.
There are six or ten layers for drawing capstan with horizontal structure.
Main feature:
1) Max.Dies Qty: 23
2) Outlet wire size: 0.15-0.32mm
3) Max speed: 1400m/min
4) Dual Inverter Control
1. Application:

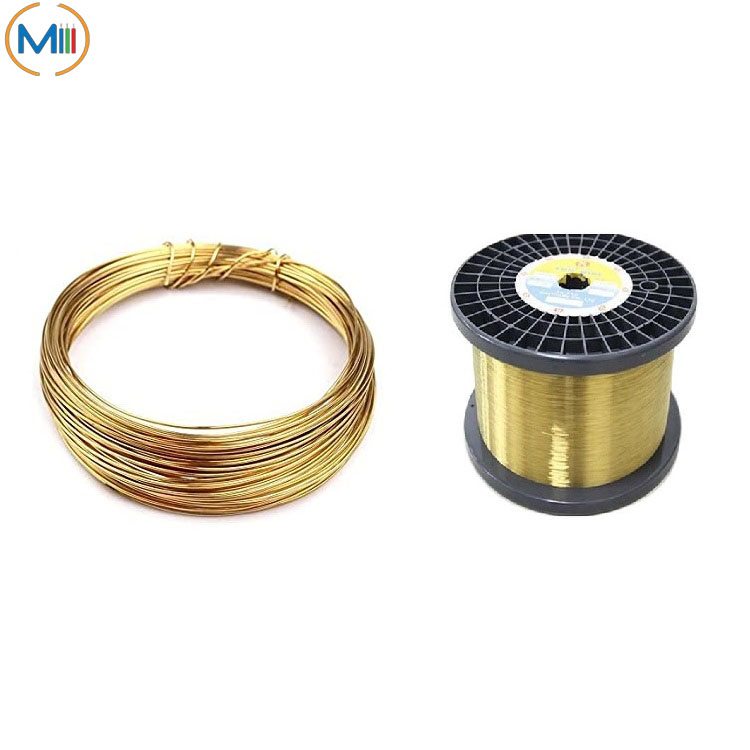

Electric Wire Drawing Machine is used for drawing raw materials: H60-H65(CuZn40-CuZn35).
2.Parameters:
| Machine type | SY-DT23 |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 23 |
| Inlet diameter | 0.5- 1.2mm |
| Out diameter | 0.15- 0.32mm |
| Drawing line speed | 1400m/min |
| Slip ratio of m/c | 15% |
| Lubrication consumption | 40 liters / min |
| Max. Dia Of drawing capstan | 194mm |
3.Advantages:
1. The special design of the final die holder ensures that the straightness of the finished wire meets the EDM standard.
2. Drawing capstan use anti-wearing raw material, long working life.
3. Drawing parts using sprayed lubrication type.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
