1. Application:

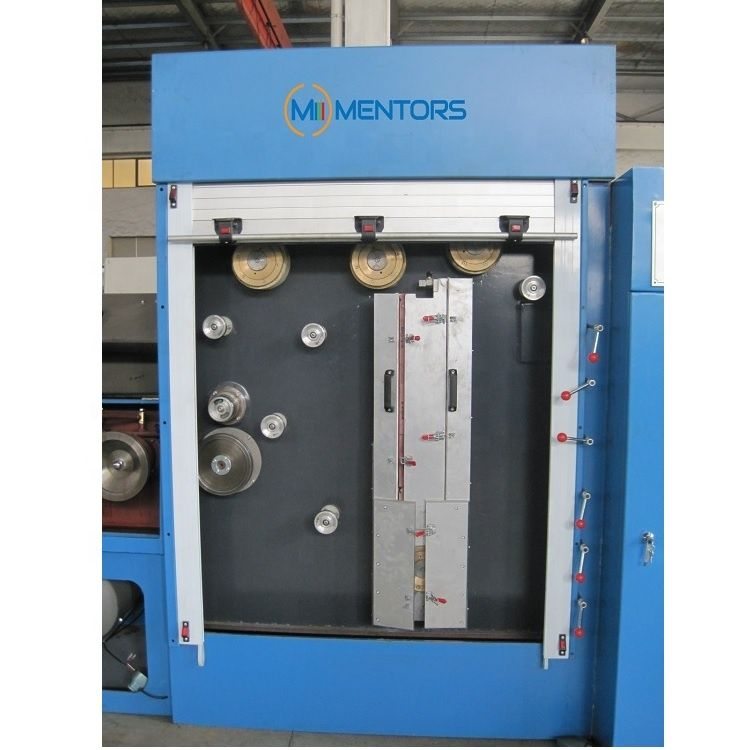

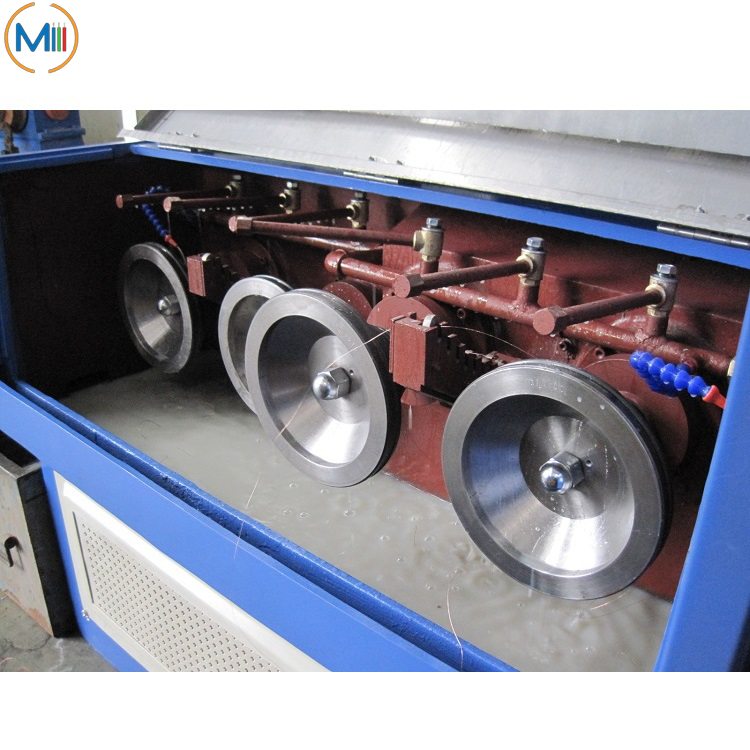

EDM Wire Drawing Machine is special used for drawing and annealing copper or brass wire to 0.07-0.20 mm.
Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.
2.Parameters:
| Machine type | SY-DT24.B |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 24 |
| Inlet diameter | Ø 0.5- 0.8 mm |
| Out diameter | Ø 0.07- 0.20 mm |
| Max.Drawing line speed | 1800m/min |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |
| Capstan | Ceramic plasma capstan |
| Main motor | 15kw |
| Spooler motor | 4kw |
| Annealing voltage | DC 0-60V |
| Annealing current | DC 250A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 300mm OR according to customers |
| Transmission type | By flat belts |
| Spooler control | PID Synchronous spooler |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
| Lubrication type | Spray type |
| Brake | Magnetic brake |
| Power source | 380v 50/60 HZ or customized |
3.Advantages:
1.Straightening device of outlet wire ensure the EDM wire quality.
2.Double drivers ensure precisely tension and minimum ratio of the wire.
3.Energy saving and excellent wire surface quality.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
