The four dies before the outlet die can be adjusted for straightness and the final outlet die holder is three-dimensional adjustable,it can be easy to adjusted and has a good stability.
Main feature:
1) Max.Dies Qty: 21
2) Outlet wire size: 0.15-0.32 mm
3) Max speed: 1200 m/min
4) Dual Inverter Control
1. Application:
EDM Brass Wire Drawing Machine is used for drawing and annealing brass wire with special design for final die holder.
2.Parameters:
| Machine type | SY-DT21 |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 21 |
| Inlet diameter | Ø 0.5- 1.2 mm |
| Out diameter | Ø 0.15- 0.32 mm |
| Drawing line speed | 1200 m/min |
| Annealing voltage | DC 0-70 V |
| Annealing current | DC 100 A |
| Spool bobbin size | P3-P15 |
3.Advantages:

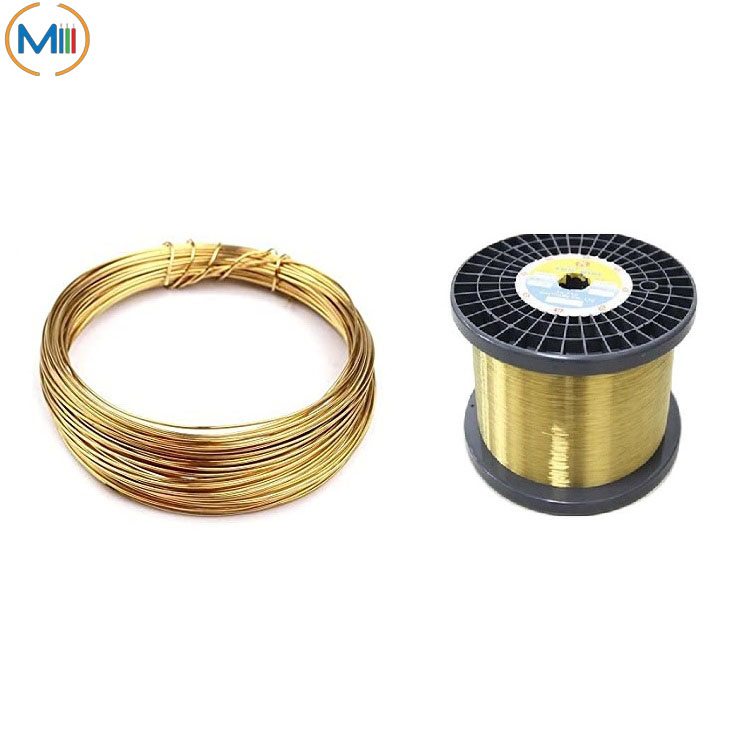

1. The special design of the final die holder ensures that the straightness of the finished wire meets the EDM standard.

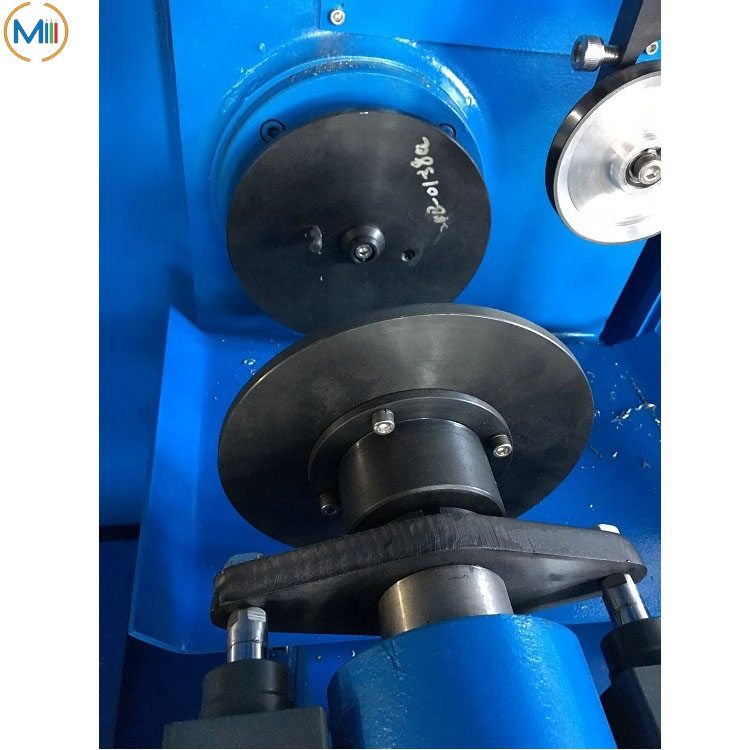

2. There are two belt pulleys on the motor, which are passed to two drawing capstans, so it can reduce the belt slipping and increase the drawing range.
3. Adopting shaft type take-up，spools loose and clamping easily.
4. EDM Brass Wire Drawing Machine uses automatic traversing system.
4.Delivery time: 30-45 working days
5.After-sell service:
Engineer will be dispatched at needed.
The buyer provides engineer’s round trip flight tickets, board and lodging, the security as well as each person of daily wage.
6.Guarantee: 12 months since shipping date(exclude easily wearing part)
