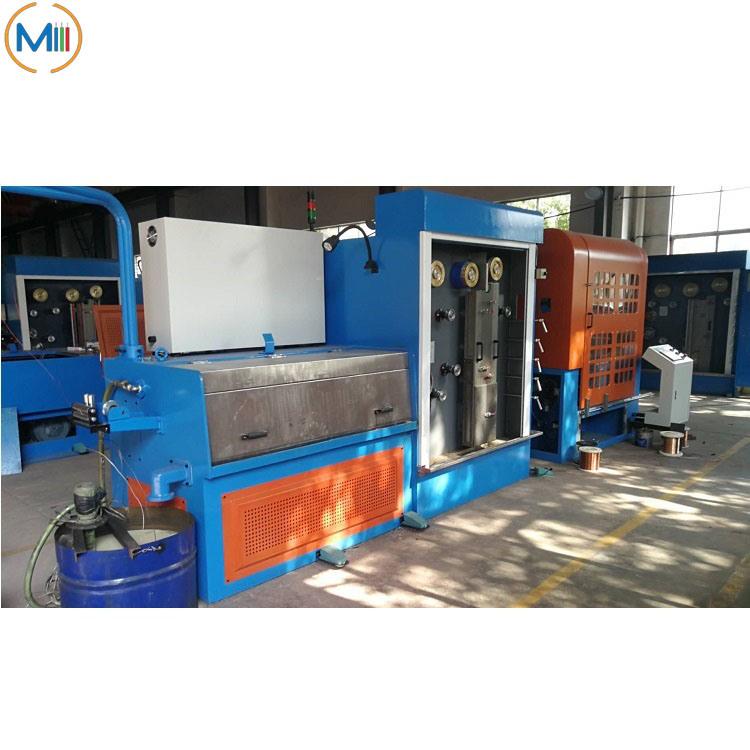

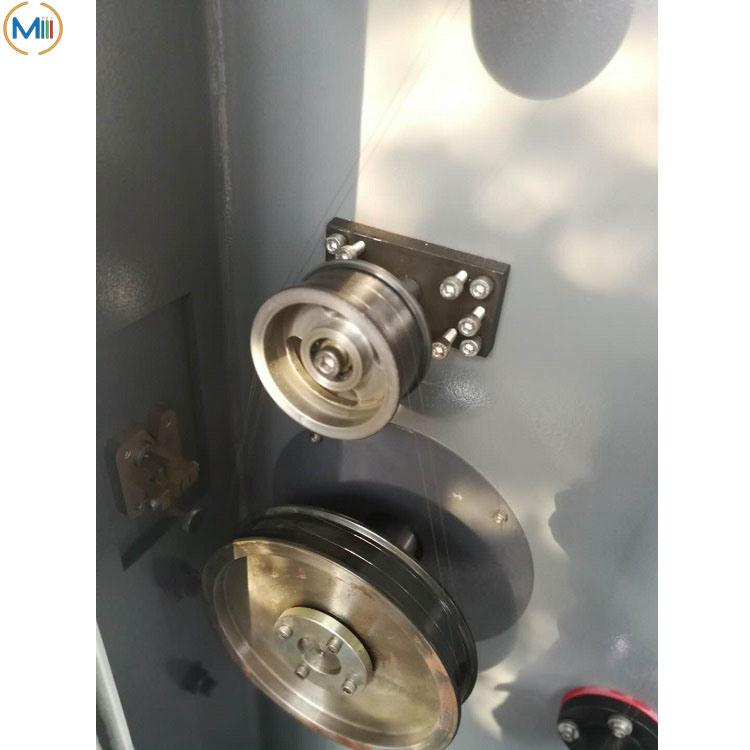

Dual Wire Fine Wire Drawing Machine
Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.
Main feature:
1) Max.Dies Qty: 24
2) Outlet wire size: 0.12-0.35mm
3) Max speed: 1800m/min
4) Dual Inverter Control
Description
1. Application:
Dual Wire Fine Wire Drawing Machine is used for drawing and annealing copper wire with a wire range of 0.12-0.35mm, followed by single or dual spool take-up.
2. Parameters:
| Machine type | SY-DT24.2A |
| Inverter control | Dual inverter control |
| Drawing dies No./max. | 24×2 |
| Inlet diameter | Ø 0.5- 1.0mm |
| Out diameter | Ø0.12- 0.35mm |
| Drawing line speed | 1800mpm/max |
| Slip ratio of m/c | 13% |
| Fix speed capstan slip ratio | 8% |
| Frame | Welded by steel plate |

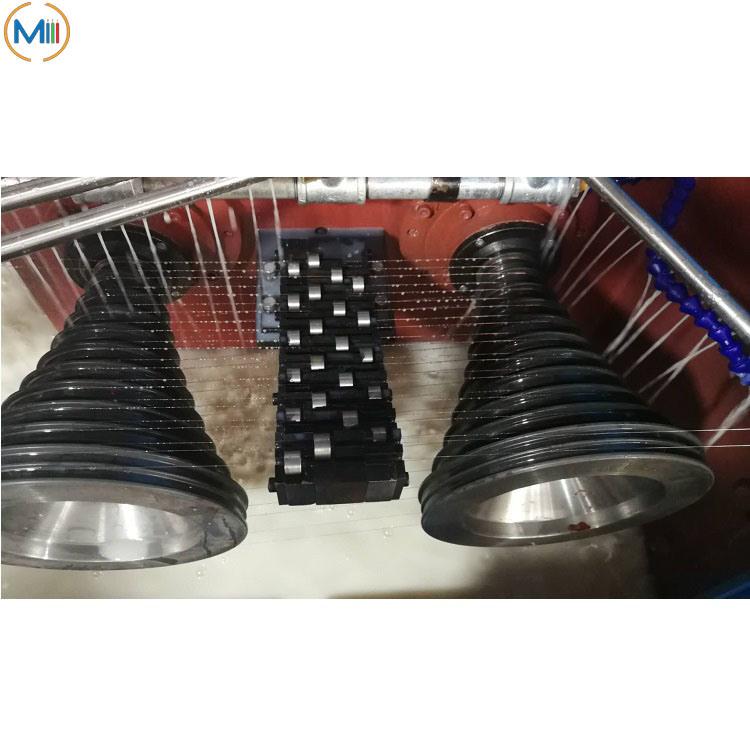

| Capstan | Ceramic plasma capstan |
| Main motor | 18.5 kw |
| Spooler motor | 4kw |
| Annealing voltage | DC 0-60V |
| Annealing current | DC 300A |
| Protection type | Steam or nitrogen |
| Spool bobbin size | Ø 300mm or customization |
| Transmission type | By timing belts |
| Spooler control | PID Synchronous spooler |
| Detecting device | Weight balance by swing arm |
| Tension control | Weight balance type |
| Lubrication type | Spray type |
| Brake | Magnetic brake |
| Power source | 380v 50/60 HZ or customization |
3. Advantages:
(1) Double drivers ensure precise tension and a minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversified products manufacturer.
(5) Two wires, energy-saving, and space-saving high efficiency.
4. The main scope of supply:
One set of Copper Drawing Machine, including but not limited to the followings :
1. Pay-off stand: 2 sets.
2. Drawing with annealing unit: 1 set.
3. Safety cover: 1 set.
4. Electrical control system: 1 set.
5. Steam generator: 1 set.
6. Extra free spare parts: Nickel belt 8PCS, Drying ceramic mold 4PCS
5. Delivery time: 30-45 working days
6. After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage.
7. Guarantee: 12 months since shipping date(exclude easily wearing part)
