DT800 Double Twist Bunching Machine
This type is used for twisting copper wire more than 7 wires.
Main Feature:
1.Types:800
2.Max speed:1200-2400r/min
3.Raw material:copper wire
Description
1.Application:
This type machine is mainly used for twisting copper wire more than 7 wires.
2.Parameters:
| Item | Data |
| Equipment model | DT800 |
| Maximum speed | 1200RPM or2400TPM |

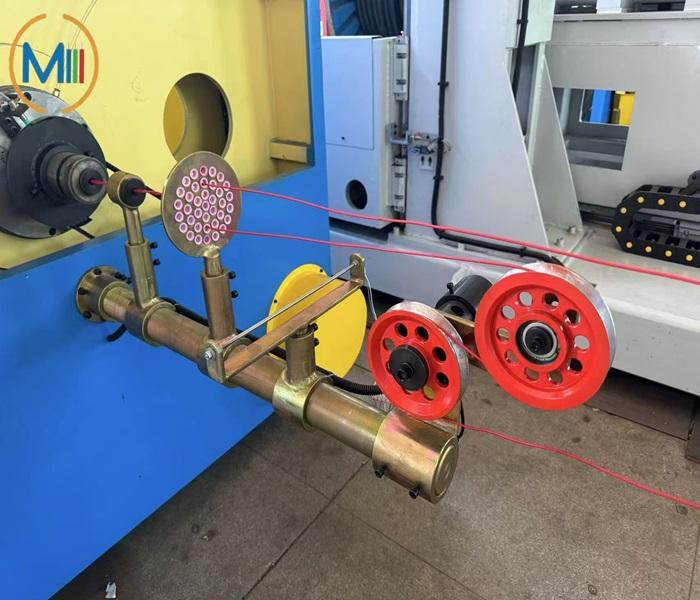

| Inlet diameter | 0.4～1.0mmcopper wire； 0.5～3mmInsulated core wire |
| Twisting area | 1.52～352mm (Suitable for twisting more than seven copper wires) |
| Core wire twisting diameter | MAX Ф15mm |
| Twist pitch | 25~130mm Electronic control settings |
| Twist speed | MAX 160M/min According to the twist pitch |
| Take-up bobbin | Diameter φ800×Outer width 600mm×shaft hole φ80mm or φ127mm |
| Max. Loading weight | MAX700kg |
| Main engine speed regulation | Adopt 15KW inverter, which can adjust the speed steplessly |
| Main motor power | 15KW three-phase AC motor |
| Traversing | Adopt 40 screw rod bearing traversing device, the traversing space and width can be adjusted arbitrarily |
| Take-up motor power | 4KW three-phase AC motor |
| Take-up speed regulation | Adopt 4KW inverter, which can be stepless speed regulation |
| Operation mode | Human-machine interface touch screen + PLC module |
| Twist direction | Both left (S) and right (Z) are available |
| Shaft bearing | Use Japanese NSK or German imported bearings |
| Shaft lubrication | Use oil cup (grease nipple) for lubrication |
| Brake | Equipped with electromagnetic brake for the main shaft, adjusted to the synchronous parking state, can reduce wire breakage and loose wire. |
| Automatic shutdown | When the wire is broken outside the machine, it can automatically stop and send a signal |
| Full line shutdown | When the wire is twisted to the set length, it can automatically stop and send a signal |
| Shaft height | 900mm |
| Occupied area | (L×W×H)4700mm×1800mm×1900mmIncluding wire feed rack |
| Net weight of machine | About 5000kg |
3.Advantages:

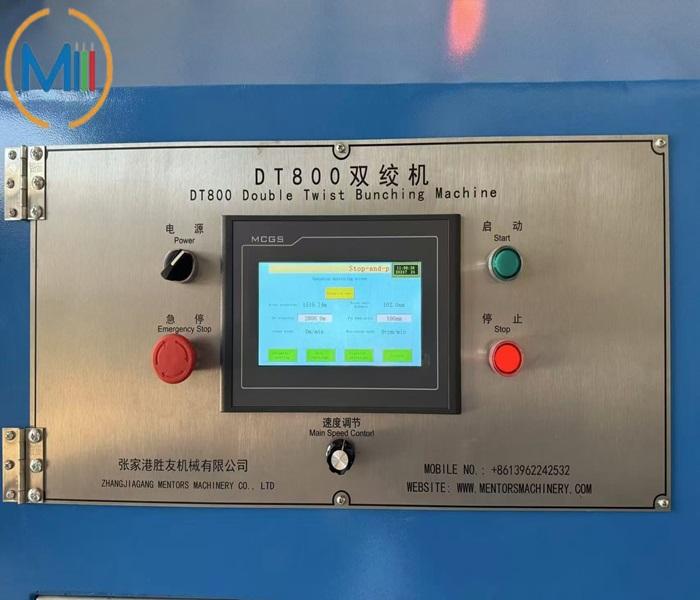

1).The machine has a touch screen ,which is easy to operate.
2).Brake speed setting is used to set the spindle in normal operation to stop and decelerate to a reasonable speed before braking, in order to protect the equipment and extend the service life.
3).The main shaft bearings are imported from Japan NSK or Germany.
4).Traversing is arranged by 40 smooth rod bearing, and the traversing distance and width can be adjusted arbitrarily.
4.Delivery time: 45 working days
5.After-sell service:
The engineer will be dispatched as needed.
The buyer provides the engineer’s round-trip flight tickets, board, lodging, and security as well as each person of daily wage
6.Guarantee:12 months since shipping date(exclude easily wearing part)
